2 tubes angle connector with nut cavities and visible union

Products

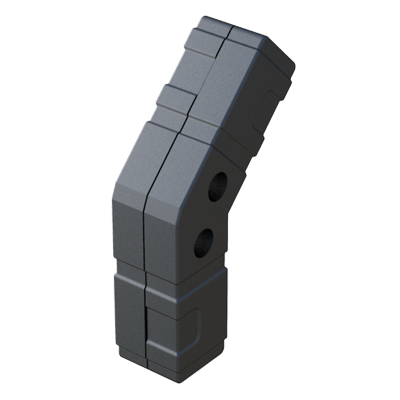

Our connector has been designed for square tubes. It has a 135º angle.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	For Tube	Tube Thickness	L	Angle (A)	Nut Spot (SW) / Metric (M)								More Info.

02300400179

25 x 25

1,50

31,00

135°

SW 13

If you are interested in our family THCLV, you may be interested in these families as well:

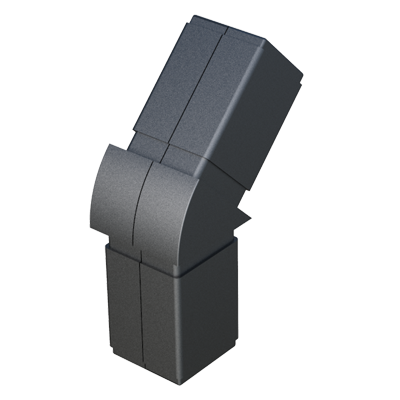

Our connector has been designed to connect 2 square tubes. It has a 135º angle.

LE end caps are designed to ensure <b>secure fastening</b>, <b>easy assembly</b>, and a <b>high-quality finish</b> thanks to the rounded shape of their head. They are used to seal tubes and/or various openings that must withstand mechanical stress and are <b><i>recommended as end caps for chairs and/or furniture</b></i>.
<br>
For use as sliding stoppers and to facilitate easy assembly in tubes with thicker walls, we recommend chamfering the tube's inner diameter (approx. 0.3 - 0.5 x 60°).
<br>
<b>Special colors</b>, <b>company logos</b>, and production using <b>TPE material</b> (non-slip, sound-reducing, and resistant to a wider temperature range) are available upon request—please contact us.
<br>
Due to technical production reasons, a residual gate may exceed the L dimension. Depending on the selected item, the surface finish may vary between polished and textured.
<br>

Our connector has been designed for square tubes. It has a 135º angle.

The THCLP <b>articulated</b> connector has been designed to connect <b>2 square tubes</b>.
The <b>articulation range</b>, as well as the type of rotation and locking, vary between each reference and can be consulted in the <b>'Angle' column</b>. <br>
The <b>Nylon</b> (PA6) used is highly resistant and is characterized by a very long life and great resistance to aging. According to the reference, they have a <b>fiberglass reinforcement</b> which provides greater rigidity, dimensional and thermal stability.

<br><br> * <i><b>Type 1</b></i>: Free rotation movement. <br> * <i><b>Type 2</b></i>: Rotation movement with 15º internal teeth. <br> * <i><b>Type 3</b></i>: Rotational movement with internal stop at 0º, 90º, 180º positions. <br> * <i><b>Type 4</b></i>: Rotational movement with a stop at 180º. <br><br>

Please consult our sales office if the measurement or any other product specification is not within our standard program.<br>
