Our connector for square tubes has been designed with 2 cavities for hexagonal nuts. We can supply the part without nuts, or with a nut up, or one nut down, or with the 2 nuts. Please consult us.

Download technical information
Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

LJEA
LJEA

Reference
For Tube
Tube Thickness
L
E / H
Nut Spot (SW) / Metric (M)



More
Info.
00300401048 18 x 18 1,50 42,00 30,00 / 10,00 SW 13
02300400113 20 x 20 1,00 43,00 30,00 / 10,00 SW 13
02300400117 20 x 20 1,00 30,00 12,00 SW 13
02300400114 20 x 20 1,50 43,00 30,00 / 12,00 SW 13
00300401049 20 x 20 1,50 42,00 32,00 / 12,00 SW 10
02300400115 20 x 20 1,50 42,00 32,00 / 12,00 SW 10
00300401050 20 x 20 1,50 42,00 30,00 / 10,00 SW 13
00300401051 20 x 20 2,00 41,50 30,00 / 10,00 SW 13
00300401052 22 x 22 1,50 41,00 32,00 / 12,00 SW 10
00300401053 22 x 22 1,50 42,00 30,00 / 10,00 SW 13
00300401054 25 x 25 1,50 42,00 30,00 / 10,00 SW 13
02300400259 25 x 25 1,50 42,00 30,00 / 10,00 SW 17
00300401056 25 x 25 2,00 42,00 29,00 / 9,50 SW 13
00300401057 30 x 30 1,50 42,00 30,00 / 10,00 SW 17
00300401058 30 x 30 2,00 41,00 30,00 / 10,00 SW 13
00300401059 30 x 30 2,00 41,00 30,00 / 10,00 SW 17
00300401060 35 x 35 2,00 42,00 30,00 / 10,00 SW 17
00300401061 40 x 40 1,20 40,00 30,00 / 10,00 SW 17
02300400112 40 x 40 1,20 40,00 28,00 / 8,00 SW 19
00300401062 40 x 40 2,00 42,00 30,00 / 10,00 SW 17
02300400110 40 x 40 3,00 42,00 30,00 / 11,00 SW 13
02300400111 40 x 40 3,00 41,00 30,00 / 10,00 SW 17
00300401063 45 x 45 1,50 40,00 31,00 / 11,00 SW 17

If you are interested in our family LJEA, you may be interested in these families as well:

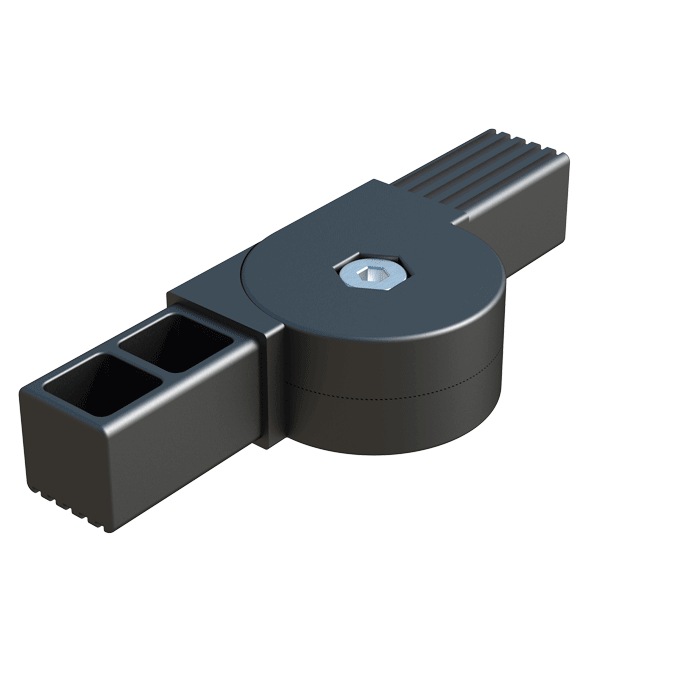

The THCLP <b>articulated</b> connector has been designed to connect <b>2 square tubes</b>. The <b>articulation range</b>, as well as the type of rotation and locking, vary between each reference and can be consulted in the <b>'Angle' column</b>. <br> The <b>Nylon</b> (PA6) used is highly resistant and is characterized by a very long life and great resistance to aging. According to the reference, they have a <b>fiberglass reinforcement</b> which provides greater rigidity, dimensional and thermal stability. <br><br> * <i><b>Type 1</b></i>: Free rotation movement. <br> * <i><b>Type 2</b></i>: Rotation movement with 15º internal teeth. <br> * <i><b>Type 3</b></i>: Rotational movement with internal stop at 0º, 90º, 180º positions. <br> * <i><b>Type 4</b></i>: Rotational movement with a stop at 180º. <br><br> Please consult our sales office if the measurement or any other product specification is not within our standard program.<br>   Our hinge 3-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or from 0º to 180º, or from 0º to 60º, or from 45º to 195º, depending on the reference.   Our hinge 4-way connector has been designed for square tubes. It has an angle which goes from 45º to 200º.
