2 tubes straight connector with a cavity for metal core and visible union SOAAD


Description and features

Our straight connector has been designed in order to connect 2 oval tubes. It is supplied with or without internal metal core.

Technical documentation and compliance

  • Drawing PDF
  • UL94
  • IP
  • RoHS
  • Measures expressed inMillimeters
  • Video

Product images and technical drawings

Product view

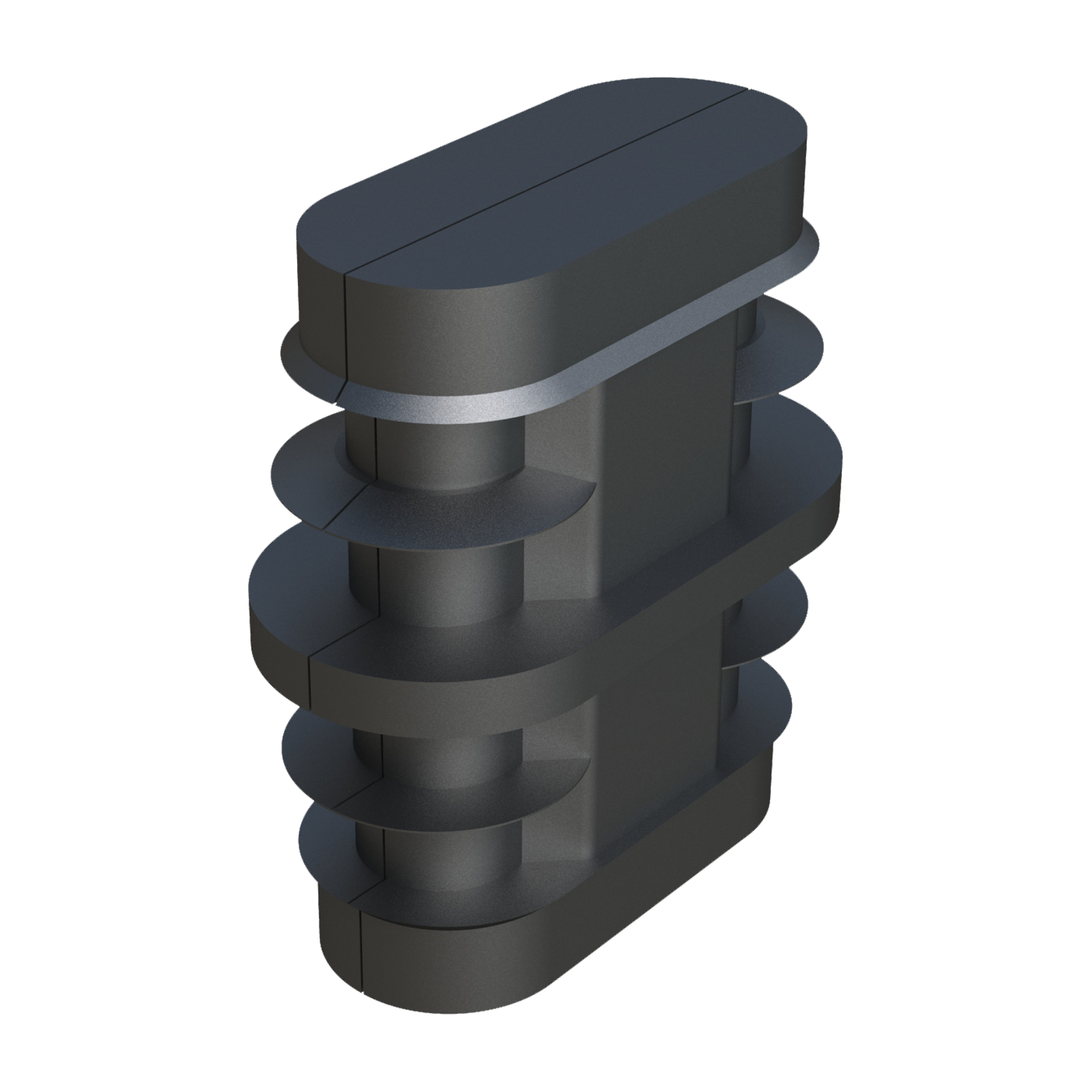

2 tubes straight connector with a cavity for metal core and visible union SOAAD - Product view

Technical drawing

2 tubes straight connector with a cavity for metal core and visible union SOAAD - Technical drawing

Video


Part numbers and dimensions of 2 tubes straight connector with a cavity for metal core and visible union

Reference
For Tube
Tube Thickness
L
H



More
Info.
02300400240 40 x 20 1,50 37,00 5,00
02300400261 40 x 20 2,00 35,00 5,00
