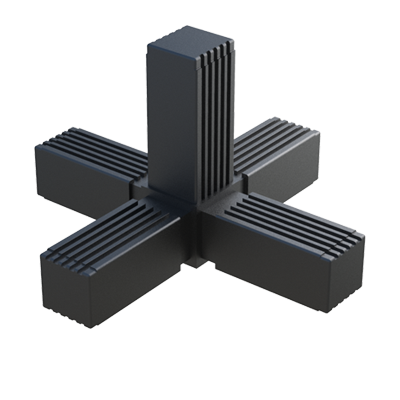

Our 5-way connector has been designed for square tubes.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
L
H



More
Info.
02300400229 13,50 x 13,50 1,25 20,00 13,00
02300900178 20 x 20 1,50 32,00 20,00
02300400230 25 x 25 1,50 49,00 25,00
02300900179 25 x 25 2,00 40,00 25,00
02300900165 30 x 30 1,50 50,00 30,00
02300900172 40 x 40 2,00 55,00 40,00

If you are interested in our family THCAK, you may be interested in these families as well:

Our 5-way connector has been designed for square tubes. It is supplied without internal metal core or with the internal core in steel, stainless steel, or in zinc coated steel.   Our square ribbed tube insert has been designed for getting a good finishing part. It is also available for rectangular tubes: LFS.   Our 6-way connector has been designed for square tubes. It is supplied without internal core, or with an internal core in steel, stainless steel 1.4301 (AISI 304) or in zinc coated steel.   Our LE ribbed insert for square tubes, made of LDPE <b>(Low Density Polyethylene)</b> material, offer quick assembly and are available for a wide range of sizes.<br><br>

Depending on the reference, the design of the ribs can be completely continuous around the body of the article itself or present interruptions. These ribs improve the fixation of the tip inside the tube. For applications in which the pieces are subject to friction forces with the ground, we recommend references with a head thickness (H dimension) greater than 4.00 mm.<br><br>

Available in <b>Black, White and Grey</b>. Consult our commercial department if you are looking for a different size, design or color.
