Our round adjustable foot has a steel cover. If you need it with an hexagonal nut for an easier assembly, see our family LHDE. If you want the part with movement or tilting, please visit our family MFDD.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Metric Thread (M)
L
D
H



More
Info.
00900101146 M6 13,00 19,00 7,00
00900101153 M8 20,10 24,00 10,50
00900101143 M8 19,60 29,00 11,00
00900101144 M8 20,20 33,00 11,60
00900101147 M8 26,00 38,00 13,00
00900101148 M10 20,30 24,00 10,50
00900101149 M10 20,10 29,00 11,00
00900101150 M10 20,00 33,20 11,50
00900101151 M10 25,00 38,00 13,00
00900101152 M10 31,50 49,70 15,00
00900101145 M12 35,50 50,00 15,50

If you are interested in our family MNI, you may be interested in these families as well:

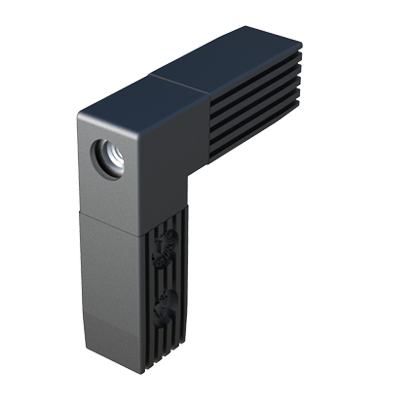

Our elbow connector has been designed for square tubes. It is supplied without internal core, with an internal core in steel, or in zinc coated steel. It has a thread of M8 or M10, depending on the reference.
