The SUX leveler is manufactured with a base in PP (polypropylene), a threaded stud in ZCS (zinc-plated steel), and a trim plate in SS (stainless steel), which provides an impeccable finish. At the end of the stud, there is a slot for an Allen key, allowing it to be adjusted and leveled from the top.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	Metric Thread (M)	L	D	H									More Info.

03900200050

M8

18,00

33,00

11,50

If you are interested in our family SUX, you may be interested in these families as well:

<p>Our <b>AKAAG levelling foot</b> features a <b>PA66</b> base, a <b>ZCS (zinc-plated steel)</b> thread and an <b>A2 stainless steel plate</b>, providing an aesthetic finish and additional protection for the contact surface.</p>

<p>Its design allows adjustment and levelling from different access points. The stud can be adjusted using an <b>open-end wrench</b> at its base or with an <b>Allen key</b> from the top, facilitating installation and levelling operations.</p>

<p>· <b>Base material:</b> PA66<br>
· <b>Thread material:</b> Zinc-plated steel (ZCS)<br>
· <b>Plate material:</b> A2 stainless steel<br>
· <b>Finish options:</b> Polished or brushed matte, depending on the reference</p>

<p><i>Available on request with a stainless steel thread or with a top slot for a flat-head screwdriver. For further information about these configurations, please contact our sales department.</i></p>

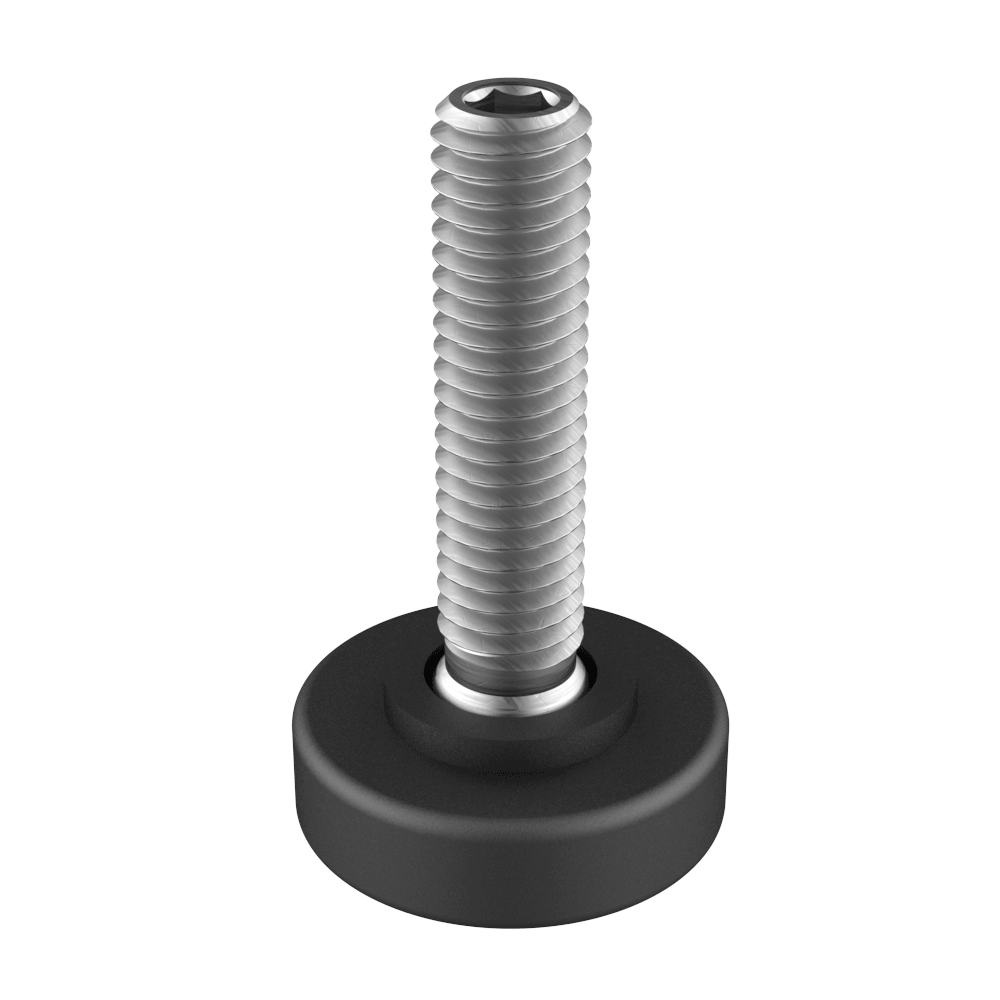

The SAX leveling foot with ball joint achieves a maximum inclination of 30º. The stud has a <b>housing for Allen key</b> which facilitates its accessibility and tights / levels when it is not possible to do it by the bottom of the base.

Our round tube insert has been designed with an hexagonal nut. The nut is inserted during the injection process. The part has an excellent finished and a good resistance. It is suitable for our adjustable feet, see our Adjustable feet section.
