Our adjustable foot has been designed to be at the same time a tube insert as well as an adjustable height. Also available for square tubes: LJL, round tubes: LJLR, for rectangular tubes: LJLZ or SLJLZ or LJLBZ, for oval tubes: LJLO, and for triangular tubes: LJLD.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube
Tube Thickness
L / l
Max height Adjustable (L1)
H / h
d / SW
Thread Type
Rounded Corner (R)



More
Info.
00300400494 30 x 30 1,00 to 2,00 23,00 / 40,60 10,00 5,50 / 6,00 28,60 / 27 A
00300400495 30 x 30 1,00 to 2,00 23,00 / 40,60 10,00 5,50 / 6,00 28,60 / 27 A R6
00300400497 30 x 30 1,00 to 2,00 22,00 / 42,00 10,00 6 00 / 5,00 28,60 / 27 B R6
00300400496 30 x 30 1,00 to 2,00 23,50 / 42,00 10,00 6,00 / 5,00 28,60 / 27 B
02300400796 30 x 30 1,00 to 2,00 24,60 / 47,00 26,00 5,00 / 8,00 28,00 / 27 A R6
02300400797 30 x 30 1,50 to 2,00 24,50 / 35,00 26,00 5,00 / 5,00 29,00 / 27 A R6
02300400770 30 x 30 1,50 to 2,00 24,00 / 42,00 14,00 5,00 / 5,00 28,00 / 27 A
02300400771 30 x 30 1,50 to 2,00 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400798 30 x 30 1,50 to 2,00 · / 55,00 26,00 5,00 / 5,00 · / 27 A R6
02300400772 35 x 35 1,50 to 2,00 32,50 / 55,00 26,00 5,00 / 5,00 32,50 / 27 A
02300400774 40 x 40 1,20 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400775 40 x 40 1,50 to 2,00 32,20 / 55,00 26,00 5,00 / 5,00 37,00 / 27 A
02300400776 40 x 40 3,00 32,50 / 55,00 26,00 5,00 / 5,00 34,00 / 27 A
02300400777 40 x 40 4,00 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400778 45 x 45 1,50 to 2,00 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400779 45 x 45 2,50 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400780 50 x 50 1,00 to 1,50 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400781 50 x 50 2,00 to 2,50 32,00 / 55,00 26,00 5,00 / 5,00 46,70 / 27 A
02300400782 50 x 50 3,00 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400783 50 x 50 4,00 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400784 55 x 55 1,00 to 2,00 32,00 / 55,00 26,00 5,00 / 5,00 53,00 / 27 A
02300400785 60 x 60 1,50 to 2,00 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400786 60 x 60 3,00 · / 55,00 26,00 5,00 / 5,00 · / 27 A
02300400787 60 x 60 3,50 · / 55,00 26,00 5,00 / 5,00 · / 27 A

If you are interested in our family LJLAA, you may be interested in these families as well:

The ribbed threaded inserts LJ for square tubes are offered in different designs and sizes. The metric nut, which is incorporated during the injection process, offers a strong fixation. The combination of the available sizes and materials (LDPE and PA6) will offer different properties, such as resistance to weight (we recommend carrying out tests through a sample order).   LL leveller with hexagonal base made in <b>LDPE material</b> (low density polyethylene), material with <i>excellent thermal and chemical resistance</i>.
<br><br>
* Possibility of special manufacturing (consult us prevously)
<br>
* <i><b>RAL Colors</b></i>.
<br>
* <i><b>Stud</b> in <b>stainless steel</b>.</i>
<br>

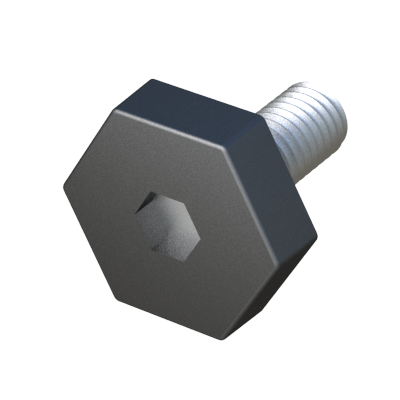

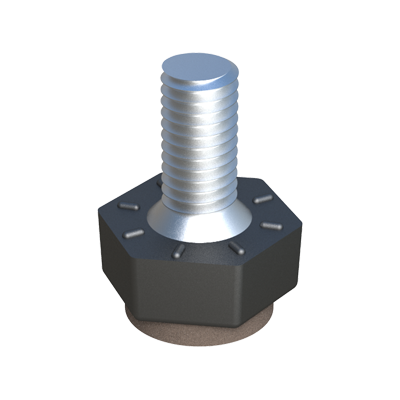

* <i><b>Special measures</b>.</i>   Our adjustable foot with hexagonal base has a groove in the base that allows fastening with an allen key (spanner).   Our adjustable foot has an hexagonal base.   It is available in LDPE or PA6, depending on the reference. With the ones manufactured in PELD the felt is overinjected, and with the ones in PA6 the felt is assembled after the injection process. It is also available without felt, see our family LL.
