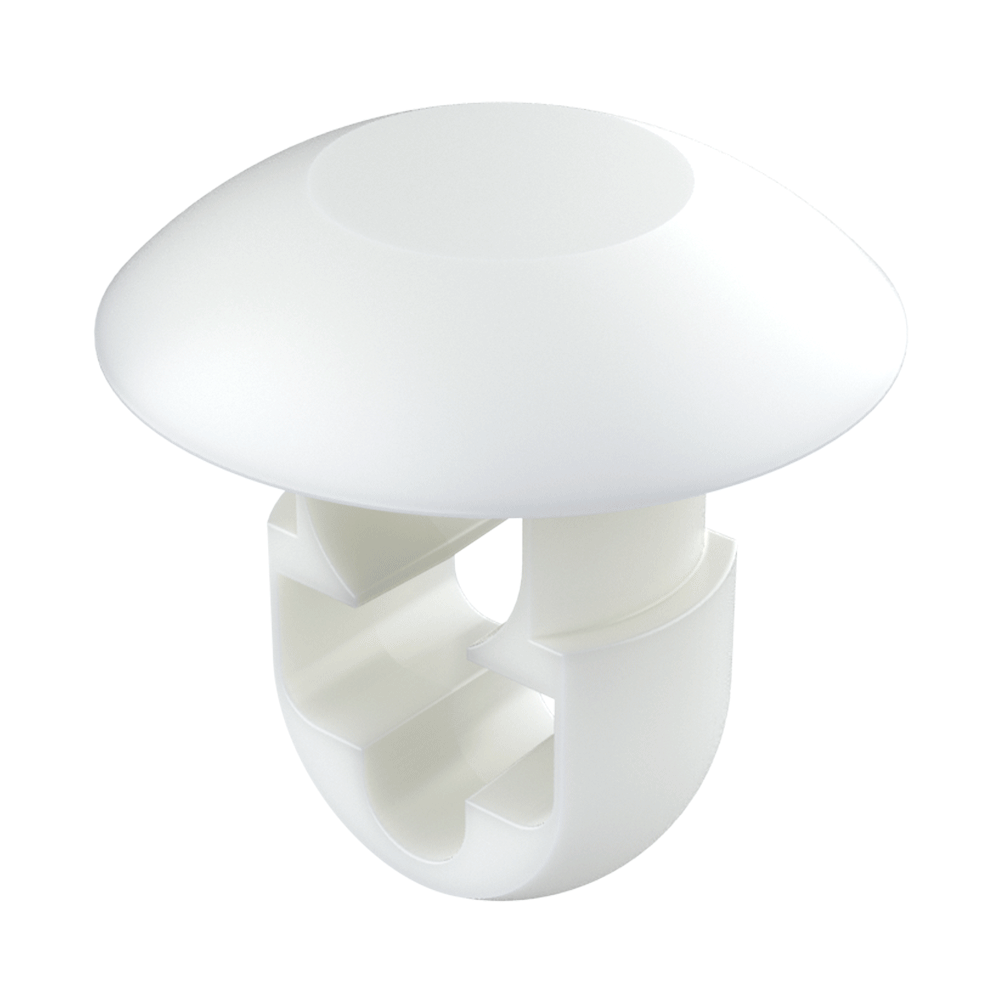

Our MCB Cable Tie Mount is designed for push-in installation into a pre-drilled hole and allows a cable tie to be inserted when both sides of the panel are accessible. Its design enables the cable tie to pass through the mount, providing a simple and secure solution for fastening cables, wires, tubes and similar components.

Manufactured from PA66, it is available in UL94 V2 and UL94 V0 versions, providing a reliable fastening solution for electrical, electronic and industrial applications.

· Material: PA66 (Polyamide 66) UL94 V2 and V0
· Colour: Natural and Black

Compatible with different ISC cable tie families, provided the cable tie width is 4.80 mm or less.


  Possible to get dyed colors

Drawing PDF:
UL94:   V2 / V0
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Panel hole size
Panel thickness
c x h
L
H
D



More
Info.
01301200078 6,35 3,20 4,80 x 2,20 8,30 2,00 10,70
