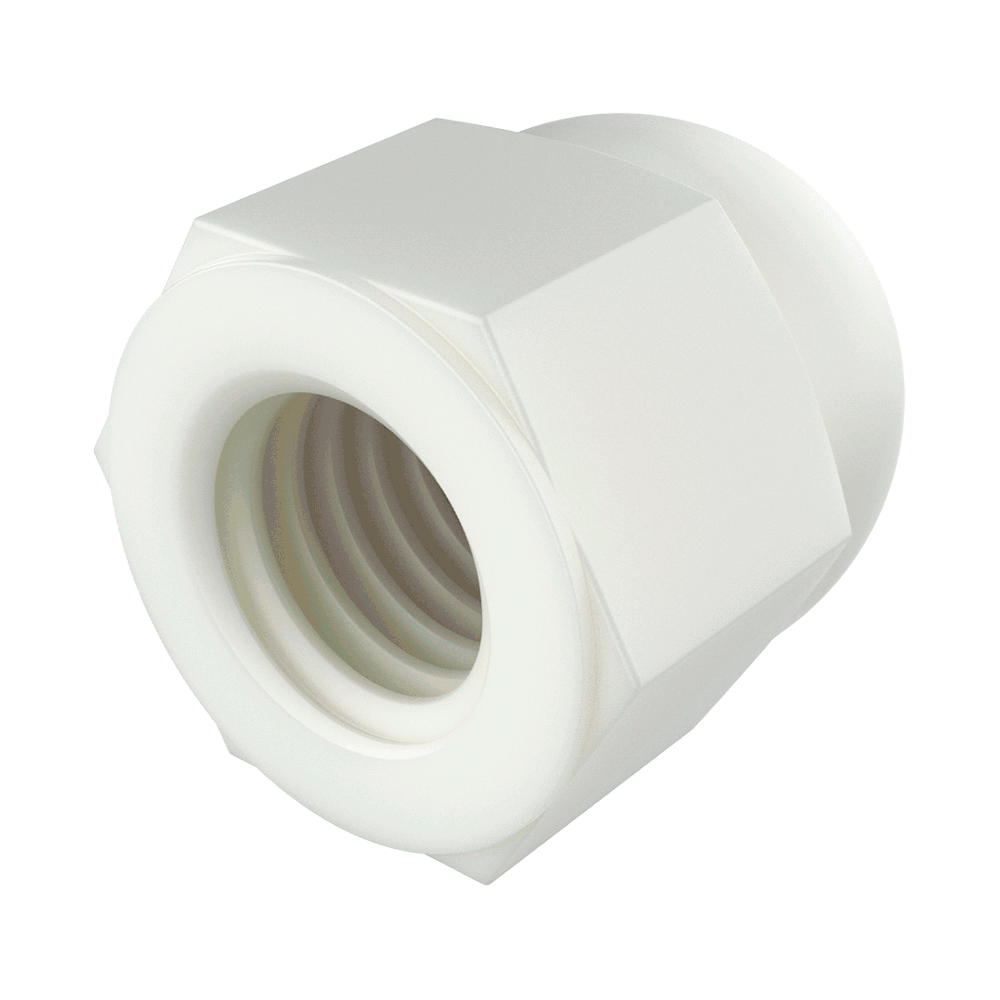

Our blind hexagonal nuts MTC, similar to DIN 1587, are available in PA66 and PA6GF30, offering lightweight, insulating, and resistant solutions for multiple industrial sectors.

Materials and Properties

  • PA66: engineering thermoplastic with high rigidity, good toughness, and excellent dimensional stability. Offers good resistance to wear, impact, and fatigue. Suitable for continuous use up to 100 °C. Resistant to oils, greases, hydrocarbons, and aliphatic solvents.
  • PA6GF30: PA6 reinforced with 30% glass fiber, significantly increasing its rigidity, mechanical and thermal resistance. Suitable for continuous use up to 130 °C. Excellent resistance to impact, thermal aging, and creep under load. Good chemical resistance to oils, greases, fuels, and many organic solvents.

Both materials provide electrical insulation and are suitable for technical applications requiring mechanical, thermal, and chemical resistance. Ideal for electrical and mechanical components, plastic fasteners, and installations in demanding industrial environments.


Measures expressed in: Millimeters


Reference
Metric Thread
F
H
L
*Locking
Similar DIN
Material
Standard colors
PDF
3D IGS
Samples
Request Price
Order
Select the part number

00100101119
M10 17,00 18,00 14,00   DIN 1587 PA66



[natural]

00100101119N
M10 17,00 18,00 14,00   DIN 1587 PA66



[black]
