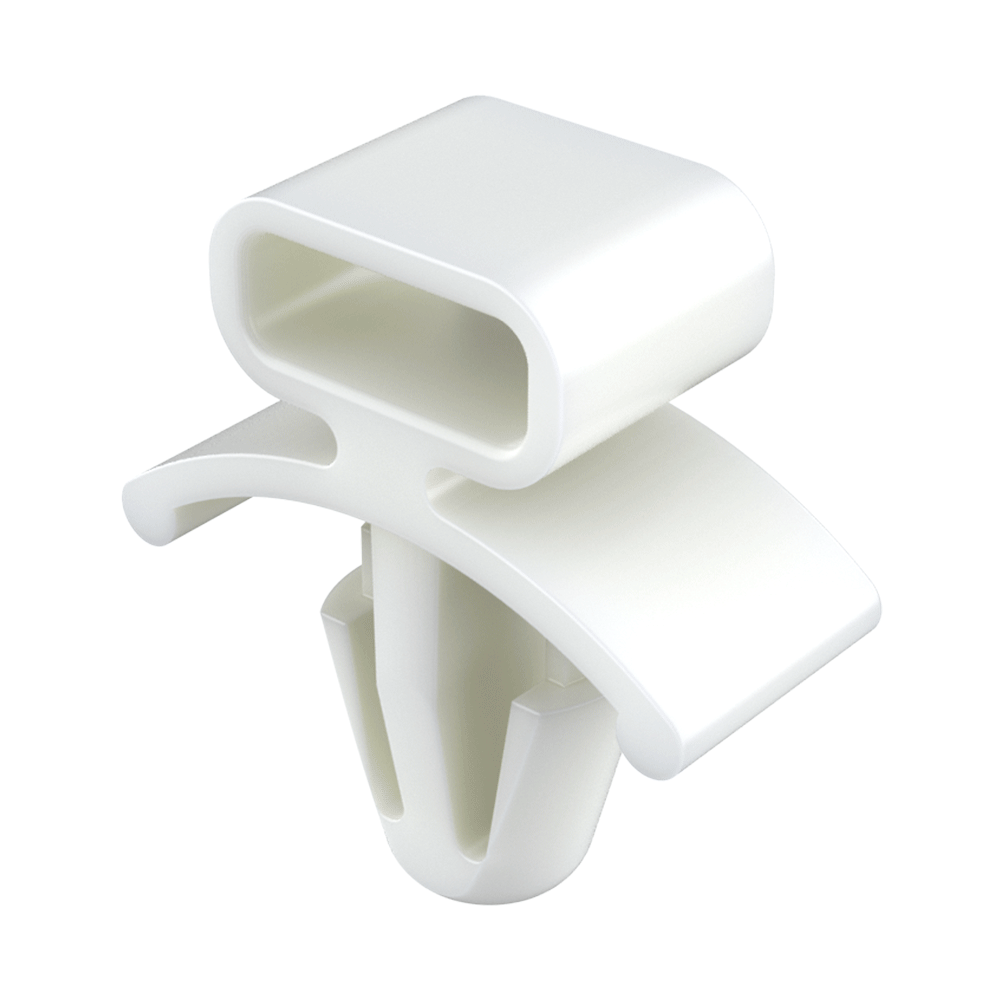

Our MBSPL cable tie holder is designed for push-in installation into a pre-drilled hole and accepts a cable tie for securing cables, wires, tubes and similar components. Its locking arrowhead clip provides secure retention where the rear side of the panel is inaccessible.

Manufactured from PA66, it is available in UL94 V2 and UL94 V0 versions. Each part number features a different geometry, although this does not affect its function or fastening performance.

· Material: PA66 (Polyamide 66) UL94 V2 and UL94 V0
· Colour: Natural and Black

Compatible with different ISC cable tie families, provided the cable tie width does not exceed the maximum specified for each part number.


  Possible to get dyed colors

Drawing PDF:
UL94:   V2 - V0
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Hole size
Panel thickness
c x h
H
C
B
Bidirectional



More
Info.
00101100265 8,50 3,20 6,50 x 2,00 5,90 17,50 12,00
01301200069 4,75 0,80 to 2,00 3,90 x 1,70 7,50 14,35 7,00
01301200070 5,30 0,80 to 2,00 5,00 x 1,00 7,20 14,20 7,10
01301200071 6,35 1,20 to 2,75 6,50 x 1,80 6,70 15,90 7,10
01301200072 6,70 7,00 to 9,00 5,60 x 2,00 6,00 20,20 7,90

If you are interested in our family MBSPL, you may be interested in these families as well:

Our non reusable cable ties have been designed for cables, tubes, etc…
