Base to join round tubes and build a handle easily and quickly. Full handle also available (see LHGB group).

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For tube (D)
A
b
C
H
h
d



More
Info.
00301410076 20 47,00 23,00 26,00 53,00 40,00 6,40
00301410075 25 56,00 29,00 32,00 60,00 43,00 8,40

If you are interested in our family LHGBA, you may be interested in these families as well:

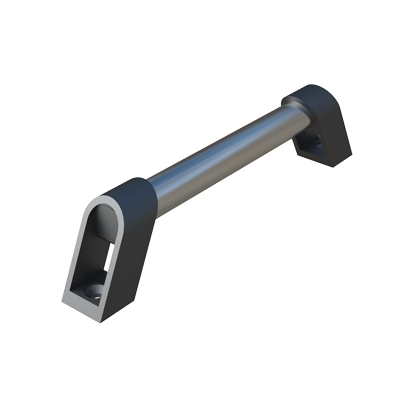

Our stand-off aluminium tubular-type handle is reinforced. It is ideal for doors or for machinery equipments. It has a good finishing look.
