Description and features
Double ended clip that permits two panels to be connected in an easy and secure way, from the center. No fastener head will be visable. This clip is simple and quick to install under fingertip pressure.Product images and technical drawings

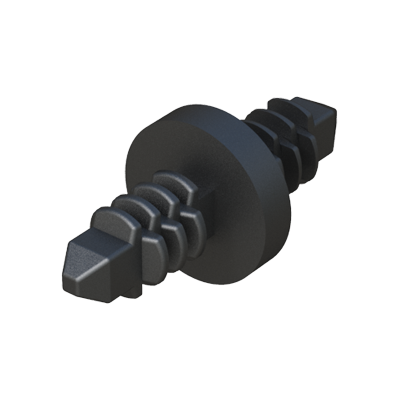

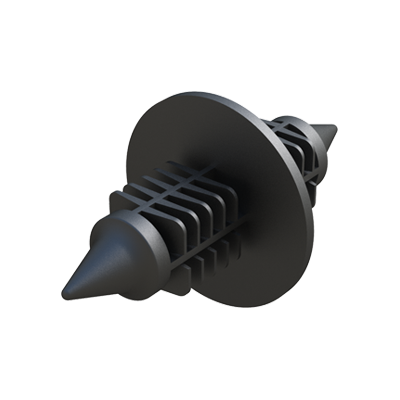

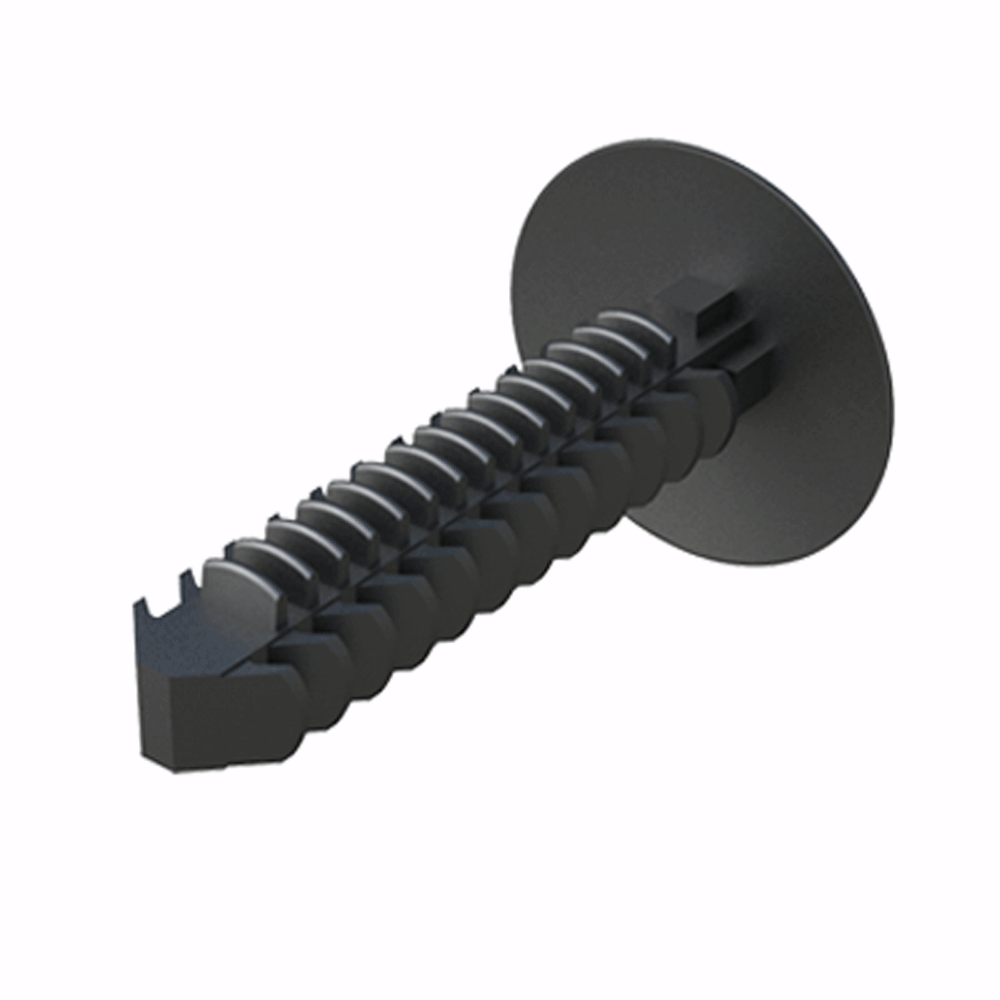

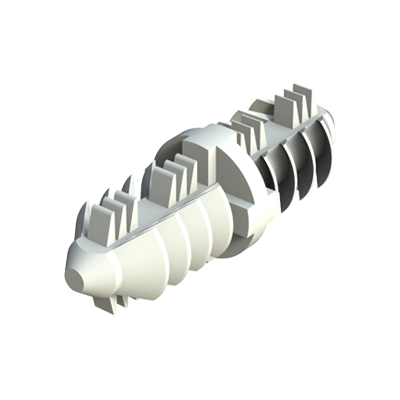

Product view
Technical drawing
Video
Part numbers and dimensions of Double ended clip
| Reference | Hole size A |
Panel thickness A |
A |
B |
Hole size C |
Panel Thickness C |
C |
D |
More Info. |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50003000002 | 4,00 | 2,60 to 6,30 | 7,80 | 1,75 | 4,00 | 2,60 to 6,30 | 7,80 | 7,50 | |||||
| 01300100800 | 6,00 | 0,80 to 3,60 | 7,80 | 1,00 | 6,00 | 0,80 to 3,60 | 7,80 | 11,80 | |||||
| 01000000003 | 6,35 | 0,50 to 6,90 | 11,10 | 2,79 | 6,35 | 0,50 to 6,90 | 11,10 | 8,20 | |||||
| 01300100801 | 7,50 | 2,30 to 6,40 | 8,70 | 0,50 | 6,00 | 1,30 to 16,00 | 16,50 | 5,00 | |||||
| 50003000001 | 7,50 | 3,00 to 8,00 | 17,50 | 1,00 | 7,50 | 3,00 to 8,00 | 17,50 | 19,00 | |||||
| 01000000004 | 7,93 to 8,33 | 2,40 to 7,60 | 8,76 | 1,00 | 7,93 to 8,33 | 2,40 to 7,60 | 8,76 | 12,80 | |||||
| 01000000001 | 7,93 to 8,33 | 3,20 to 9,50 | 21,88 | 1,10 | 7,93 to 8,33 | 3,50 to 19,00 | 11,25 | 12,70 |
