Elbow connector with invisible connection for round tubes

Products

Our elbow connector has been designed for round tubes. It is supplied with or without internal metal core.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	For Tube	Tube Thickness	L	Angle (A)									More Info.

02300400241

40,00

2,00

40,50

90º

If you are interested in our family SROLA, you may be interested in these families as well:

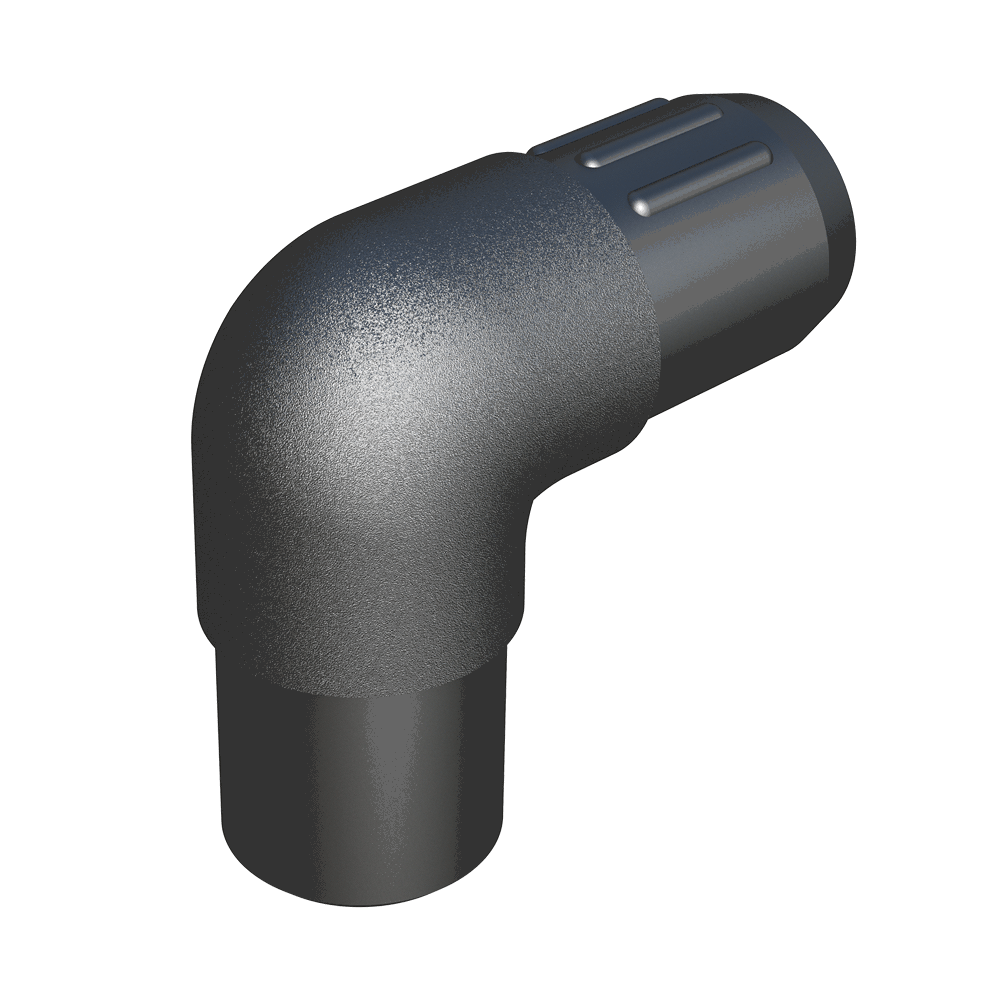

Our elbow connector has been designed for round tubes.

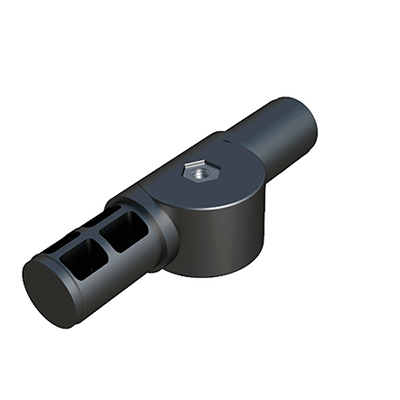

Our hinge 2-way connector has been designed for round tubes. It has an angle which goes from 45º to 200º. If you want this part with 3 ways: SROY, or with 4 ways: SROC.

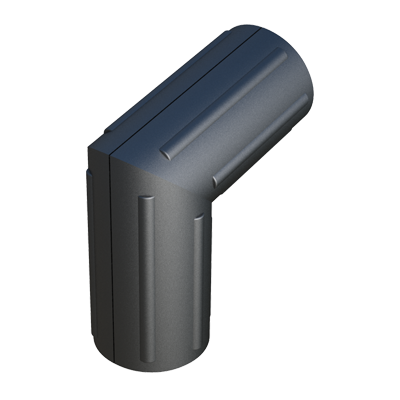

Our elbow connector has been designed in order to connect 2 round tubes.

LGL end caps are designed to ensure <b>secure fastening</b>, <b>easy assembly</b>, and a <b>high-quality finish</b> thanks to the rounded shape of their head. They are used to seal tubes and/or various openings that must withstand mechanical stress and are <b><i>recommended as end caps for chairs and/or furniture</b></i>.
<br>
For use as sliding stoppers and to facilitate easy assembly in tubes with thicker walls, we recommend chamfering the tube's inner diameter (approx. 0.3 - 0.5 x 60°).
<br>
<b>Special colors</b>, <b>company logos</b>, and production using <b>TPE material</b> (non-slip, sound-reducing, and resistant to a wider temperature range) are available upon request—please contact us.
<br>
Due to technical production reasons, a residual gate may exceed the L dimension. Depending on the selected item, the surface finish may vary between polished and textured.
<br>
