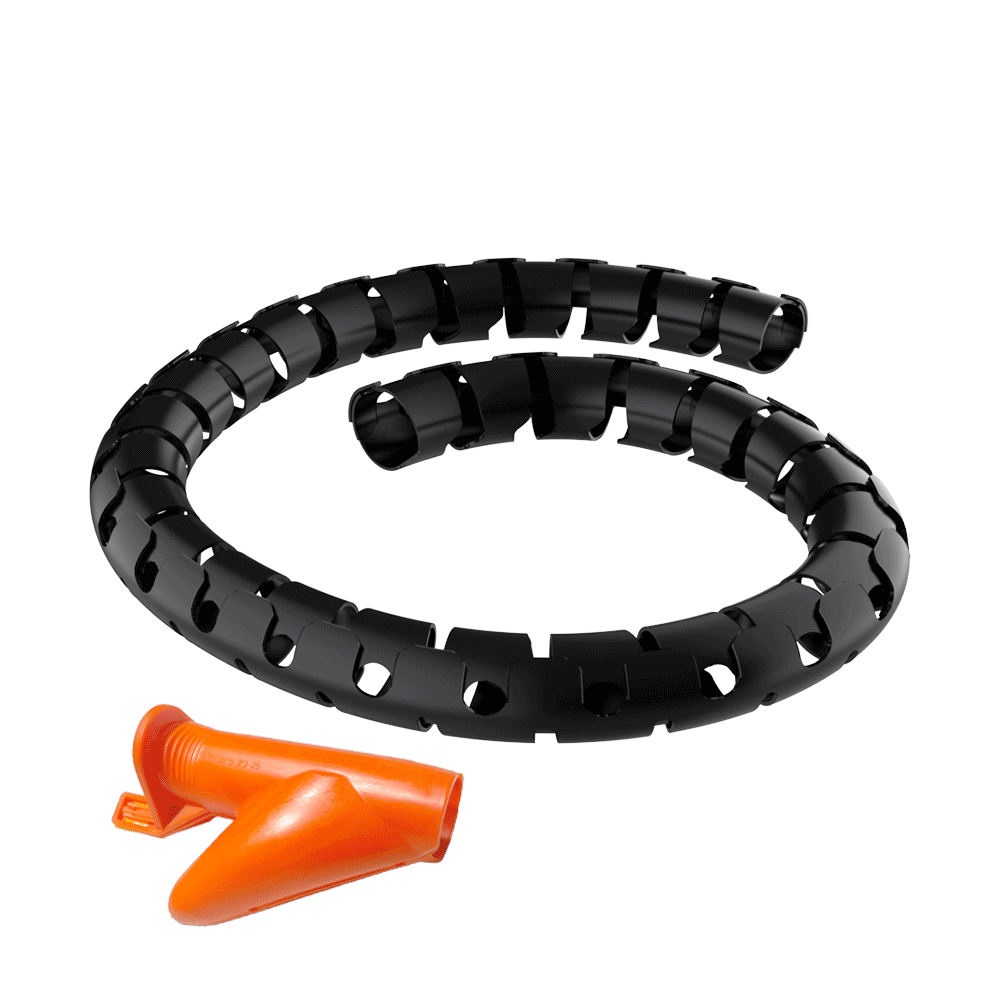

The sheath is ideal for bundling and protecting cables in all types of electrical and mechanical installations, both fixed and with continuous movements (machines, control panels, etc.).
Its flexible design allows you to bend it in any direction, extract cables at any point, and reuse it easily.

Material: Polypropylene
Available colors: Black, white, light gray, silver, and orange
Operating temperature: -30 °C to +85 °C (peaks up to +90 °C)
Flammability: Self-extinguishing UL94-HB
Halogen-free

The model in orange color is specially designed for applications in the electric mobility sector.

High resistance

  • Resistant to most solvents and chemical agents
  • Withstands grease, mineral oils, and gasoline

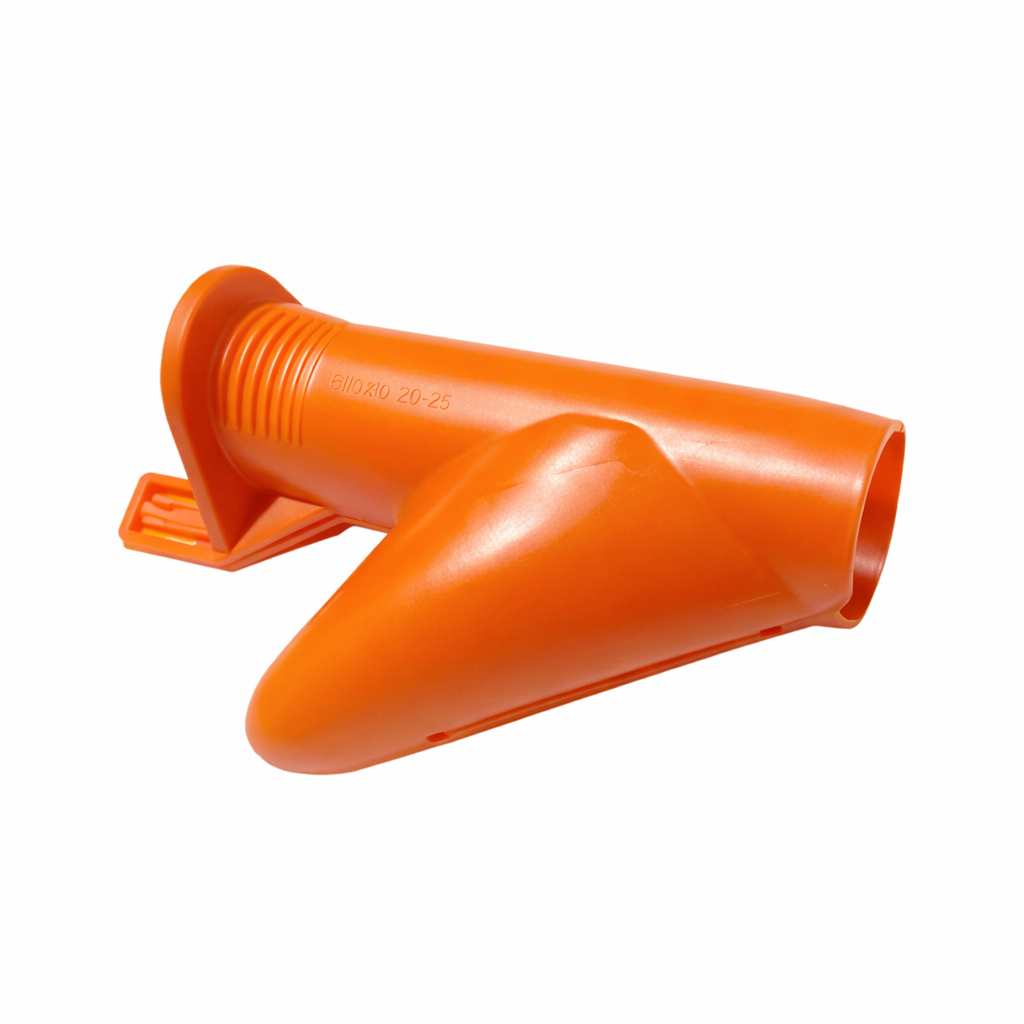

Each format includes a specific tool to facilitate cable insertion, also made of polypropylene.

Optional presentation (on request)

For diameters 15, 20, and 25 mm (except orange color), lengths of 2 meters can be requested.

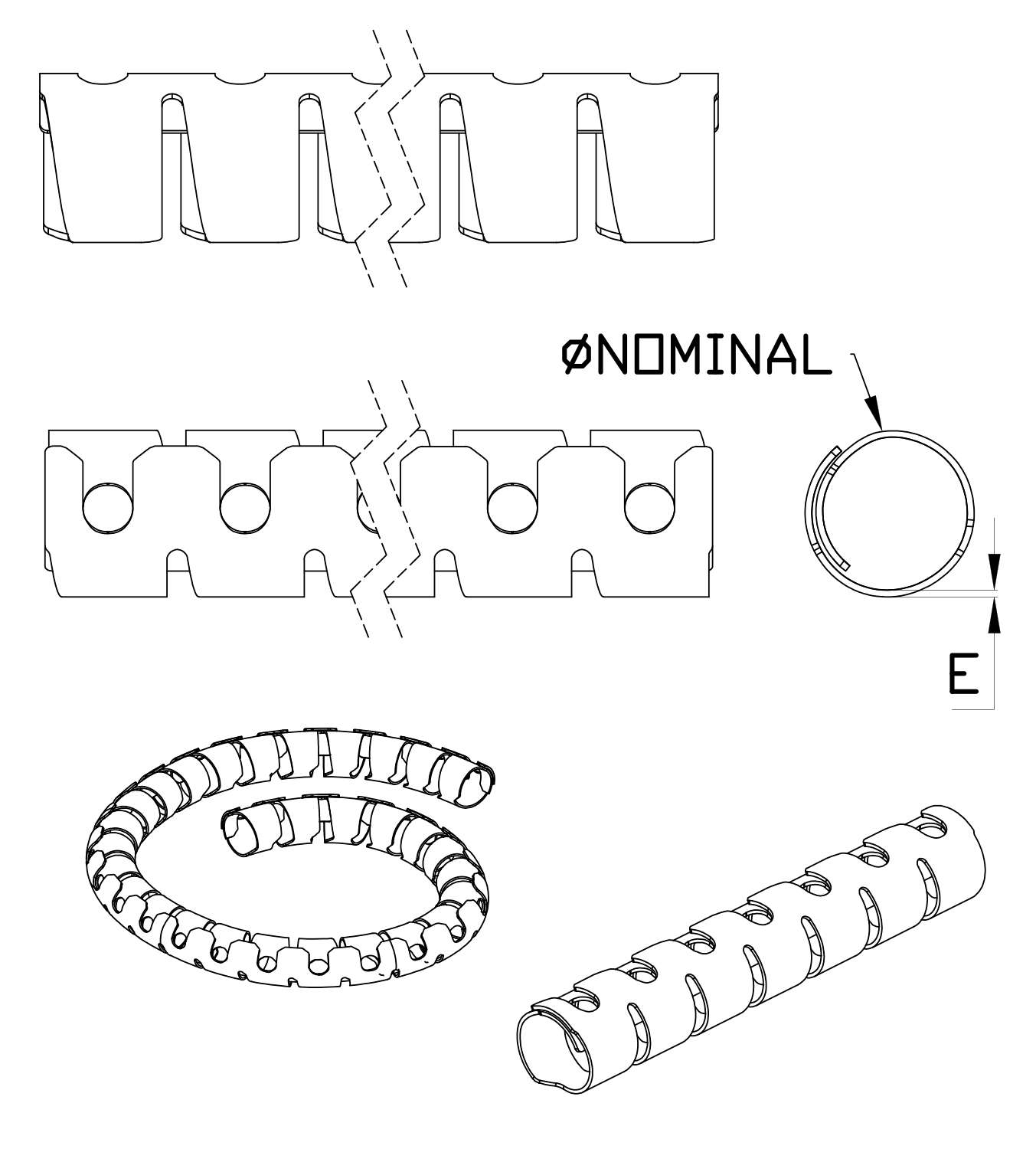

Drawing PDF:
UL94:   HB
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
ø Nominal diameter
Thickness
ø Maximum capacity



More
Info.
02010000226 8,00 0,80 10,00
02010000227 15,00 0,80 16,00
02010000228 20,00 0,90 23,00
02010000229 25,00 1,00 25,00
02010000230 32,00 1,30 32,00
