Hexagonal nut - ISC Plastic Parts

Products

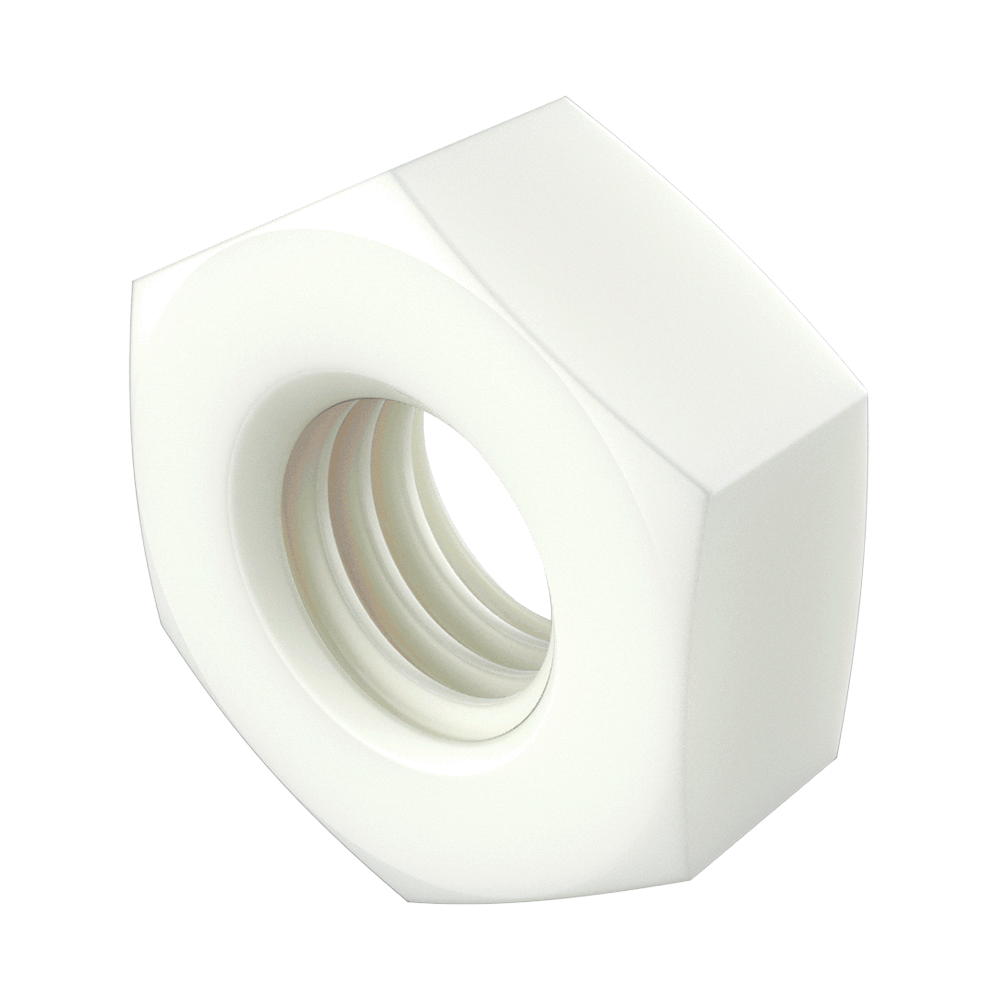

Our metric thread MDIN hex nuts, similar to DIN 34814 (DIN 934/555) / ISO 4032, are manufactured in various engineering materials. that favor properties such as chemical, mechanical, oxidation resistance, etc.

They are available in PA66 (Polyamide 66 “Nylon”), PP (Polypropylene), POM (Acetal Resin), PVDF b> (Polyvinylidene Fluoride), PEEK (Polyetheretherketone) and PAGF (Polyamide with the possibility of up to 50% fiberglass).

The measurements of M2, M2.5 and M3.5 are supplied only in PA66.

RAL colors manufactured

Drawing PDF:
UL94: V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	Metric Thread	F	H				Similar DIN	Simliar ISO					More Info.

03100300610

3,90 to 4,00

1,15 to 1,25

DIN 34814
(DIN 934/555)

ISO 4032

03100300611

M2,5

4,90 a 5,10

1,80 a 1,90

DIN 34814
(DIN 934/555)

ISO 4032

03100300612

5,30 to 6,00

2,25 to 2,45

DIN 34814
(DIN 934/555)

ISO 4032

04103000202

M3,5

6,90

2,70

DIN 34814
(DIN 934/555)

ISO 4032

03100300613

6,80 to 7,00

2,90 to 3,20

DIN 34814
(DIN 934/555)

ISO 4032

03100300614

7,85 to 7,95

4,05 to 4,65

DIN 34814
(DIN 934/555)

ISO 4032

03100300615

9,90 to 10,05

5,00 to 5,60

DIN 34814
(DIN 934/555)

ISO 4032

03100300616

12,80 to 12,85

6,40 to 6,70

DIN 34814
(DIN 934/555)

ISO 4032

03100300617

M10

15,80 to 17,00

8,00 to 8,50

DIN 34814
(DIN 934/555)

ISO 4032

03100300618

M12

17,95 a 19,00

10,10 a 10,55

DIN 34814
(DIN 934/555)

ISO 4032

03100300619

M14

20,00 a 21,00

11,10 a 12,80

DIN 34814
(DIN 934/555)

ISO 4032

03100300620

M16

23,65 a 24,00

12,80 a 14,80

DIN 34814
(DIN 934/555)

ISO 4032

03800200512

M18

27,00 a 27,20

14,60 a 15,00

DIN 34814
(DIN 934/555)

ISO 4032

03100300621

M20

29,20 a 30,00

16,40 a 18,00

DIN 34814
(DIN 934/555)

ISO 4032

03100300622

M24

35,00 a 36,00

19,00 a 21,50

DIN 34814
(DIN 934/555)

ISO 4032
