The membrane grommet handles an exceptional large cable span and is equipped with a pop-out membrane providing a wider range of applications than traditional membrane grommet. With the pop-out membrane you have a sealed cap but even after passing a cable you maintain a guaranteed IP67 standard. The grommet needs no further installation tools and works extremely well even if cables pass through at extreme angles.

Drawing PDF:
UL94:   HB/V0
IP:   67
RoHS:
Measures expressed in: Millimeters


Reference
Hole diameter (A)
Size
Panel thickness (B)
For cable
H
H1 / H2
D / D1



More
Info.
01601000050 15,20 PG9 0,50 to 3,00 5,00 to 10,00 11,00 4,00 / 6,75 24,00 / 4,00
01601000004 16,50 M16 0,50 to 3,00 5,00 to 10,00 11,00 4,00 / 6,75 23,50 / 4,00
01601000051 19,00 PG11 0,50 to 3,00 6,00 to 12,00 11,00 4,00 / 6,75 26,00 / 5,00
01601000005 20,50 M20 0,50 to 3,00 6,00 to 13,00 11,00 4,00 / 6,75 27,50 / 5,00
01601000052 23,00 PG16 0,50 to 3,50 8,00 to 15,00 11,00 4,00 / 6,75 30,00 / 7,00
01601000006 25,50 M25 0,50 to 3,50 8,00 to 17,00 11,00 4,00 / 6,75 32,50 / 7,00
01601000053 29,00 PG21 0,50 to 4,50 10,00 to 20,00 11,00 4,00 / 6,75 36,00 / 9,00
01601000007 32,50 M32 0,50 to 4,50 12,00 to 24,00 11,00 4,00 / 6,75 39,50 / 11,00
01601000054 38,00 PG29 1,50 to 4,50 18,00 to 27,00 13,50 4,84 / 7,41 45,00 / 17,00
01601000040 40,50 M40 1,50 to 4,50 19,00 to 30,00 13,50 4,84 / 7,41 47,50 / 18,00

If you are interested in our family TSS, you may be interested in these families as well:

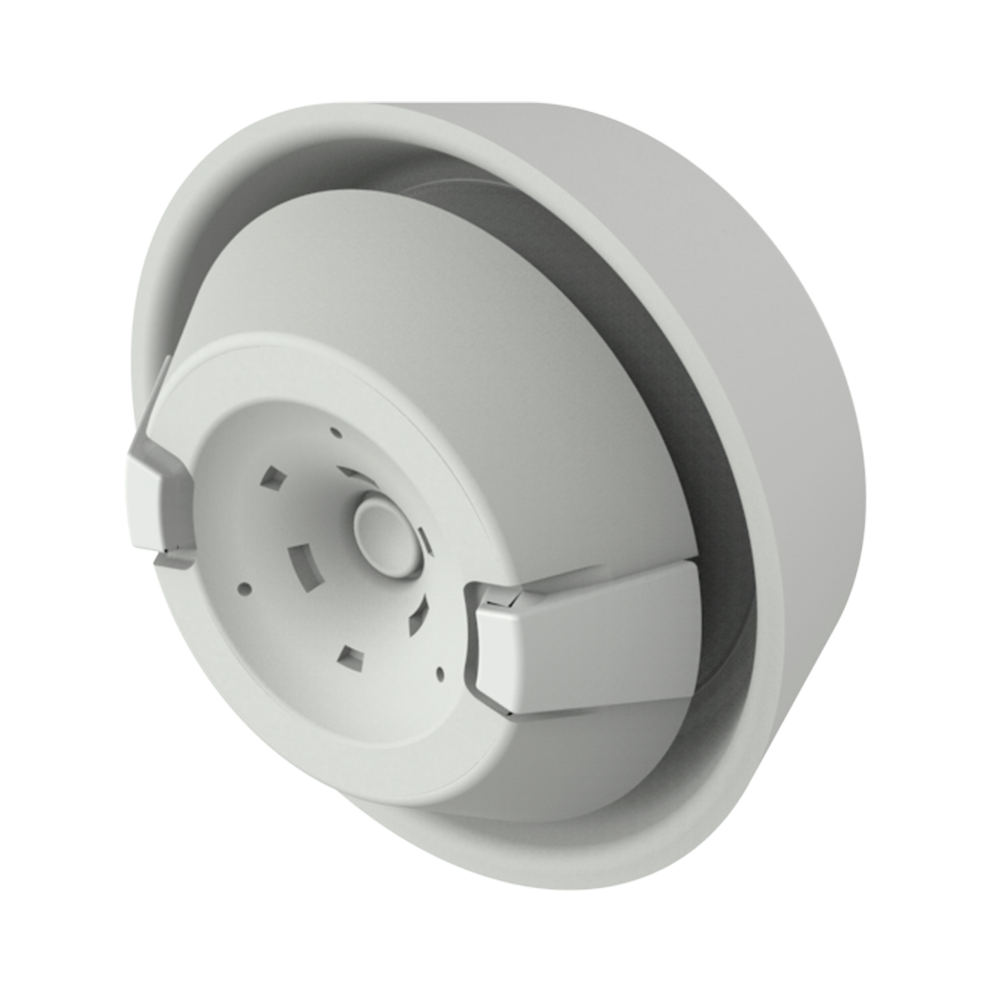

Our patented TKL membrane cable gland is made up of two components whose composition (<b>TPE and PA66</b>) and design allows <b>fast and safe</b> cable anchoring. The outer TPE layer works as a protector and prevents possible damage to the cables while providing vibration damping. The membrane design also meets <b>IP65</b> certification. <br>
<br>

Installation <b>does not require tools</b> and is done with little effort: it is placed by pressing it with your fingers until the cable gland is fixed in position and <b>adjusts to the thickness</b> of the panel where it is inserted. It only protrudes <b>5 mm</b> from the material into which it is inserted and remains tightly <b>fixed</b> in both directions like a cable gland. The larger the diameter of the cable, the greater the <b>retaining effect</b>. <br>
<br>

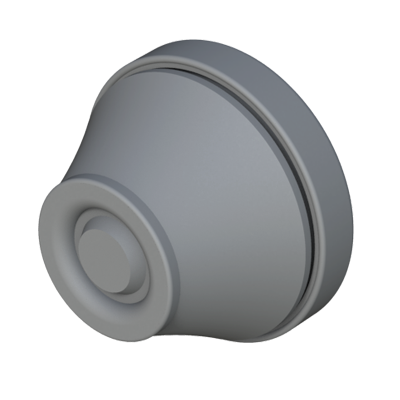

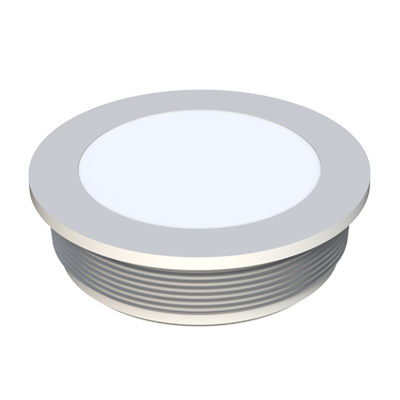

The different references cover a <b>diameter range</b> of cable or tube from 7 to 13 millimeters.   The TRO membrane grommet is very simple to use and demands no tools. This part is approved within the standard IP67 in his components, internally as well as externally. The membrane grommet is resistant against water and most chemicals. The part is fabricated with two materials: EPDM and CR.   The membrane grommet looks pretty much like the TRO one but its design is flatter, which makes it lighter and easier to install (ideal for areas of difficult access). It is perfect for manufacturers of “strip lighting” as many other applications. For special colours, please consult us.   Grommet-cap with hermetic membrane HPOP, can be installed quickly and easily by just pushing it into the whole. Thanks to hermetic membrane, our part is resistant on dust, rain, spacing liquids etc., however we do not recommend to immerse it (IP66).  It is suitable for enclosures with a thickness greater than 2mm and ideal for end of tubes, where cables are to be passed. The modern technology of injection of two soft materials (bi-injection LDPE + TPE) facilitates installation and eases crossing wires of different diameters.
