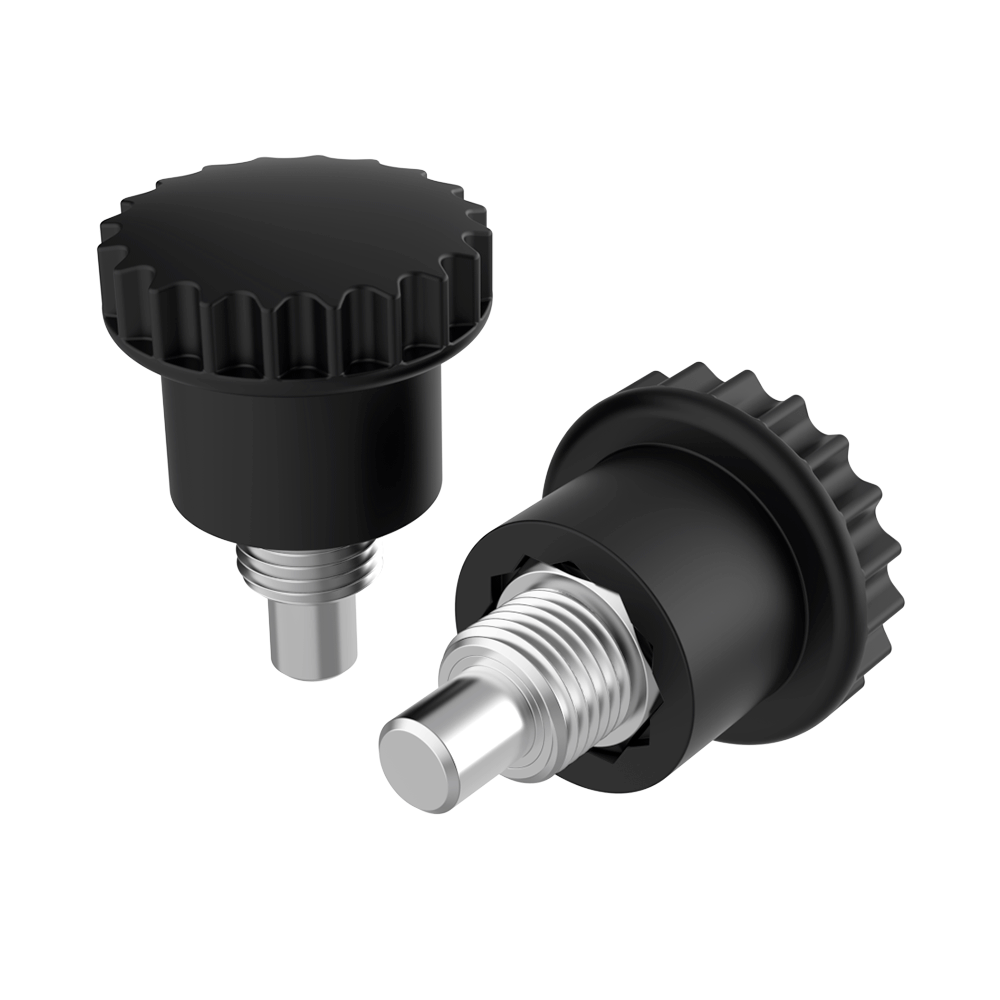

Our CRA family consists of a mini indexing plunger with lock with a knurled head made of PA6 (Polyamide 6) with adjustment hexagon. The thread is made of SS (Stainless Steel 1.4305) and the plunger of ZCS (Zinc-Plated Steel). They are ideal for small constructions and especially suitable for screwing into thin walls.
Use: Locking and positioning pins are used when two or more components are fixed, indexed, or secured in the desired position. Temporary fixed positioning of the component is possible, but it can be released and changed at any time by operating the catch. No additional tools are required for its application.

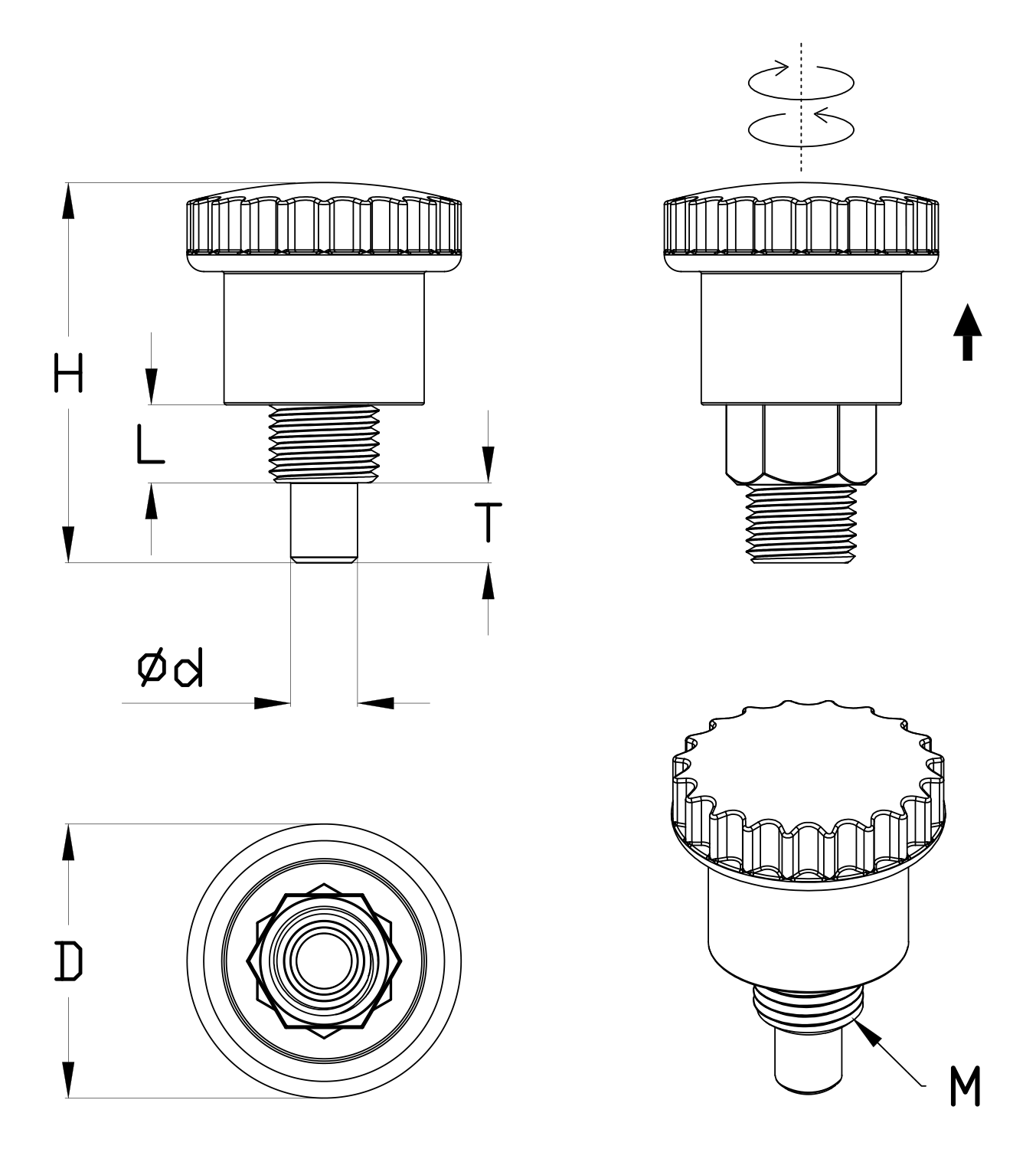

Note: The button is pulled out, turned 30º, and fixed by the inner notch.
If you want the same mini indexing plunger without lock, please refer to our CMA family.
RAL colors manufactured
Use: Locking and positioning pins are used when two or more components are fixed, indexed, or secured in the desired position. Temporary fixed positioning of the component is possible, but it can be released and changed at any time by operating the catch. No additional tools are required for its application.
Note: The button is pulled out, turned 30º, and fixed by the inner notch.
If you want the same mini indexing plunger without lock, please refer to our CMA family.
RAL colors manufactured
