Description and features
Our mini rivet is ideal for applications where the elements to be fixed may be subject to movement. Used for fastening and fixing a variety of materials with just a snap. Simply press together the male part and the female part for a fast and easy assembly. Male and female rivets are packaged and sold separately.
Possible to get dyed colors Product images and technical drawings

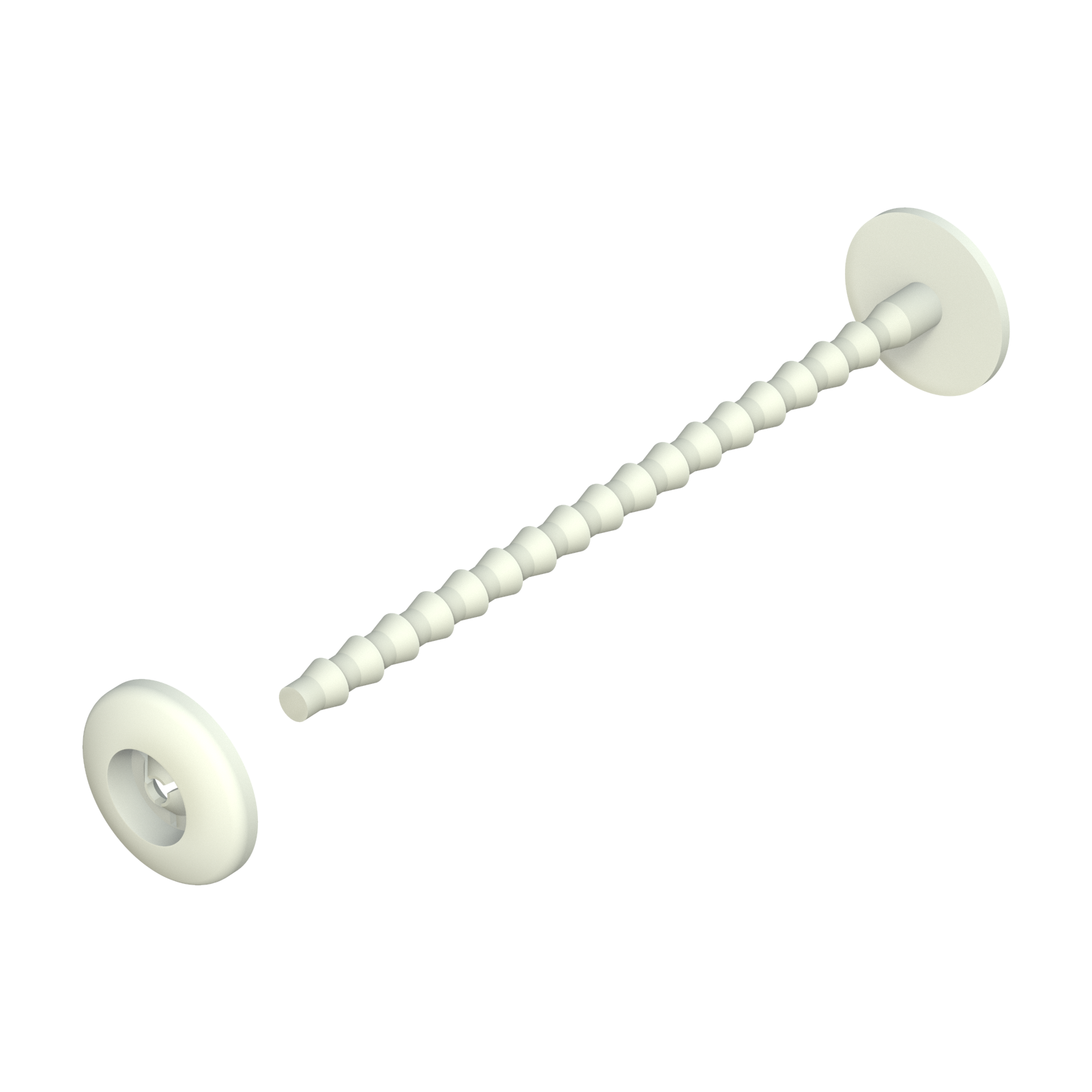

Product view
Technical drawing
Video
Part numbers and dimensions of Mini rivet
| Reference | Hole size |
Panel thickness |
A |
B |
Female part |
Male part |
Requires the Reference |
More Info. |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 00100300319 | · | · | 6,35 | 1,27 | |||||||||
| 00100300320 | 1,50 | 0,25 | 6,35 | 1,27 | 00100300319 | ||||||||
| 00100300321 | 1,50 | 0,50 | 6,35 | 1,27 | 00100300319 | ||||||||
| 00100300322 | 1,50 | 0,75 | 6,35 | 1,27 | 00100300319 | ||||||||
| 00100300323 | 1,50 | 1,15 | 6,35 | 1,27 | 00100300319 | ||||||||
| 00100300324 | 1,50 | 1,60 | 6,35 | 1,27 | 00100300319 | ||||||||
| 00100300325 | 1,50 | 1,90 | 6,35 | 1,27 | 00100300319 | ||||||||
| 00100300326 | · | · | 9,55 | 1,91 | |||||||||
| 00100300327 | 2,40 | 0,50 | 9,55 | 1,91 | 00100300326 | ||||||||
| 00100300328 | 2,40 | 0,80 | 9,55 | 1,91 | 00100300326 | ||||||||
| 00100300329 | 2,40 | 1,15 | 9,55 | 1,91 | 00100300326 | ||||||||
| 00100300330 | 2,40 | 1,60 | 9,55 | 1,91 | 00100300326 | ||||||||
| 00100300331 | 2,40 | 1,90 | 9,55 | 1,91 | 00100300326 | ||||||||
| 00100300332 | 2,40 | 2,30 | 9,55 | 1,91 | 00100300326 | ||||||||
| 00100300587 | 2,40 | 3,20 | 9,55 | 1,91 | 00100300326 | ||||||||
| 00100300467 | 2,40 | 7,90 | 9,55 | 1,91 | 00100300326 | ||||||||
| 01300100135 | · | · | 10,20 | 2,50 | |||||||||
| 01300100136 | 3,00 | 1,20 | 10,20 | 2,30 | 01300100135 | ||||||||
| 01300100137 | 3,00 | 2,00 | 10,20 | 2,30 | 01300100135 | ||||||||
| 01300100138 | 3,00 | 3,00 | 10,20 | 2,30 | 01300100135 | ||||||||
| 01300100139 | 3,00 | 3,50 | 10,20 | 2,30 | 01300100135 | ||||||||
| 01300100140 | 3,00 | 5,10 | 10,20 | 2,30 | 01300100135 | ||||||||
| 01300100141 | 3,00 | 6,70 | 10,20 | 2,30 | 01300100135 | ||||||||
| 00100300333 | · | · | 12,70 | 2,54 | |||||||||
| 00100300522 | 3,20 | 0,80 | 12,70 | 2,54 | 00100300333 | ||||||||
| 00100300523 | 3,20 | 1,15 | 12,70 | 2,54 | 00100300333 | ||||||||
| 00100300524 | 3,20 | 1,60 | 12,70 | 2,54 | 00100300333 | ||||||||
| 00100300525 | 3,20 | 2,35 | 12,70 | 2,54 | 00100300333 | ||||||||
| 00100300526 | 3,20 | 3,20 | 12,50 | 2,54 | 00100300333 | ||||||||
| 00100300334 | 3,20 | 3,65 | 12,70 | 2,54 | 00100300333 | ||||||||
| 00100300527 | 3,20 | 4,75 | 12,70 | 2,54 | 00100300333 | ||||||||
| 00100300528 | 3,20 | 8,25 | 12,70 | 2,54 | 00100300333 |
