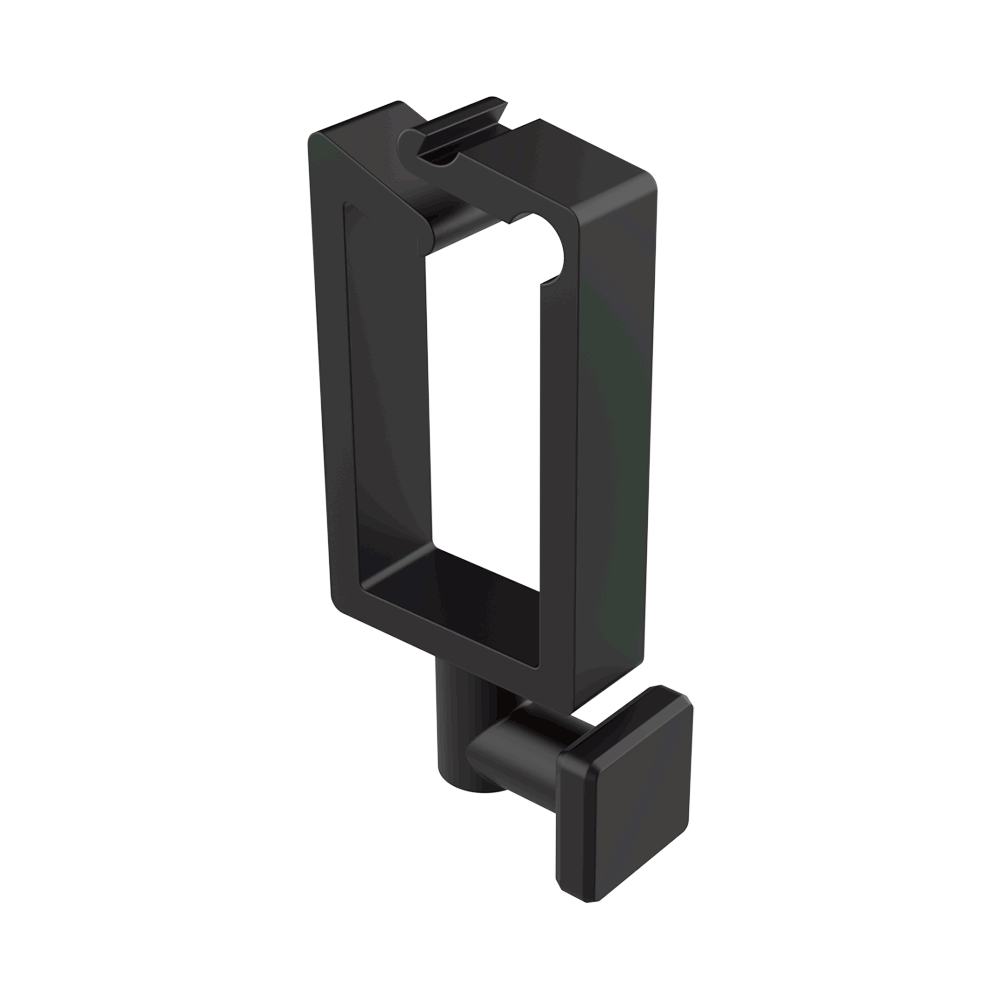

Modular rectangular clamp 90º SFQ

Description and features

The SFQ 90° rectangular modular cable clamp is designed to be assembled with the SFK panel edge clips or the SFO structural profile clips, providing a flexible, safe and durable solution for organising single cables or bundles in industrial and renewable energy installations.

Manufactured in stabilised PA66, it offers excellent heat and UV resistance, making it especially suitable for outdoor applications such as photovoltaic plants. It complies with the UL94-V2 flammability rating and operates from −40 °C to +105 °C.

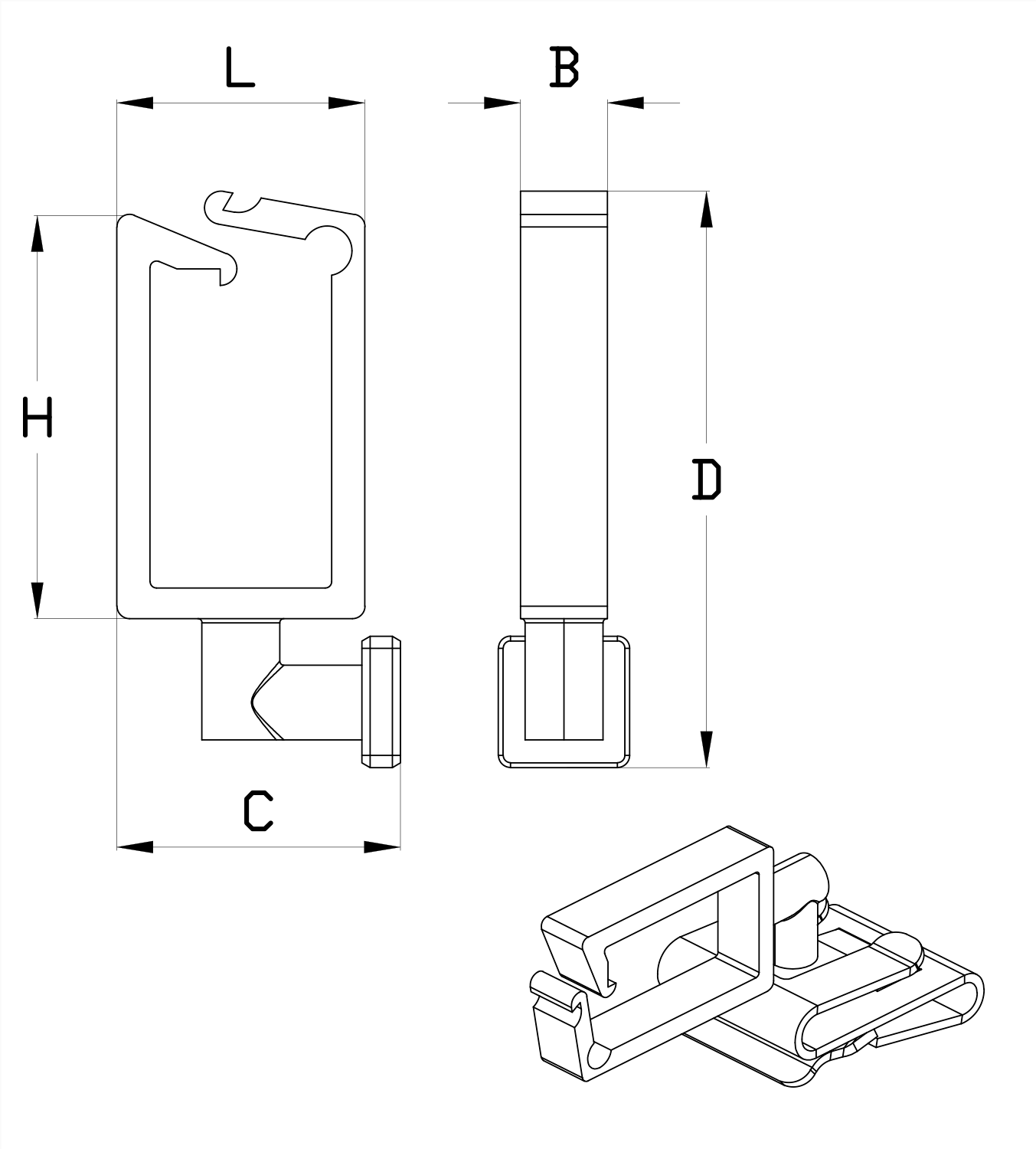

Its 90° rectangular base allows easy fastening to the corresponding stainless-steel clip, orienting the cables perpendicularly to the structure. Thanks to the modular system, the clamp can be disassembled and repositioned to modify the cable layout or be replaced by another compatible model. The upper tabs can be closed to prevent cable movement and reopened for extensions or replacements.

Beyond guiding and fastening, the SFQ clamp provides effective isolation between cables and photovoltaic or metallic surfaces, enhancing installation safety.

With its 90° design, strength and ease of assembly, SFQ is ideal for photovoltaic modules, electrical panels, telecommunications, industrial machinery, marine installations and control systems, where perpendicular, tidy and reliable cable management is required.
