Pes coated ss cable tie - ISC Plastic Parts

Products

Our SSET cable ties made of stainless steel are designed for secure fastening in extreme environments, providing high mechanical strength and durability.

Manufactured from AISI 304 and AISI 316L stainless steel, halogen-free, they offer excellent tensile strength, resistance to high temperatures and corrosion. The AISI 316L version provides enhanced resistance in marine and highly corrosive environments.

Also available with a black polyester coating, which protects cables, improves installation safety and increases UV resistance.

Compatible with the SSFT clip family for combined installation solutions.

· Material: AISI 304 / AISI 316L stainless steel
· Operating temperature: -80°C to +530°C (uncoated) / -40°C to +150°C (coated)
· Certifications: CE, UL, DNV-GL
· Properties: High strength, corrosion resistant, halogen-free

For easier installation, the MHET tensioning and cutting tool is recommended, designed to apply the correct tension and provide precise trimming of excess tie material.

Available on request: PVC-coated version compliant with IEC 60092.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	Max. Capacity Ø (d)	L	H	Tensile strength max. (N)									More Info.

02012000450	38,00	125,00	4,60	882,60
02012000451	61,90	200,00	4,60	882,60
02012000452	61,90	200,00	7,90	1569
02012000453	90,60	290,00	4,60	882,60
02012000454	90,60	290,00	7,90	1569
02012000455	112,80	360,00	4,60	882,60
02012000456	112,80	360,00	7,90	1569
02012000457	141,00	450,00	7,90	1569
02012000458	163,80	520,00	4,60	882,60
02012000459	163,80	520,00	7,90	1569
02012000460	214,80	680,00	4,60	882,60
02012000461	214,80	680,00	7,90	1569
02012000462	265,70	840,00	4,60	882,60
02012000463	265,70	840,00	7,90	1569
02012000464	320,00	1020,00	7,90	1569
02012000465	320,00	1220,00	4,60	1569

If you are interested in our family SSET, you may be interested in these families as well:

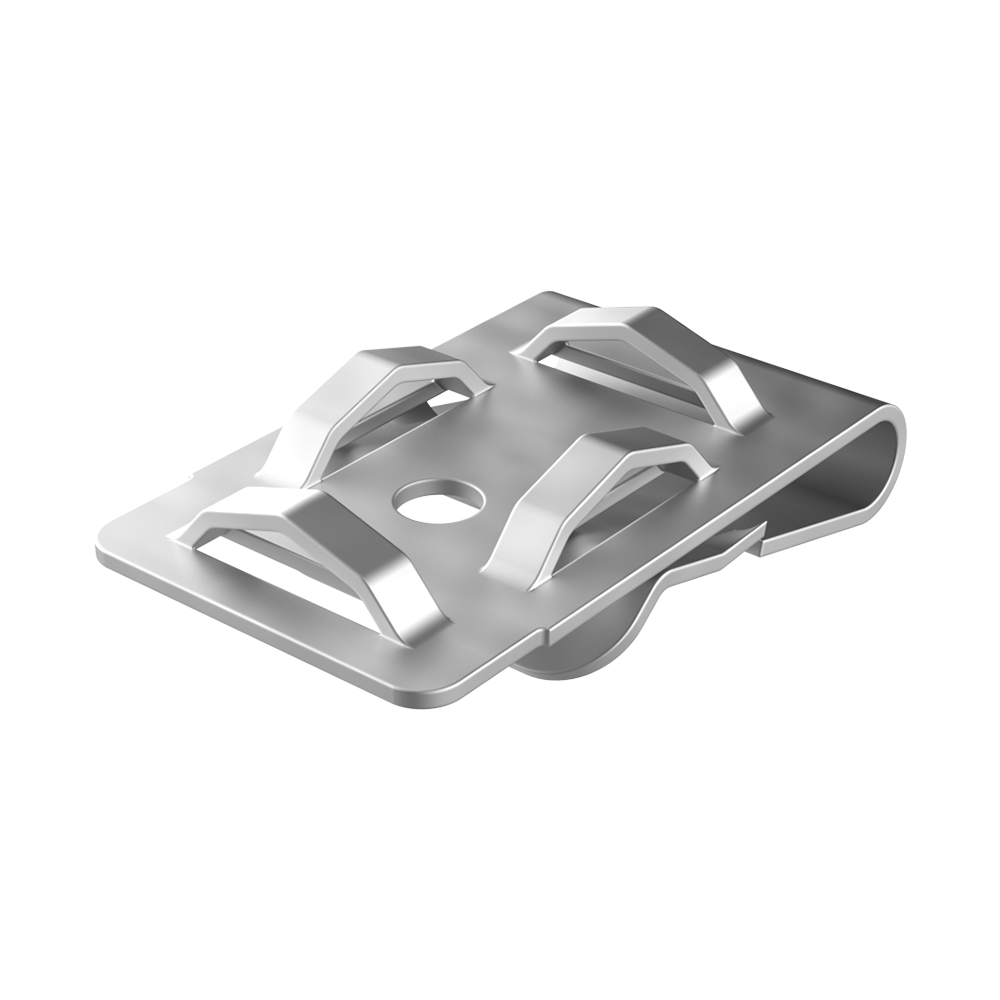

<p>Our <b>SSFT stainless steel clips</b> are designed for fixing onto the edge of the frame and for assembly with cable ties, enabling quick installation without the need for holes or adhesives.</p>

<p>Manufactured in <b>AISI 304 stainless steel</b>, they offer high corrosion resistance and durability. They feature 4 slots for mounting with cable ties (not included), allowing parallel or perpendicular orientation. The locking tab ensures secure fixation, and removal can be easily performed using a screwdriver.</p>

<p>Compatible for combined installations with the <b><a href='https://www.isc-sl.com/pes-coated-ss-cable-tie/sset/'>SSET</a></b> metal cable tie range.</p>

<p>· <b>Material:</b> AISI 304 stainless steel<br>
· <b>Operating temperature:</b> -40 °C / +300 °C<br>
· <b>Max. cable tie width:</b> 8 mm<br>
· <b>Certification:</b> c-UL-us</p>

<p><i>Designed for profiles up to 6.4 mm thickness, they allow manual installation without tools. These clips offer higher quality than standard market products thanks to a material thickness of 0.635 mm and a guaranteed service life of 20 years.</i></p>
