Our closing / opening devices work like a spring. The shape of the cam ensures a smooth opening and closing thanks to its locking system. These devices are used in applications where doors, panels or parts must be opened and closed regularly, such as the following: automobiles, motorbikes, electronics, air conditioners, ventilation and heating devices, medical field, point of sale displays (POS), etc.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Hole size
Panel thickness
Newton opening/closing force (± 0,58 N)
C
I
h / H

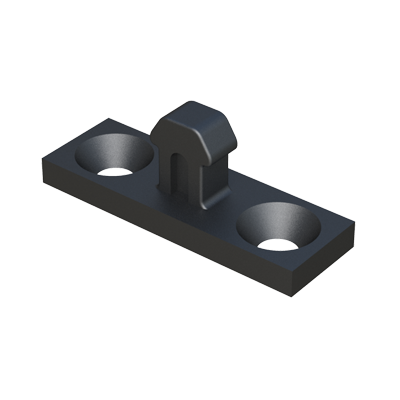

Suitable with TAZ female stand



More
Info.
50001000015 6,90 x 7,00 2,00 4,9 N 6,80 6,90 2,60 / 8,80
52001000000 7,00 x 8,00 2,00 to 2,10 4,5 N 7,00 8,00 3,00 / 12,20
52001000001 7,00 x 8,00 2,00 to 2,10 5,4 N 7,00 8,00 3,00 / 12,20
52001000002 7,00 x 8,00 2,00 to 2,10 11 N 7,00 8,00 3,00 / 12,20
50001000009 7,00 x 8,00 2,00 to 2,20 4,9 N 6,80 7,90 3,00 / 12,00

If you are interested in our family TAB, you may be interested in these families as well:

These latches operate by way of a spring and cam form which provides a secure 'push to close - push to open' latching mechanism. Used in applications where doors, panels or compartments require to be accessed on regular occasions, such as automotive, electronics, HVAC, medical, point of sale, white and brown goods industries.
way of a spring and cam form which provides a secure 'push
to close - push to open' latching mechanism.
Used in applications where doors, panels or compartments
require to be accessed on regular occasions, such as
automotive, electronics, HVAC, medical, point of sale, white
and brown goods industries.
