Description and features
Our cable gland PRPRA is installed by light pressure, without locknut or threaded holes, reducing assembly time compared with standard cable glands.

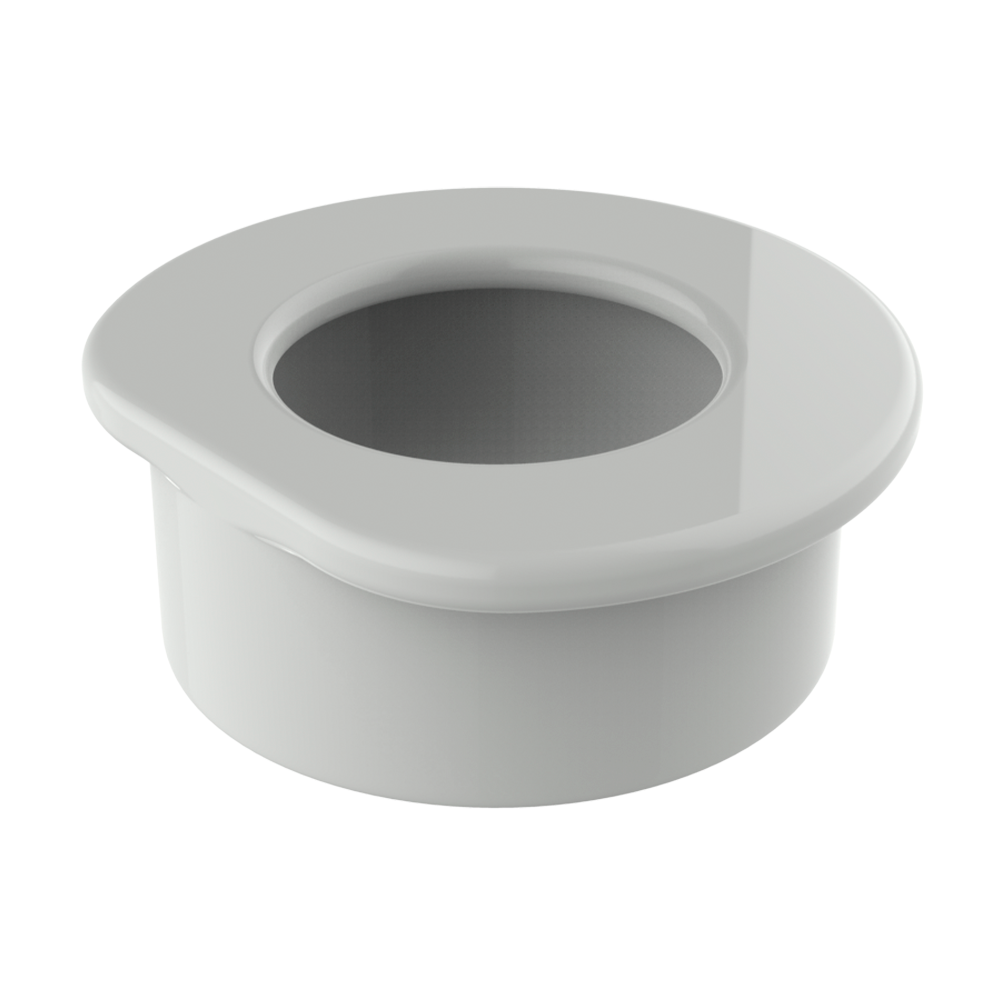

Its design allows different cable ranges to be combined with suitable support and protection. Manufactured in Polyamide 6 (PA6), it includes a sealing O-ring in Chloroprene (CR) and is resistant to UV rays. Disassembly must be carried out using the special MHPRP tool, included in the packaging and also available separately.
· Sealing: IP 66 / IP 68, Type 4X (UL 50E)
· Assembly: Holes from 12 to 40 mm; panel from 0.50 to 4.00 mm
· Temperature: -20°C / +100°C; short term -30°C / +150°C
· Standards: VDE, UL, CSA, DNV; UL94V2
Available with metric or PG thread depending on reference, in light grey RAL 7035, dark grey RAL 7001 and black RAL 9005. Minimum order on request: blue RAL 5015, white RAL 9003 and red RAL 3020.

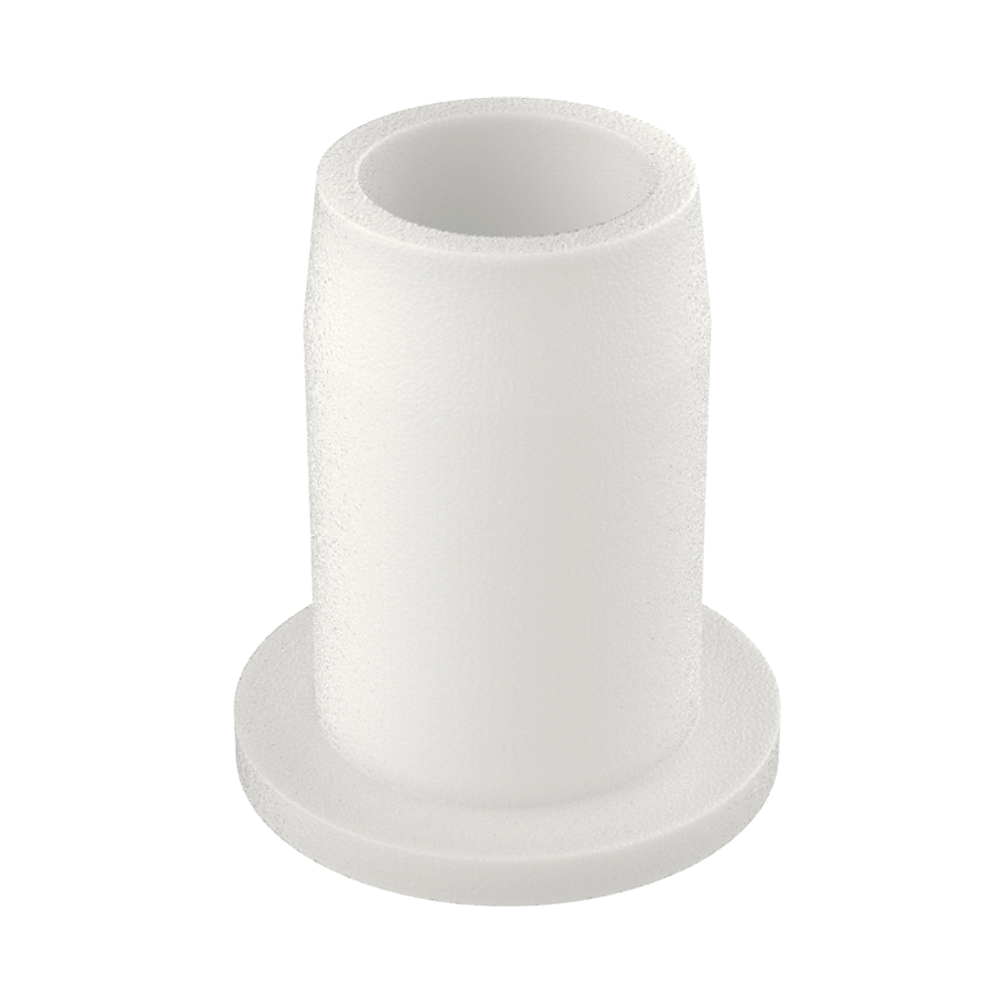

For the temporary closure of cable glands, the DTPB plug can be used to provide protection against dust and water splashes during assembly, transport or when not in use.
Product images and technical drawings
Product view
Technical drawing
Video
| 02001002026 | 12,20 to 12,40 | 0,50 to 4,00 | 2,00 to 6,50 | 38,10 | 20,90 | 9,00 | 11,90 | 15 | |||||
| 02001002027 | 12,20 to 12,40 | 0,50 to 4,00 | 3,00 to 6,50 | 38,10 | 20,90 | 9,00 | 11,90 | 15 | |||||
| 02001002028 | 16,20 to 16,40 | 0,50 to 4,00 | 3,00 to 6,50 | 39,10 | 23,90 | 9,20 | 15,00 | 19 | |||||
| 02001002029 | 16,20 to 16,40 | 0,50 to 4,00 | 4,00 to 8,00 | 39,10 | 23,90 | 9,20 | 15,00 | 19 | |||||
| 02001002030 | 16,20 to 16,40 | 0,50 to 4,00 | 3,00 to 10,00 | 44,50 | 26,50 | 9,00 | 15,90 | 22 | |||||
| 02001002031 | 16,20 to 16,40 | 0,50 to 4,00 | 5,00 to 10,00 | 44,50 | 26,50 | 9,00 | 15,90 | 22 | |||||
| 02001002032 | 20,20 to 20,40 | 0,50 to 4,00 | 3,00 to 13,00 | 43,50 | 30,30 | 9,00 | 19,90 | 25 | |||||
| 02001002033 | 20,20 to 20,40 | 0,50 to 4,00 | 5,00 to 12,00 | 43,50 | 30,30 | 9,00 | 19,90 | 24 | |||||
| 02001002034 | 20,20 to 20,40 | 0,50 to 4,00 | 6,00 to 12,00 | 43,50 | 30,30 | 9,00 | 19,90 | 24 | |||||
| 02001002035 | 20,20 to 20,40 | 0,50 to 4,00 | 7,00 to 13,00 | 43,50 | 30,30 | 9,00 | 19,90 | 25 | |||||
| 02001002036 | 25,20 to 25,40 | 0,50 to 4,00 | 8,00 to 17,00 | 45,50 | 36,30 | 9,00 | 24,90 | 29 | |||||
| 02001002037 | 25,20 to 25,40 | 0,50 to 4,00 | 11,00 to 17,00 | 45,50 | 36,30 | 9,00 | 24,90 | 29 | |||||
| 02001002038 | 32,20 to 32,40 | 0,50 to 4,00 | 11,00 to 21,00 | 51,50 | 43,20 | 9,00 | 31,90 | 36 | |||||
| 02001002039 | 32,20 to 32,40 | 0,50 to 4,00 | 15,00 to 21,00 | 51,50 | 43,20 | 9,00 | 31,90 | 36 | |||||
| 02001002040 | 40,20 to 40,40 | 0,50 to 4,00 | 16,00 to 28,00 | 58,00 | 55,20 | 13,20 | 39,90 | 46 | |||||
| 02001002041 | 40,20 to 40,40 | 0,50 to 4,00 | 19,00 to 28,00 | 58,00 | 55,20 | 13,20 | 39,90 | 46 |
