Our threaded rectangular tube insert have been designed for rectangular tubes.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube
Tube Thickness
H
B
L
L1
d1



More
Info.
00300400519 30 x 15 1,00 to 2,00 30,00 18,00 32,00 27,50 3,00
00300400520 30 x 20 1,00 to 2,00 30,30 23,00 32,00 27,00 3,00
00300400521 40 x 20 1,00 to 2,00 40,50 23,00 33,00 26,00 3,00
00300400522 45 x 20 1,00 to 2,00 45,50 24,00 32,00 26,00 3,40
00300400523 50 x 20 1,00 to 2,00 51,50 25,00 33,00 27,00 3,00

If you are interested in our family LMF, you may be interested in these families as well:

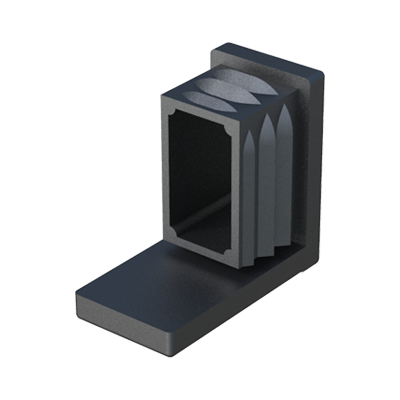

Our ribbed angle glider has been designed for rectangular traverse ends with a screw hole. If you want it without hole, please visit our family LMHZA. It is also available for square tube: LMH.   Our ribbed angle glider has been designed for rectangular traverse ends. If you want it with hole, please visit our family LMHZ. It is also available for square tube, but with hole: LMH.
