Releasable clamp on fin base MACS


Description and features

Releasable clamp with fin clip base and variable panel thickness.
  Possible to get dyed colors

Technical documentation and compliance

  • Drawing PDF
  • UL94  V2
  • IP
  • RoHS
  • Measures expressed inMillimeters
  • Video

Product images and technical drawings

Product view

Releasable clamp on fin base MACS - Product view

Technical drawing

Releasable clamp on fin base MACS - Technical drawing

Video


Part numbers and dimensions of Releasable clamp on fin base

Reference
Panel hole size
Panel thickness
D
A
C



More
Info.
00101100064 6,50 0,50 to 5,00 8,89 11,11 7,62

If you are interested in our family MACS, you may be interested in these families as well:

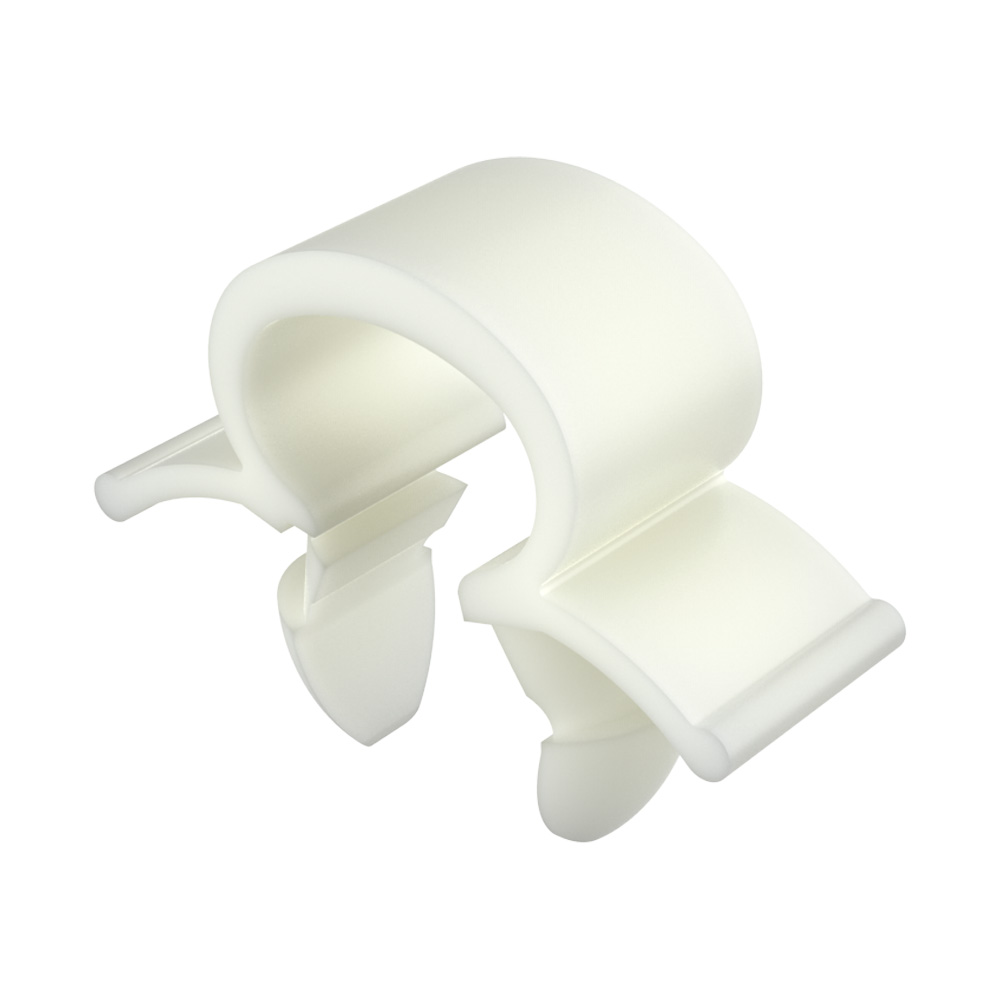

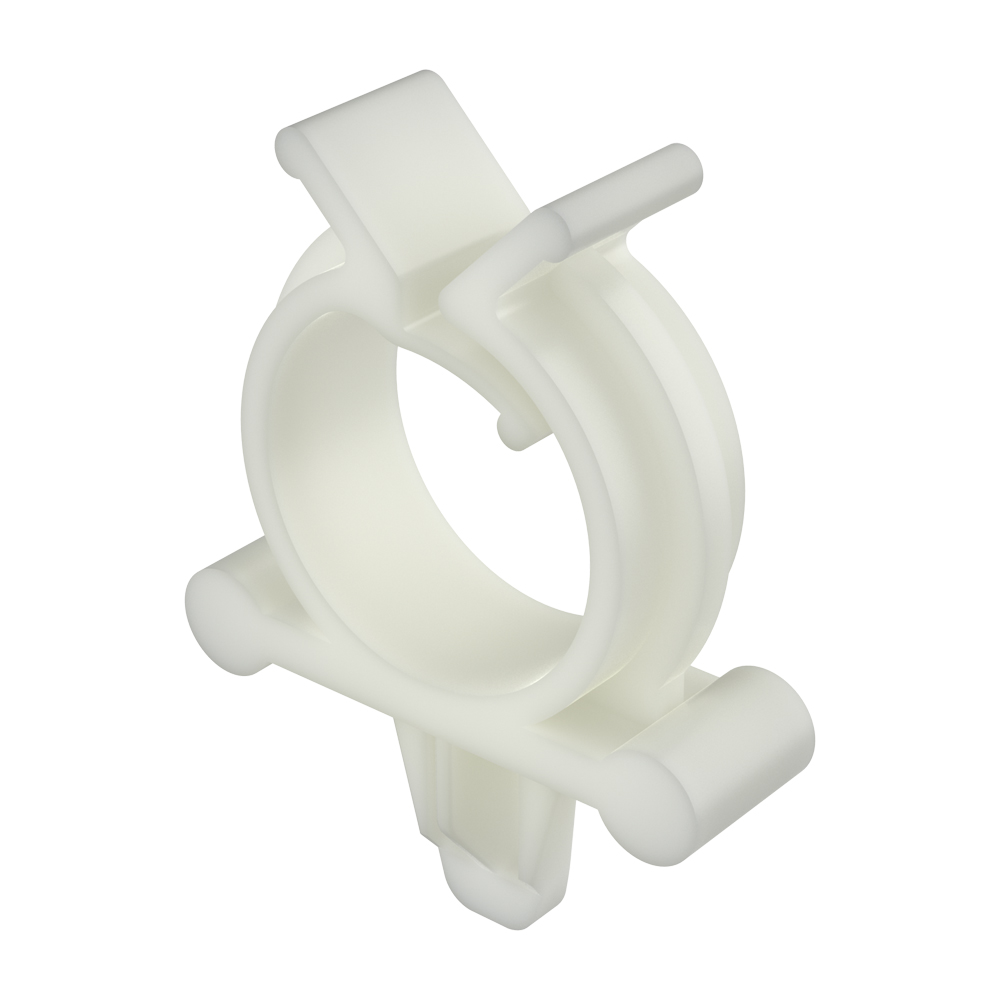

Releasable clamp on fin base MACR   Cord clip with push mount MAPU   Omega Clip Clamp MAPA
