Description and features
Our reverse locking PCB support substitutes very easily the regular supports that use screws. One of the ends can easily be released for quick substitutions. It is very useful for elements that must be removed frequently, and it has a high workability.
Possible to get dyed colors Product images and technical drawings

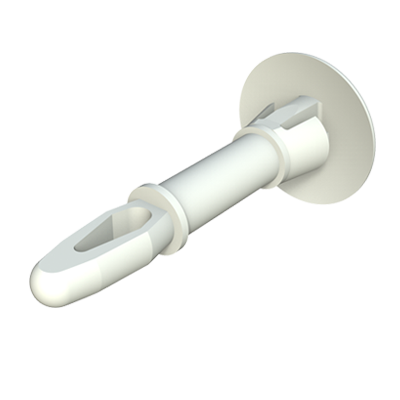

Product view
Technical drawing
Video
Part numbers and dimensions of Reverse locking PCB support
| Reference | L |
Hole size Anchor 1 |
Hole size Anchor 2 |
Panel thickness 1 |
Panel thickness 2 |
H1 / H2 |
A1 / A2 |
C / D |
More Info. |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 03501400060 | 5,00 | 6,50 | 4,00 | 1,60 to 2,00 | 1,60 | 1,50 / 10,10 | 10,20 / 4,50 | 2,50 / 5,00 | |||||
| 01301400100 | 6,40 | 4,75 | 3,18 | 1,50 to 1,60 | 1,57 | · / 8,70 | 9,50 / 3,70 | 2,00 / · | |||||
| 01301400101 | 6,40 | 4,75 | 3,18 | 1,50 to 1,60 | 1,57 | · / 4,80 | 9,50 / 4,37 | 2,80 / · | |||||
| 00101100209 | 6,50 | 4,75 | 3,18 | 1,50 to 1,60 | 1,50 to 1,60 | 1,52 / 8,74 | 9,53 / 3,70 | 2,00 / 4,35 | |||||
| 01301400103 | 7,90 | 4,75 | 3,18 | 1,50 to 1,60 | 1,57 | 1,20 / 8,70 | 9,50 / 3,70 | 2,00 / · | |||||
| 00101100210 | 9,50 | 4,75 | 3,18 | 1,50 to 1,60 | 1,50 to 1,60 | 1,52 / 8,75 | 9,53 / 3,80 | 2,00 / 4,50 | |||||
| 01301400130 | 9,50 | 6,00 | 4,00 | 1,60 | 0,80 to 1,20 | 1,50 / 10,20 | 10,00 / 4,45 | 2,50 / 5,00 | |||||
| 03501400050 | 9,65 | 4,75 | 3,18 | 1,50 to 1,60 | 1,60 | 1,40 / 8,70 | 9,50 / 3,53 | 2,00 / 4,20 | |||||
| 01301400051 | 12,70 | 6,00 | 4,00 | 1,60 | 0,80 to 1,20 | · / 10,20 | 10,00 / 4,45 | 2,50 / · | |||||
| 03501400100 | 15,95 | 5,40 | 4,00 | 1,20 to 2,00 | 1,60 | 1,50 / 10,00 | 12,70 / 4,50 | 4,80 / 2,50 | |||||
| 00101100240 | 16,00 | 5,40 | 4,00 | 1,50 to 1,60 | 1,50 to 1,60 | 1,60 / 10,31 | 12,80 / 4,50 | 2,35 / 5,20 |
