Our LGLR tube inserts are intended for its use with round tubes. These articles stand out for their design with spherical head and high-quality finish.

These inserts, with a wide range of tube outer diameters from 16 mm to 76.2 mm, have wings for a better grip once installed and are made of LDPE (Low Density Polyethylene ). The appropriate codes for tubes with measurements typical of the imperial system, commonly used in Anglo-Saxon countries, are those in which dimension D is expressed in inches (R).

Most of the articles in this family are available in black, grey and white as standard colors, as well as in RAL of your choice under request (contact our commercial department to consult the conditions of sale).
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (D)
Tube Thickness (G)
H
L



More
Info.
00700800620 16 1,00 to 2,00 7,50 12,00
00300400228 16 1,50 7,30 12,00
00700800621 18 1,00 to 2,00 8,00 12,00
00300400229 18 1,50 8,80 11,50
00700800622 19 1,20 to 2,00 9,50 14,00
00700800623 20 1,00 to 2,00 9,50 15,50
00300400230 20 1,50 10,00 15,50
00300410071 21,34
(R 1/2)
2,65 10,65 20,00
00700800624 22 1,00 to 1,50 10,50 15,50
00700800625 22 1,50 to 2,00 10,50 15,50
00300400231 22 1,50 11,00 15,50
00700800626 25 1,00 to 2,00 10,50 15,50
00300400232 25 1,50 11,50 15,50
00300410072 26,70
(R 3/4)
2,65 13,45 20,00
00700800627 27 1,00 to 2,00 13,50 15,50
00700800628 28 1,00 to 2,00 14,00 15,50
00300400233 28 1,50 14,00 14,50
00700800630 30 1,50 14,20 17,50
00700800631 32 1,50 16,00 20,00
00300410073 33,40
(R 1)
3,25 16,85 20,00
00700800632 34 1,20 to 2,50 17,00 19,50
00700800633 35 1,00 to 2,00 16,50 19,50
00300400237 40 1,50 21,70 11,80
00700800634 42 1,50 to 2,50 21,00 30,00
00300410074 42,4
(R 1·1/4)
3,25 21,20 25,00
00700800635 44,50 1,20 to 2,00 22,00 30,00
00700800636 45 1,50 to 2,50 22,00 30,00
00700800637 48,40 1,50 to 2,50 24,20 30,00
00700800638 48,40 3,00 to 5,00 24,20 30,00
00300410075 48,26
(R 1·1/2)
3,25 24,20 25,50
00700800639 50 1,50 25,50 29,50
00700800640 51 1,20 to 2,50 25,50 30,00
00700800641 57,20 1,50 to 2,50 29,00 35,50
00300400697 60 1,50 30,00 39,40
00700800642 60 1,50 to 2,50 30,00 40,00
00300410076 60,32
(R 2)
3,65 30,15 25,00
00700800643 76,20 2,00 to 3,50 38,50 40,00

If you are interested in our family LGLR, you may be interested in these families as well:

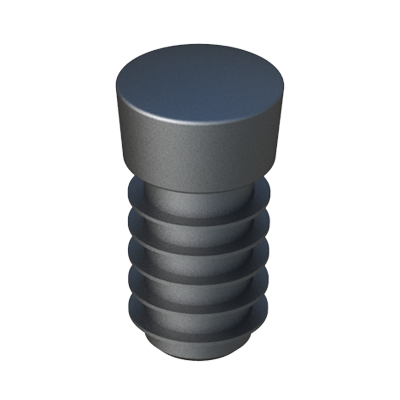

Our ribbed insert has a thin rounded head. If you are looking for a tube insert with a higher rounded head, please visit our family LGLR.   Our ribbed insert with enlarging head for round tubes has been designed for a good finish and greater stability.
