Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
Metric (M)
D
d
L
H
Maximum Weight (Kgs.)



More
Info.
01200100308 48 1,50 M10 48,30 45,90 44,00 8,00 1.000
01200100309 48 1,50 M12 48,30 45,90 44,00 8,00 1.000
01200100310 48 1,50 M14 48,30 45,90 44,00 8,00 1.000
01200100311 48 1,50 M16 48,30 45,90 44,00 8,00 1.000
01200100312 48 1,50 M20 48,30 45,90 44,00 8,00 1.000
01200100321 60 1,50 M14 60,30 57,90 44,00 8,00 1.500
01200100322 60 1,50 M16 60,30 57,90 44,00 8,00 1.500
01200100323 60 1,50 M20 60,30 57,90 44,00 8,00 1.500
01200100324 60 1,50 M24 60,30 57,90 44,00 8,00 1.500
01200100317 60 2,00 M14 60,30 56,90 44,00 8,00 1.500
01200100318 60 2,00 M16 60,30 56,90 44,00 8,00 1.500
01200100319 60 2,00 M20 60,30 56,90 44,00 8,00 1.500
01200100320 60 2,00 M24 60,30 56,90 44,00 8,00 1.500
01200100313 60 2,50 M14 60,30 55,90 44,00 8,00 1.500
01200100314 60 2,50 M16 60,30 55,90 44,00 8,00 1.500
01200100315 60 2,50 M20 60,30 55,90 44,00 8,00 1.500
01200100316 60 2,50 M24 60,30 55,90 44,00 8,00 1.500

If you are interested in our family JTPU, you may be interested in these families as well:

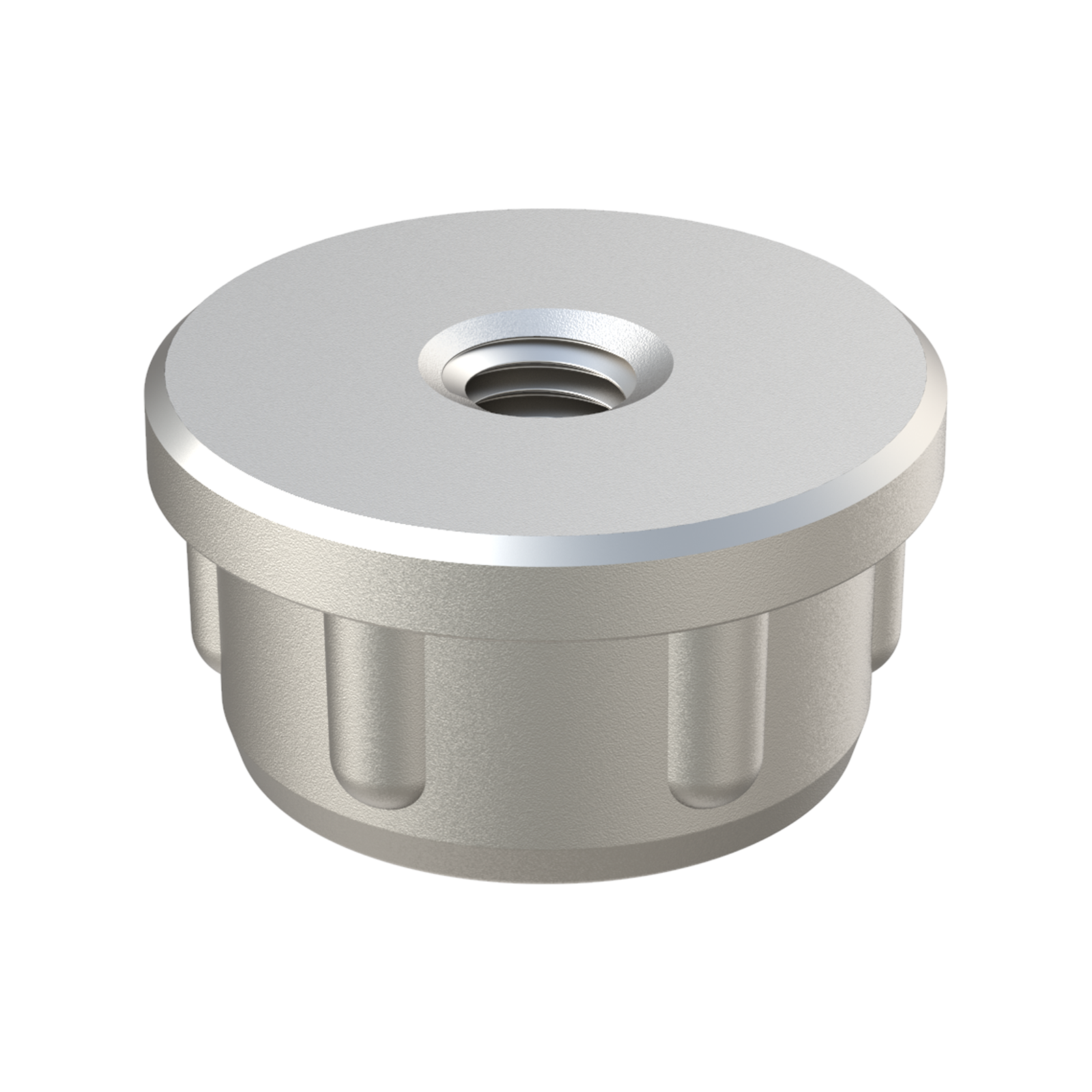

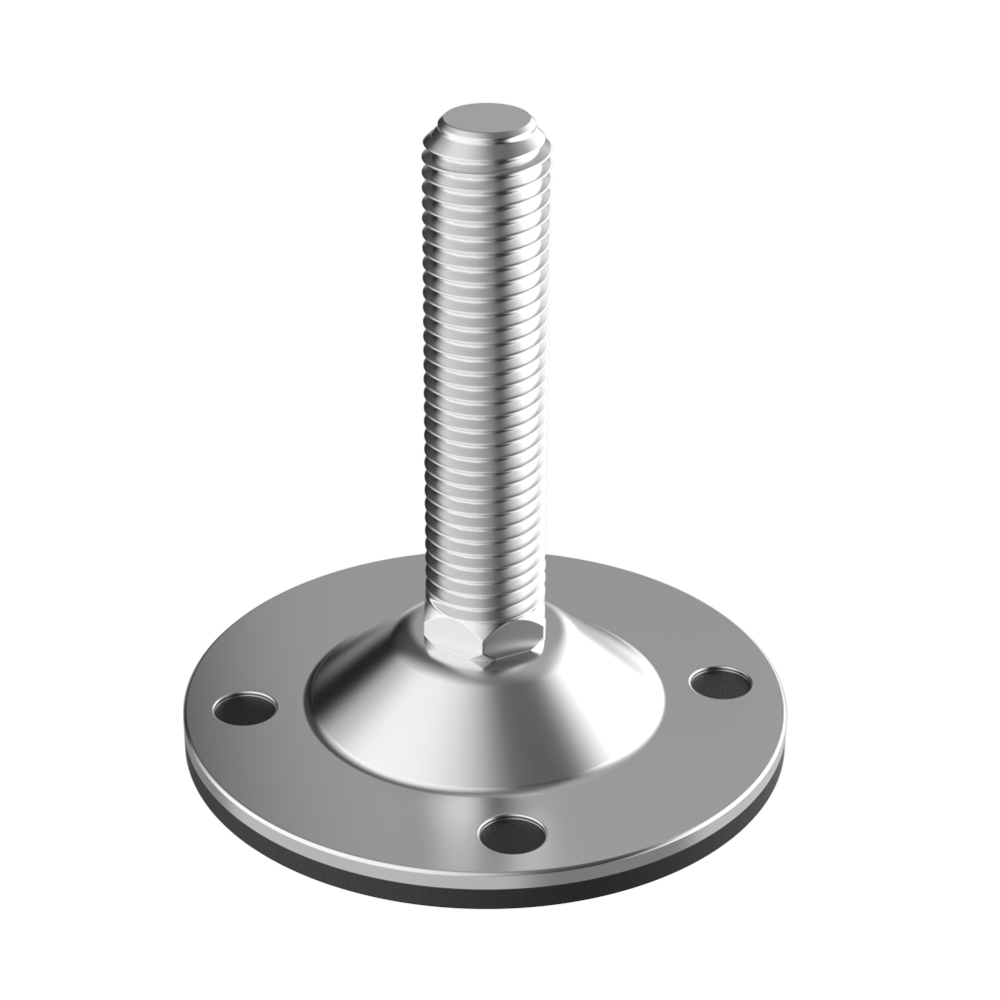

Our threaded insert is manufactured in a Zamak alloy for round tubes. It is also available for square tubes: LJM, for rectangular tubes: LJMZ, and for oval tubes: LJMO. Our finishing parts LRR can be used for the inserts designed for 60 mm tubes.   Our heavy duty adjustable foot has a reinforced tilting base of 15º that resists a weight up to 1,300 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties.
<br>
The standard product is made in stainless steel type 304 and it can also be made in type 316 on request. Available also with anti-skid base made of TPV.   Our adjustable foot has been designed for heavy duty. It resists up to 2035kg.   Our adjustable foot has been designed for heavy duty. It resists up to 2035kg.   Our heavy duty adjustable foot has a reinforced tilting base of 15º  that resists a weight up to 1,478 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties. It can also be supplied with a non-slip base.
<br>
The standard product is made in stainless steel type 304 and it can also be made in type 316 on request.
