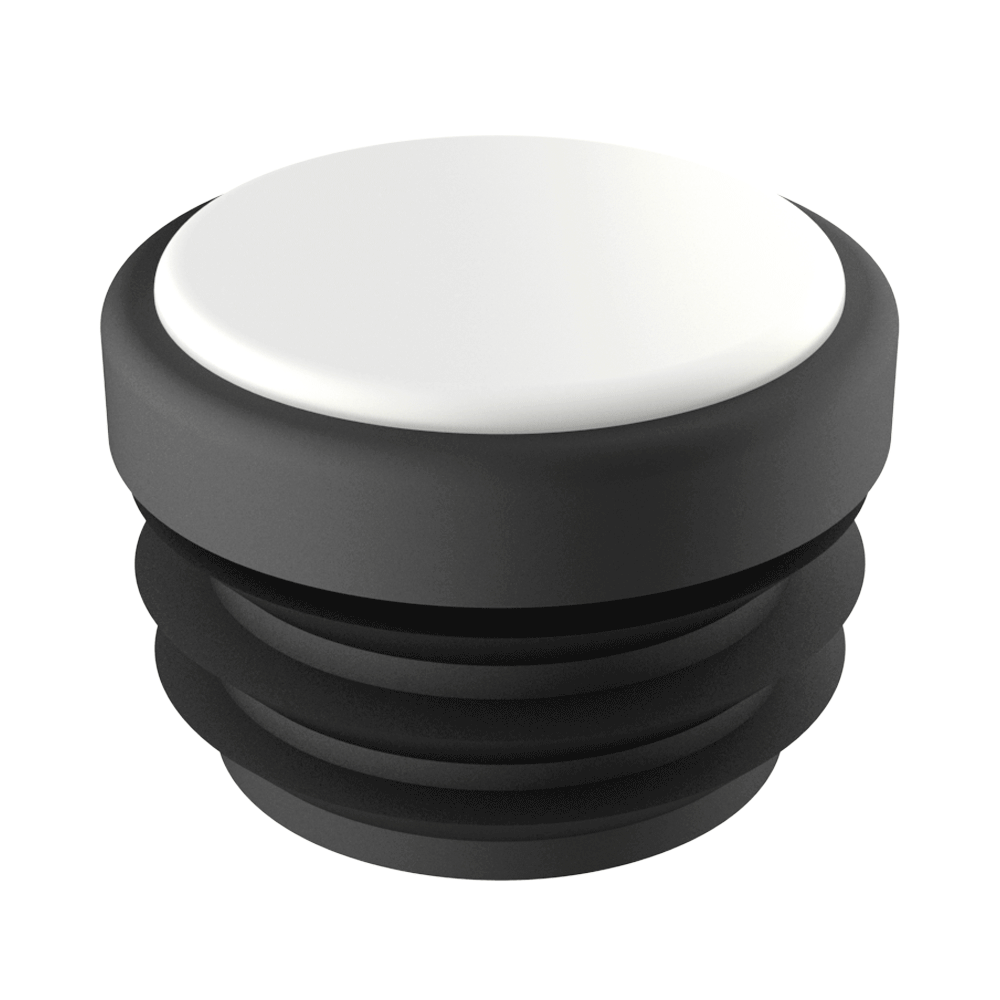

Round inserts plugs with felt base for chairs and furniture. We incorporate the felt by friction welding, which gives it excellent adhesion compared to other felts installed using glues or other systems. The felts that we indicate with greater hardness (++) are made of synthetic material and are more resistant to wear and tear), while those with lower resistance (+) are made with natural wool and therefore have better sound-reducing properties and thermal, acoustic and mechanical protection.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube (D)
Tube Thickness
H
d
L
d1
Hardness Felt



More
Info.
00700800700 12 0,80 to 2,00 7,00 3,50 10,00 10,60 ++
00700800701 13 0,80 to 2,00 6,80 5,50 11,50 12,20 ++
00700800702 14 0,80 to 2,00 8,50 6,00 10,50 13,00 ++
00700800703 15 0,80 to 2,00 6,50 7,10 11,50 13,90 ++
00300400911 15 1,50 to 2,00 7,00 8,00 9,60 13,20 +
00700800704 16 0,80 to 2,00 8,50 7,70 11,50 15,00 ++
00300400912 16 1,50 to 2,00 8,50 10,00 10,00 14,10 +
00700800705 18 0,80 to 2,50 8,50 9,80 11,50 16,90 ++
00300400913 18 1,50 to 2,00 8,00 13,30 12,00 16,80 +
00700800706 19 0,80 to 2,50 8,50 11,00 11,50 18,20 ++
00300400914 19 1,50 to 2,00 7,00 14,20 11,50 17,80 +
00700800707 20 0,80 to 2,50 8,50 12,10 11,50 19,00 ++
00300400915 20 1,50 to 2,00 7,00 15,00 11,50 19,00 +
00700800708 22 0,80 to 3,00 8,50 13,80 11,50 20,80 ++
00300400916 22 1,50 to 2,00 7,00 15,80 11,50 20,60 +
00700800709 23 0,80 to 3,00 8,50 14,50 11,50 21,90 ++
00700800710 25 1,00 to 3,00 8,50 16,40 11,50 23,50 ++
00300400917 25 1,50 to 2,00 8,00 18,80 11,50 24,00 +
00700800711 26 0,80 to 3,00 8,50 17,70 11,50 24,90 ++
00700800712 28 0,80 to 2,50 8,50 19,70 11,50 26,70 ++
00300400918 28 1,50 to 2,00 8,00 21,50 11,50 27,00 +
00700800713 30 0,80 to 2,50 8,50 22,10 11,50 28,90 ++
00300400919 30 1,50 to 2,00 8,00 23,40 11,50 29,00 +
00700800714 32 0,80 to 3,00 8,50 23,80 11,50 30,90 ++
00300400920 32 1,50 to 2,00 8,00 26,30 11,50 30,50 +
00700800715 35 1,00 to 3,00 8,50 27,10 11,50 33,80 ++
00700800716 40 1,00 to 3,00 8,50 31,40 11,50 38,50 ++
00700800717 42 0,80 to 2,50 8,50 33,70 11,50 41,00 ++

If you are interested in our family LGFL, you may be interested in these families as well:

Round glides with <i>felt base for chairs and furniture</i>. We incorporate the felt during the injection process, so it offers much <b>more resistance than those felts installed through adhesives or other systems</b>. The felt comes from the wool and has properties such as <i>insulation and thermal, acoustic and mechanical protection</i>, so its application is essential in the furniture industry, specifically in glides for chairs, tables or desks.   Our tube insert for round tubes LGLP is ideal for chairs. It can be produced in <b> RAL colors</b> on demand and its base is produced and offered in various materials. As a sum up, here goes their caracteristics:
<br><br>
* <i><b>PA6 base (nylon)</b></i>: good sliding and no wear-down. For parquet and wood flooring.
<br>
* <i><b>POM+PTFE base </b></i>: good sliding,  friction-proof, vibration-proof and chemically resistant. For textile flooring like carpet or rugs
<br>
* <i><b> EVA body (rubbery) with POM+PTFE </b></i>:  antiskid, vibration-proof, and sound-proof. For ceramic and wood flooring. Recommended to reduce sound (meeting rooms, theaters)...
<br>   Our round tube glides are tiltable thanks to their design and allow them to reach an angle of up to <b> 20º </b>. The body of the tip is made of <b> Low-density polyethylene </b>.<br><br>
The piece has different bases which are manufactured / supplied in different materials that, in summary, have the following features: <br><br>
* <i> With base of <b> PA6 (Nylon 6) </b> </i>: It offers a <b> good sliding and anti-wear </b> to the standard part. Mainly for parquet and wooden floors. Also valid for humid environments / floors or outdoors. <br>
* <i> Based on <b> wool felt (FTR) </b> </i>: Perfect for <b> delicate and smooth floors </b> such as parquet. In addition, it gives <b> silencing properties </b> to the piece (Sound-reducing property) as well as <b> good sliding and anti-scratch protection </b>. Not recommended for outdoor or wet floors. <br>
* <i> With <b> metal base (S)</b> </i>: Provides a <b> good finish and greater resistance. </b> Recommended for exteriors, non-smooth surfaces (concrete, carpets ...) or elastic floors (pavilions, courts ...). <br><br>
Contact our commercial department if you want special colors, additional dimensions and custom designs, all under a minimum order. <br>
More information on the downloadable generic drawing.
