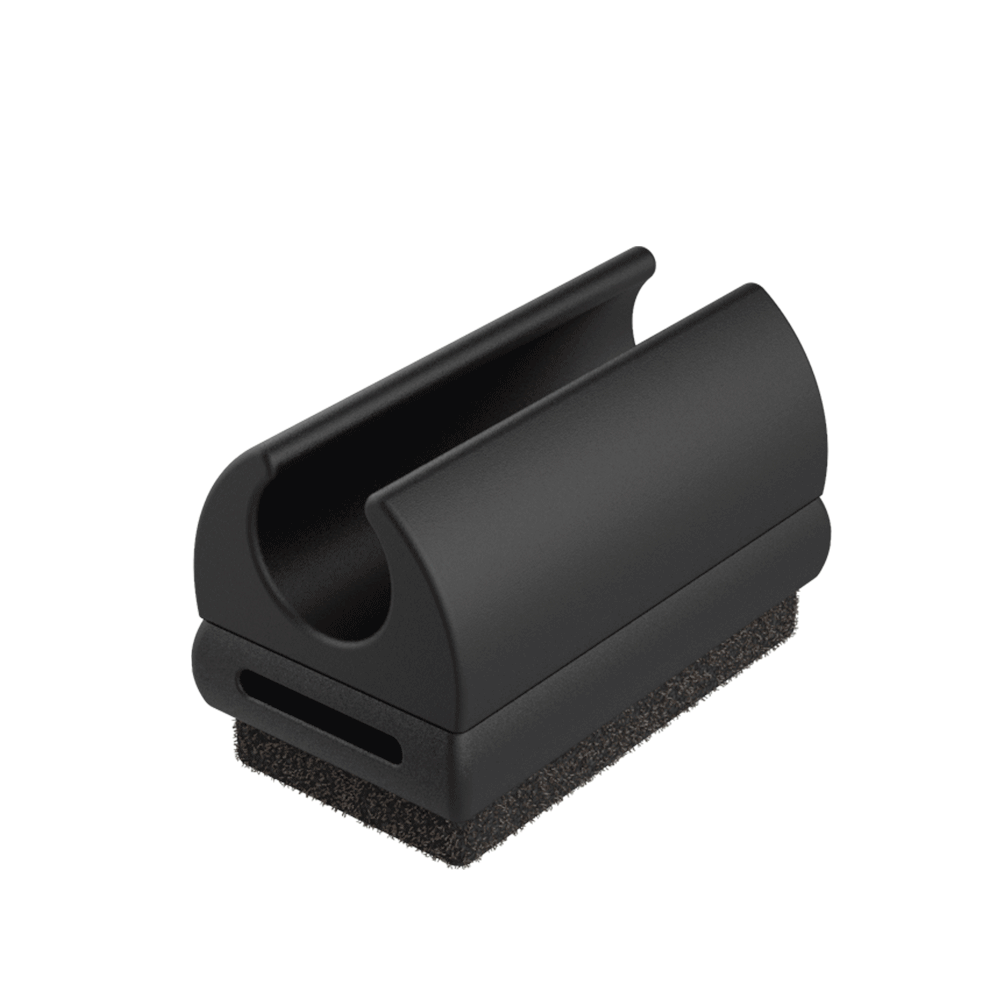

Our LWR saddle foot for round tubes skid type, made of Polyamide 6, is ideal for round metal tube chairs. It is inserted under pressure by a snap-in central peg, which locks and immobilizes the piece in its position to prevent it from moving once placed.
The piece can be supplied with bases that are made of various materials which, in summary, have the following characteristics:

* Sliding PTFE (Teflon) base, which gives good sliding and minimal friction, both dynamic and static, on most types of floors. The ensemble of the base is by a powerful acrylic adhesive.

* Base in Sliding wool felt, perfect for delicate floors such as parquet. Additionally, it gives noise reducing properties to the piece The ensemble of the base is by a powerful acrylic adhesive.
* Base in TPU (Thermoplastic Polyurethane) with a degree of hardness ≈ 80 Shore. This material provides a very effective anti-slip property for a wide range of floor types. It also provides high durability and high protection for the floor, since it prevents bumps/scratches, as well as a “noise-reducing” effect, with good noise damping. The ensemble of the base is by a powerful acrylic adhesive.
Contact our commercial department if you want special colors, additional dimensions and personalized designs, available upon request with a minimum order.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For tube
L
D
H
d
B
C



More
Info.
00700600020 16 to 17 28,00 20,00 16,00 5,00 25,00 12,00
00700600021 18 to 20 29,75 24,50 18,60 5,50 25,00 15,00
00700600022 21 to 22 30,00 26,50 19,30 5,80 25,00 15,00
00700600023 24 to 25 42,00 29,50 24,30 5,60 31,00 17,00
