Semi blind grommet - ISC Plastic Parts

Products

This semi-blind grommet is ideal to protect cables and wires passing through metal panels. Our semi-blind grommet is quick and simple to install.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	Hole size (A)	Panel thickness (B)	C	F	D	E							More Info.

01012000215	19,60	2,00	15,50	2,10	3,90	23,90
01012000217	26,00	2,40	20,80	2,40	3,80	30,00

If you are interested in our family HYPAH, you may be interested in these families as well:

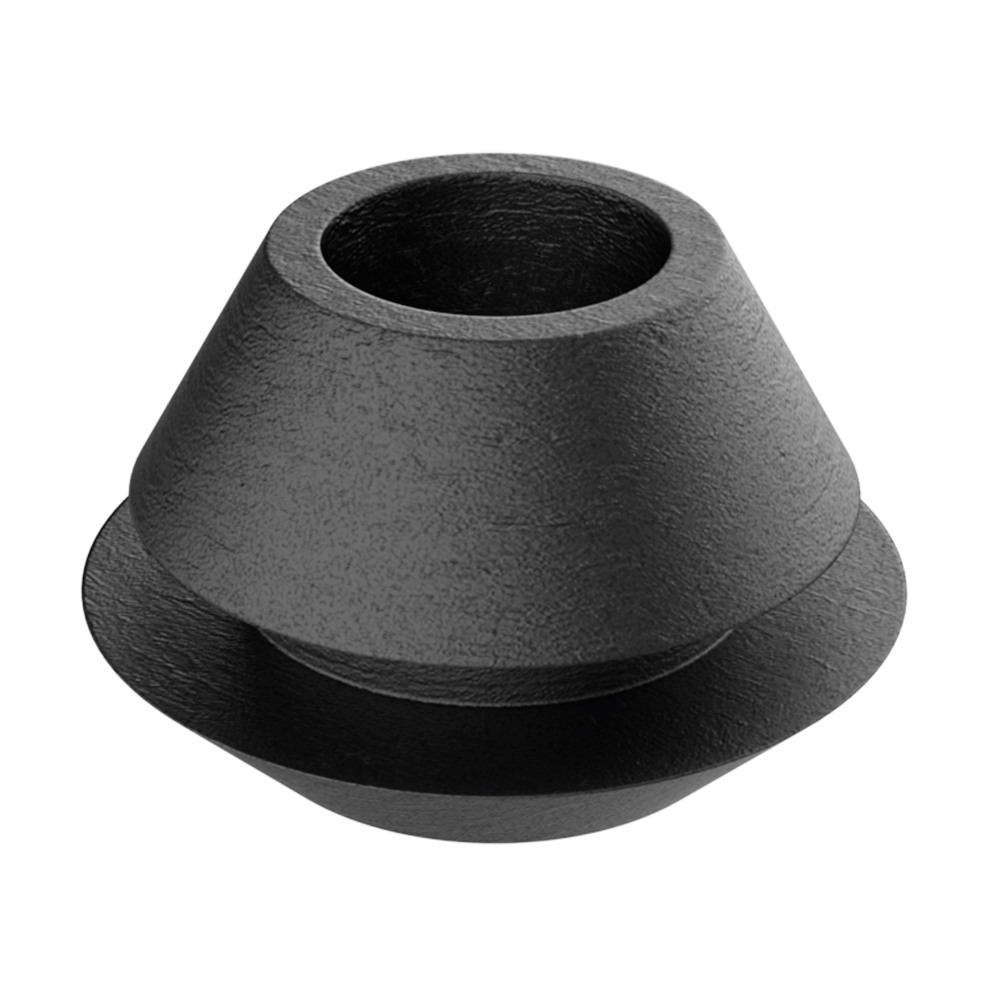

Our open and conical HYPAG grommets are designed to effectively protect cables as they pass through metal panels, preventing wear due to friction. Their <b>installation is quick and easy</b>, with no need for special tools, making them a practical solution for a wide range of industrial and electronic applications.<br>
Depending on the reference, they are manufactured in different materials:<br><br>
<b>Neoprene</b>: Known for its good thermal resistance and ability to remain flexible at low temperatures. It also offers excellent resistance to aging, ozone, grease, gasoline, and organic solvents, as well as moderate resistance to oils. Its superior flexibility and good electrical properties make it ideal for demanding environments. Operating temperature range: <b>-30 °C to +90 °C</b>. <br><br>
<b>PVC</b>: Known for its resistance to acids and mineral oils. Suitable for standard industrial environments. Depending on the reference, it is flame-retardant and self-extinguishing, providing greater safety in thermal risk scenarios. Operating temperature range: <b>–25 °C to +60 °C</b>.<br><br>
<b>TPE</b>: Ideal for high thermal demand applications (range: <b>-50 °C to +125 °C</b>). Only reference 01012000224 is made from this material.<br><br>
<i>The geometry of each reference may vary slightly. For more information, consult our generic drawing or request the specific drawing for the desired reference.</i>
