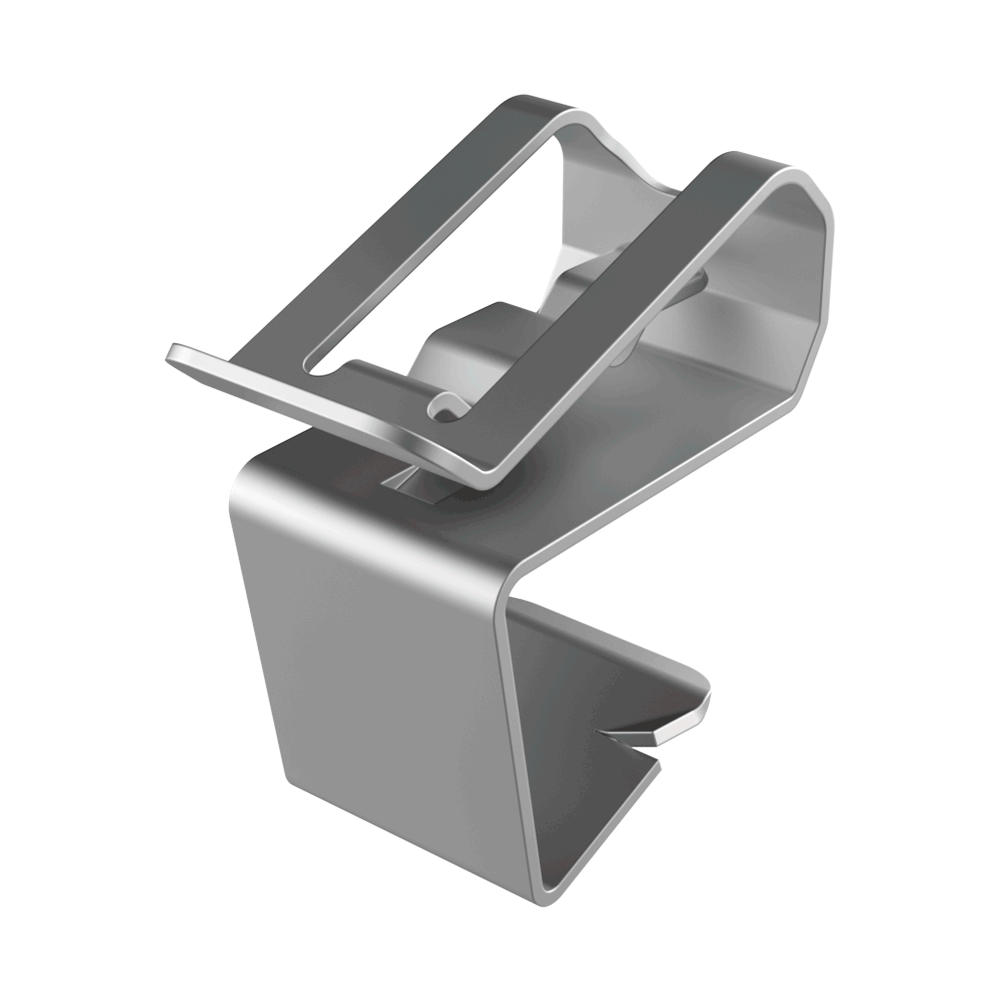

Special panel edge clip for two homogeneous cables SFE

Description and features

The SFE special edge panel clip is designed for the holding and guiding of two homogeneous cables in industrial and renewable energy applications, ensuring an orderly and safe organization of conductors. Made of AISI 304 stainless steel, it provides excellent mechanical strength and corrosion resistance, maintaining its performance even in aggressive environments or under extreme working conditions.

This model is specifically designed for next-generation photovoltaic modules with frameless profiles, where it is installed directly onto the frame. Installation is quick and easy by manual pressure, remaining firmly secured thanks to the locking tab. For removal or repositioning, only a screwdriver is required, allowing practical handling without special tools. The rounded edges protect cable insulation, while the robust geometry ensures a stable and durable anchorage.

With a thickness of 0.635 mm, this clip exceeds conventional market standards and guarantees a minimum service life of 20 years. In addition, its operating temperature range from -40 °C to +300 °C ensures reliable performance under the most demanding conditions.

The SFE clip is ideal for frameless photovoltaic modules, as well as for electrical systems, marine installations, telecommunications, industrial machinery and control panels, where efficient, safe and long-lasting cable management is required.
