Spin clip unslotted knurled screw

Products

The design of this spin clip combines the advantages of a push-in type fastener with a unslotted knurled screw. For fast assembly, the clip can be pushed into a threaded hole, and then screwed in for a tighter fit, or screwed out for disassembly.

Drawing PDF:
UL94: V2
IP:
RoHS:
Measures expressed in: Millimeters

Reference	Hole size	L	D	A									More Info.

00100300203	5,16	9,53	9,53	2,36
00100300204	5,16	12,70	9,53	2,36
00100300205	5,16	15,88	9,53	2,36
00100300206	5,16	19,05	9,53	2,36
00100300207	5,16	25,40	9,53	2,36

If you are interested in our family MCPEL, you may be interested in these families as well:

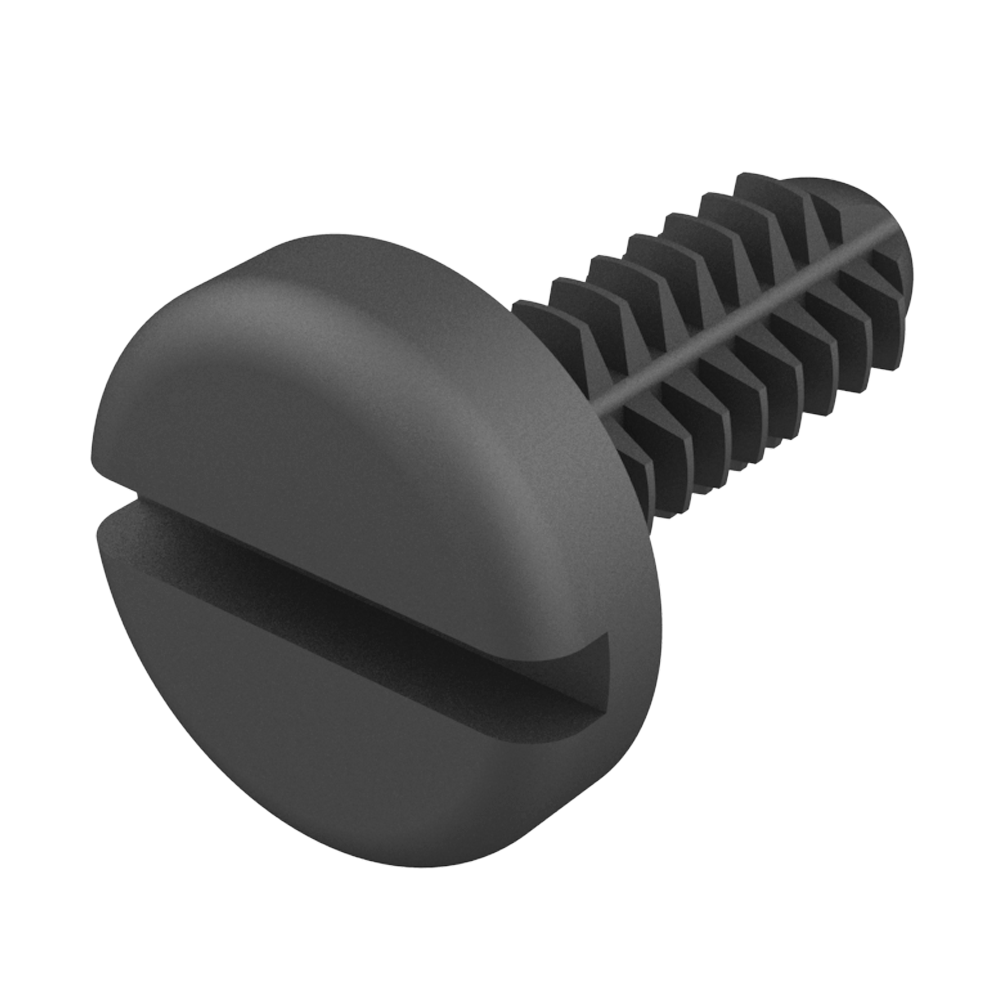

The design of this spin clip combines the advantages of a push-in type fastener with a slotted pan screw. For fast assembly, the clip can be pushed into a threaded hole, and then screwed in for a tighter fit, or screwed out for disassembly.

The design of this spin clip combines the advantages of a push-in type fastener with a slotted round screw. For fast assembly, the clip can be pushed into a threaded hole, and then screwed in for a tighter fit, or screwed out for disassembly.

The design of this spin clip combines the advantages of a push-in type fastener with a slotted hexagonal screw. For fast assembly, the clip can be pushed into a threaded hole, and then screwed in for a tighter fit, or screwed out for disassembly.
