Our threaded tube insert is manufactured in ZCS. It is also available for rectangular tubes, please visit our family LJMSZ.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube
Tube Thickness
Metric Thread
H
L
Type



More
Info.
00300410117 25 x 25 1,50 to 2,50 M8 2,00 28,00 B
00300410070 30 x 30 1,50 to 2,50 M10 2,20 30,00 A
00300410118 40 x 40 1,50 to 2,50 M10 2,50 30,00 A

If you are interested in our family LJMS, you may be interested in these families as well:

Rotatory wheel with brake made of polypropylene. Its threaded stud makes it ideal to be placed in threaded inserts. The recommended individual loading capacity is 50 kilos.   Our heavy duty adjustable foot has a reinforced base that resists a weight up to 3,000 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties. It can also be supplied with non-slip base.
<br>

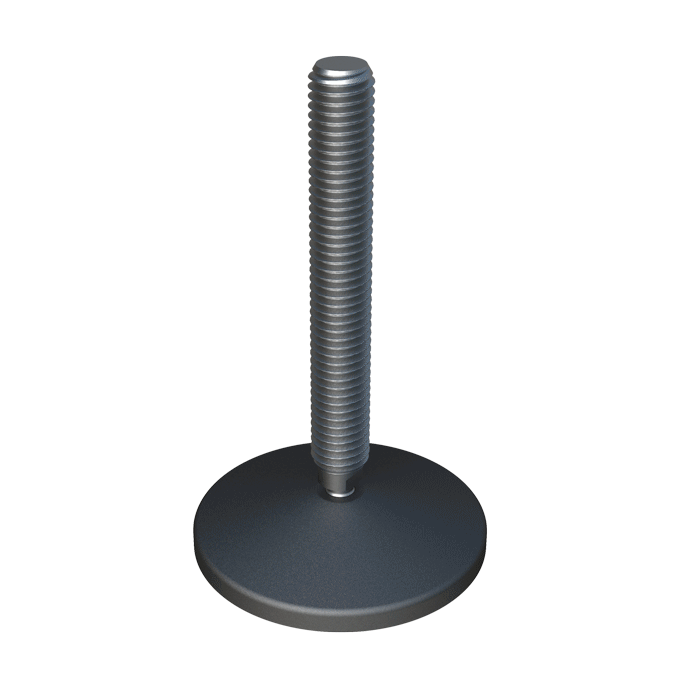

The standard product is made in stainless steel type 304 and it can also be made in type 316 on request.   Our heavy duty adjustable foot has a reinforced tilting base of 15º that resists a weight up to 1,300 Kg. It has been designed for applications that require both good surface finish and very good mechanical properties.
