Description and features

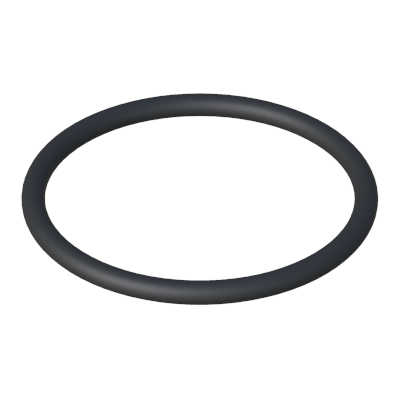

Threaded plugs that effectively protect internal threads in hydraulic and pneumatic equipment during coating processes or transport. We recommend our plugs manufactured in PA6 for high temperature applications (up to 80°C). Some references can be supplied with an O-ring upon request, please contact us.Product images and technical drawings
Product view
Technical drawing
Video
Part numbers and dimensions of Threaded plug for Metric and BSP/GAS threads
| Reference | Suitable for |
D |
H1 |
H2 |
L |
SW |
Thread Type |
More Info. |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01500740001 | M10 x 1,00 | 14,00 | 5,50 | 11,50 | 17,00 | 10 | M | ||||||
| 01500740056 | M33 x 2,00 | 39,60 | 11,50 | 15,60 | 27,10 | 27 | M | ||||||
| 01500740057 | M42 x 2,00 | 49,80 | 11,50 | 16,60 | 28,10 | 36 | M | ||||||
| 01500740063 | 1 in | 39,70 | 13,60 | 15,80 | 29,40 | 27 | GAS/BSP | ||||||
| 01500740064 | 1 · 1/4 in | 49,80 | 13,50 | 17,80 | 31,30 | 36 | GAS/BSP | ||||||
| 01500740065 | 1 · 1/2 in | 55,40 | 13,50 | 16,50 | 30,00 | 41 | GAS/BSP | ||||||
| 01500740066 | 2 in | 68,20 | 13,50 | 16,60 | 30,10 | 55 | GAS/BSP |
