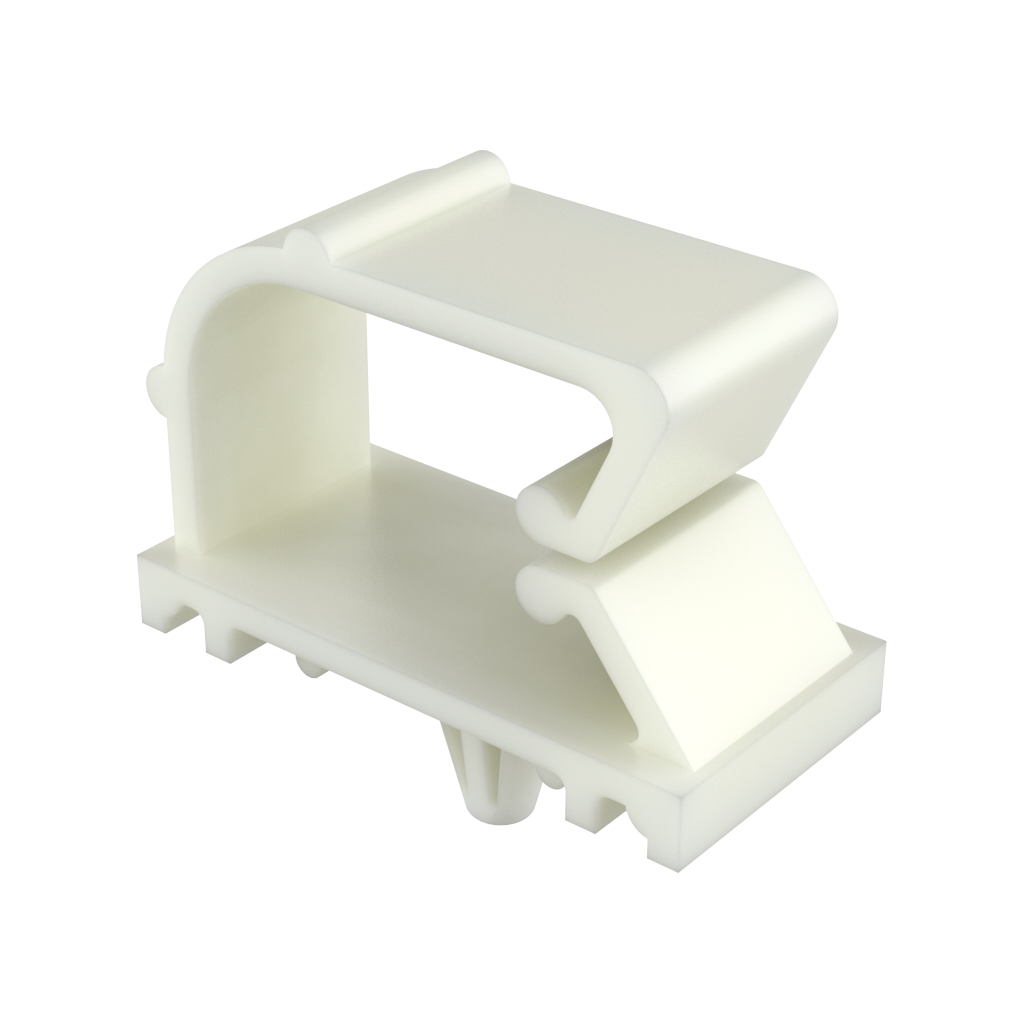

Our MAPX wire clip made of Polyamide 66 (PA66) have an anchoring system for quick and easy installation.
The locking clip ensures secure cable management and the top tab allows it to be opened and closed multiple times to easily add or remove cables.
The dimensions of the base also offer stable mounting.

Drawing PDF:
UL94:   V2
IP:
RoHS:
Measures expressed in: Millimeters


Reference
Panel Hole Size
Panel Thickness
D
C
E
B
F



More
Info.
01801200010 4,80 1,80 to 2,80 11,50 30,20 7,50 13,60 24,60
00101100537 6,35 0,50 to 1,78 19,05 34,67 5,08 17,02 22,10
