Our connector has been designed for square tubes. It has a 45º angle.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

THCZZ
THCZZ

Reference
For Tube
Tube Thickness
L
Angle (A)



More
Info.
02300400350 25 x 25 1,50 50,00 45º

If you are interested in our family THCZZ, you may be interested in these families as well:

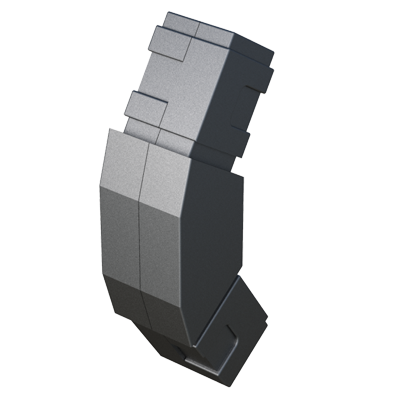

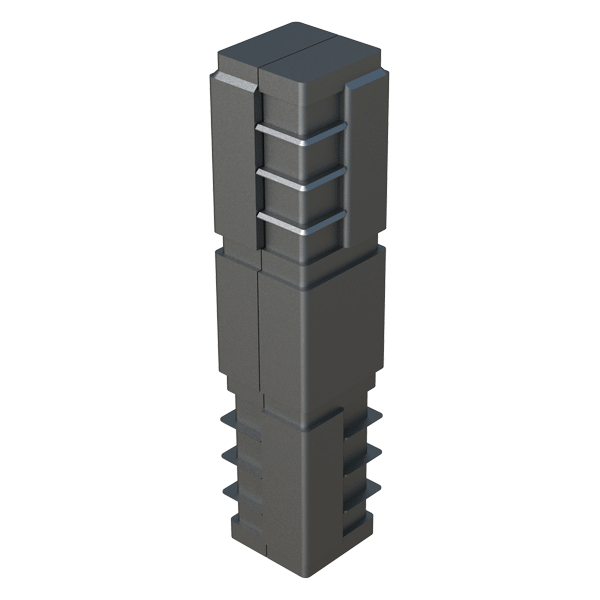

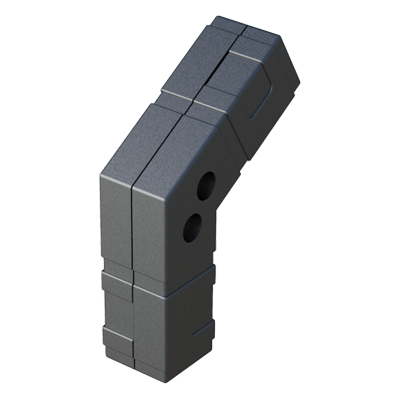

Our connector has been designed for square tubes. It has a 120º angle.   Our hinge 2-way connector has been designed for square tubes. It has an angle which goes from 0º to 190º, or which goes from 45º to 195º, depending on the reference.<br>*Item 02300400165 is supplied unassembled.   Our straight connector has been designed in order to connect 2 square tubes. It is supplied without internal metal core or with an internal steel core.   Our connector has been designed for square tubes. It has a 135º angle.
