The group LRV has been designed to fix 2 round tubes in parallel. The most popular application is to fasten and join chairs, to join them in a line. You will get a uniform and strong fastening assembly.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

LRV
LRV

Reference
For tube (D)
L
H



More
Info.
00300401320 18 60,00 30,00
00300401321 18 80,00 30,00
00300401322 18 100,00 30,00
00300401323 18 120,00 30,00
00300401324 18 140,00 30,00
00300401325 18 160,00 30,00
00300401015 20 60,00 30,00
00300401016 20 80,00 30,00
00300401017 20 100,00 30,00
00300401018 20 120,00 30,00
00300401019 20 140,00 30,00
00300401326 20 160,00 30,00
00300401020 22 60,00 30,00
00300401021 22 80,00 30,00
00300401022 22 100,00 30,00
00300401023 22 120,00 30,00
00300401024 22 140,00 30,00
00300401327 22 160,00 30,00
00300401025 25 60,00 30,00
00300401026 25 80,00 30,00
00300401027 25 100,00 30,00
00300401028 25 120,00 30,00
00300401029 25 140,00 30,00
00300401328 25 160,00 30,00

If you are interested in our family LRV, you may be interested in these families as well:

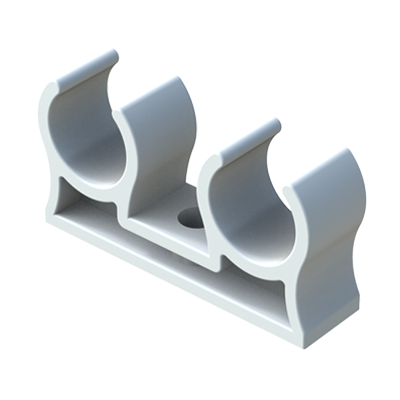

Connector to attach two round tubes in parallel, with slot for a nut to be able to set a stand. Made of PA6 (nylon), provides excellent mechanical strength as well as the temperatures, weather and impact resistance.   Connector to attach two round tubes in parallel, with slot for a nut to be able to set a stand. Made of PA6 (nylon), provides excellent mechanical strength as well as the temperatures, weather and impact resistance.   Double clamp for pipes, hoses and cables that can be fixed with M6 double thread screws.   Clamp for pipes, hoses and cables that can be fixed with M6 double thread screws.
