Clamp for tube - ISC Plastic Parts

Clamp for pipes, hoses and cables that can be fixed with M6 double thread screws.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	For Tube (D)	L	H	B	Thread (M)								More Info.

00200100035	6	14,50	12,50	10,00	M6
00200100036	8	16,20	13,50	9,70	M6
00200100037	10	19,40	17,70	11,78	M6
00200100038	12	21,20	19,30	11,80	M6
00200100039	14 to 15	24,00	20,60	13,50	M6
00200100040	16 to 18	31,10	23,80	16,60	M6
00200100050	20 to 22	36,70	27,70	17,80	M6
00200100052	28 to 30	45,00	34,00	20,00	M6
00200100053	35	50,00	42,00	22,00	M6
00200100054	42	57,50	48,00	23,00	M6

If you are interested in our family MTHO, you may be interested in these families as well:

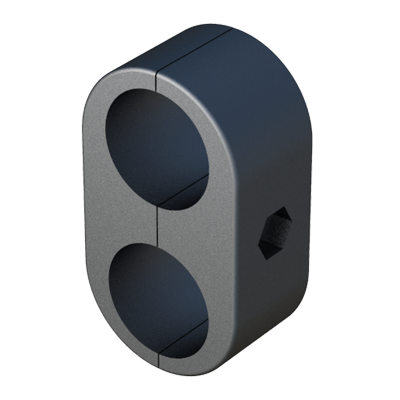

Connector to attach two round tubes in parallel, with slot for a nut to be able to set a stand. Made of PA6 (nylon), provides excellent mechanical strength as well as the temperatures, weather and impact resistance.

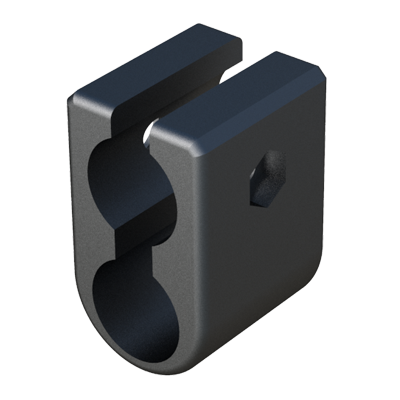

Connector to attach two round tubes in parallel, with slot for a nut to be able to set a stand. Made of PA6 (nylon), provides excellent mechanical strength as well as the temperatures, weather and impact resistance.

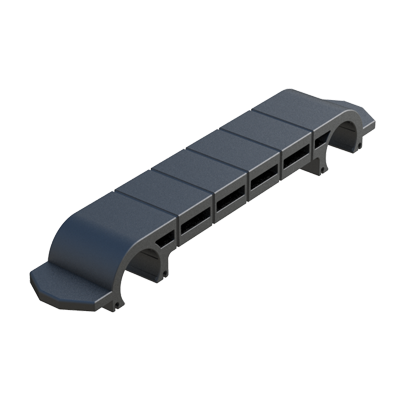

The group LRV has been designed to fix 2 round tubes in parallel. The most popular application is to fasten and join chairs, to join them in a line. You will get a uniform and strong fastening assembly.
