Our round ribbed connector with saddle is ideal to connect 2 round tubes in order to get a T connection. It gives you the possibility to connect 2 tubes of the same diameter, or 2 tubes with a different diameter.

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

LTRKA
LTRKA

Reference
For Tube
Tube Thickness
L
B / H
Nut Spot (SW) / Metric (M)



More
Info.
02300400353 15 1,00 20,00 15,00 / 2,00 M6
02300400354 16 1,00 20,00 16,00 / 2,00 M6
02300400355 16 1,50 20,00 16,00 / 2,00 M6
02300400356 18 1,00 20,00 18,00 / 2,00 M6
02300400357 18 1,50 20,00 18,00 / 2,00 M6
02300400358 20 1,00 20,00 20,00 / 2,00 M6
02300400359 20 1,50 20,00 20,00 / 2,00 M6
02300400360 22 1,00 20,00 22,00 / 2,00 M6
02300400361 22 1,50 20,00 22,00 / 2,00 M6
02300400362 23 1,00 26,50 23,00 / 2,00 M6
02300400363 24 1,00 20,00 24,00 / 2,00 M6
02300400364 24 1,50 20,00 24,00 / 2,00 M6
02300400365 25 1,00 26,00 25,00 / 2,00 M6
02300400366 25 1,50 26,00 25,00 / 2,00 M6
02300400367 25 2,00 26,50 25,00 / 2,00 M6
02300400368 26 1,00 26,00 26,00 / 2,00 M6
02300400369 26 1,50 26,00 26,00 / 2,00 M6
02300400370 26 2,00 26,00 26,00 / 2,00 M6
02300400371 26 2,50 26,00 26,00 / 2,00 M6
02300400372 27 1,00 26,00 27,00 / 2,00 M6
02300400373 27 1,50 26,00 27,00 / 2,00 M6
02300400374 27 2,00 26,00 27,00 / 2,00 M6
02300400375 27 2,50 26,00 27,00 / 2,00 M6
02300400376 28 1,00 26,00 28,00 / 2,00 M6
02300400377 28 1,50 26,40 28,00 / 2,00 M6
02300400378 28 2,00 26,00 28,00 / 2,00 M6
02300400379 28 2,50 26,00 28,00 / 2,00 M6
02300400380 30 1,00 26,00 30,00 / 2,00 M6
02300400381 30 1,50 26,00 30,00 / 2,00 M6
02300400382 30 2,00 26,00 30,00 / 2,00 M6
02300400383 32 1,00 26,00 32,00 / 2,00 M6
02300400384 32 1,50 26,00 32,00 / 2,00 M6
02300400385 32 2,00 26,00 32,00 / 2,00 M6
02300400386 32 2,50 26,00 32,00 / 2,00 M6

If you are interested in our family LTRKA, you may be interested in these families as well:

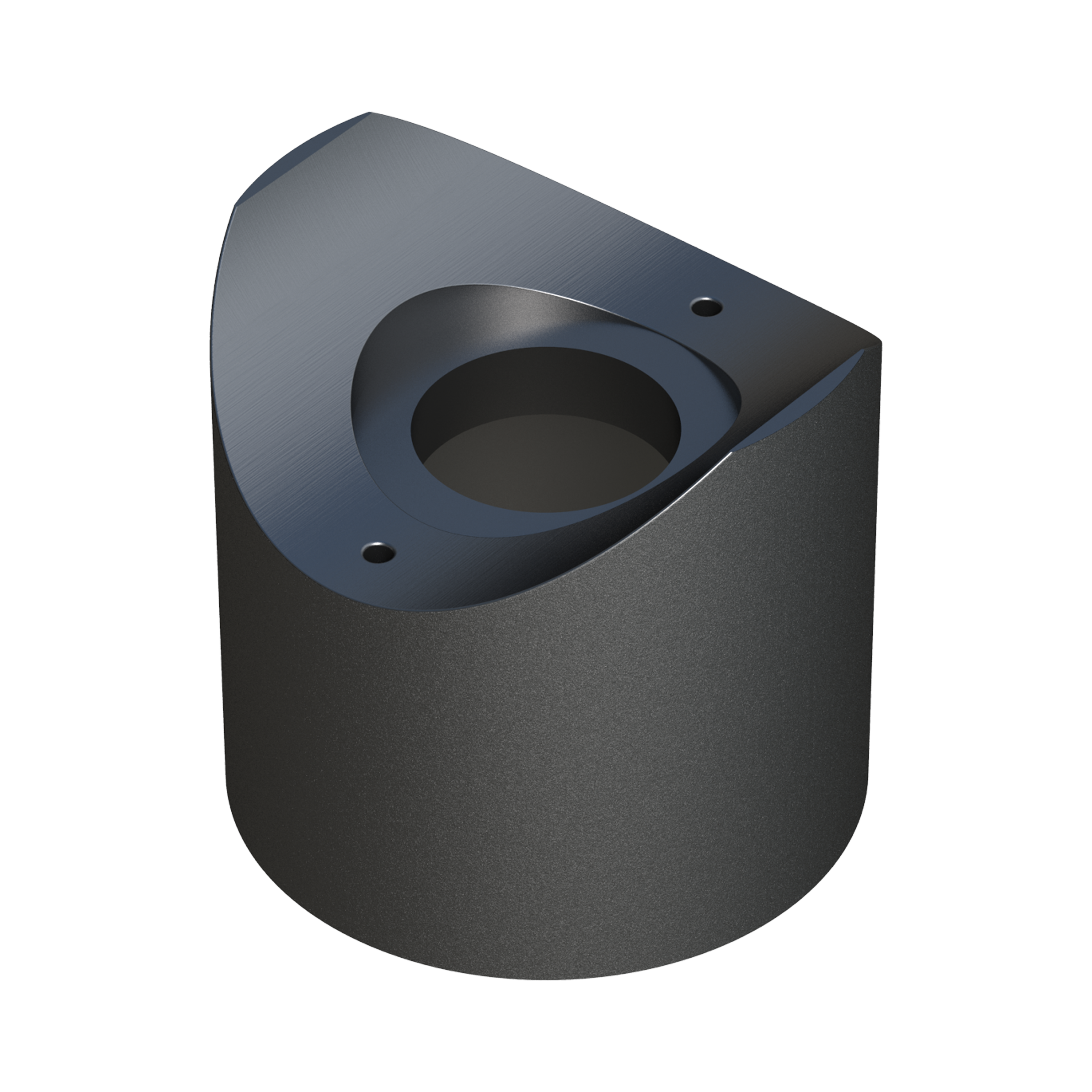

Our connector for round tubes has been designed with 2 cavities for hexagonal nuts. We can supply the part without nuts, or with a nut up, or one nut down, or with the 2 nuts. Please consult us.   The <b>SAB adapter</b> for our <b>LJRE connector-expanders</b> fits these connectors in all references with <b>M8/SW13</b>. <br> With the adapter and connector, two tubes can be joined transversely, allowing selection of the <i>cross tube for ø26-28, ø33-34, and ø40 mm tubes</i>.   This saddle washer is used for connecting round tubes from 18 to 81 mm to a flat surface. All references with a height (H) equal to or greater than 5mm have a cavity (ØD1 x h), where you can accommodate the screw heads, washers and / or distance elements. If you need to connect several tubes, please visit our group: <u> <a href='https://www.isc-sl.com/connectors/isccn'>Connectors.</u></a> .   Our round ribbed connector with saddle is ideal to connect 2 round tubes in order to get a T connection. It gives you the possibility to connect 2 tubes of the same diameter, or 2 tubes with a different diameter.
