Our AKAAK rigid levelling feet feature a round base with a minimalist design suitable for a wide range of applications. They are available in different base configurations to meet various installation requirements.

Three base types are available: type 1, without slot; type 2, with a screwdriver slot and rounded edges; and type 3, with a slot, one rounded edge and one straight edge. Depending on the base type, the material used may vary.

· Base material: Polypropylene (PP) and Low-density polyethylene (LDPE) depending on the base type
· Base diameters: 15 mm / 20 mm / 25 mm / 30 mm / 35 mm
· Colours: Black (RAL 9017) and Pearl Grey (RAL 7035)
· Thread: Zinc-plated steel M4 to M10

Stainless steel threads can be manufactured depending on the reference. Please contact our sales department.


  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

AKAAK
AKAAK

Reference
Metric Thread (M)
L
D
H
Type



More
Info.
02500100255 M4 10,00 20,00 8,00 3
02500100256 M4 10,00 25,00 8,00 3
02500100245 M5 17,00 15,10 6,00 1
02500100246 M5 22,50 15,10 6,00 1
02500100247 M5 27,50 15,10 6,00 1
02500100248 M5 38,00 15,10 6,00 1
02500100249 M5 48,00 15,10 6,00 1
02500100257 M6 10,00 20,00 8,00 2
02500100259 M6 10,00 25,00 8,00 2
02500100261 M6 10,00 30,00 8,00 2
02500100250 M6 17,00 15,10 6,00 1
02500100258 M6 20,00 20,00 8,00 2
02500100260 M6 20,00 25,00 8,00 2
02500100262 M6 20,00 30,00 8,00 2
02500100251 M6 22,50 15,10 6,00 1
02500100252 M6 27,50 15,10 6,00 1
02500100253 M6 37,00 15,10 6,00 1
02500100254 M6 47,00 15,10 6,00 1
02500100275 M8 10,00 35,00 11,50 2
02500100263 M8 11,00 20,00 8,00 3
02500100266 M8 11,00 25,00 8,00 3
02500100268 M8 11,00 30,00 8,00 3
02500100270 M8 15,00 30,00 11,50 2
02500100276 M8 15,00 35,00 11,50 2
02500100264 M8 20,00 20,00 8,00 3
02500100267 M8 20,00 25,00 8,00 3
02500100269 M8 20,00 30,00 8,00 3
02500100271 M8 20,00 30,00 11,50 2
02500100277 M8 20,00 35,00 11,50 2
02500100272 M8 25,00 30,00 11,50 2
02500100265 M8 30,00 20,00 8,00 3
02500100273 M8 30,00 30,00 11,50 2
02500100274 M8 40,00 30,00 11,50 2
02500100278 M10 15,00 30,00 11,50 2
02500100283 M10 20,00 35,00 11,50 2
02500100279 M10 25,00 30,00 11,50 2
02500100280 M10 30,00 30,00 11,50 2
02500100284 M10 30,00 35,00 11,50 2
02500100281 M10 35,00 30,00 11,50 2
02500100282 M10 41,00 30,00 12,00 2

If you are interested in our family AKAAK, you may be interested in these families as well:

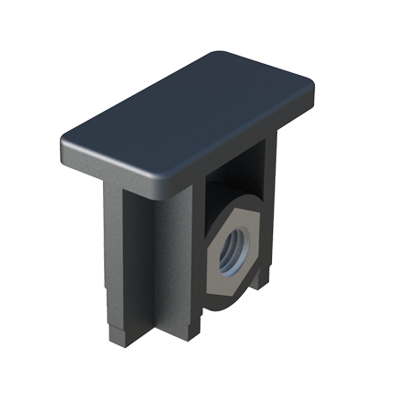

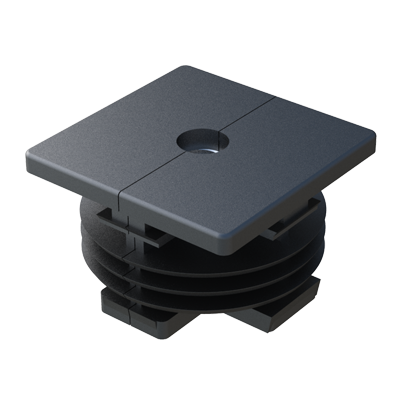

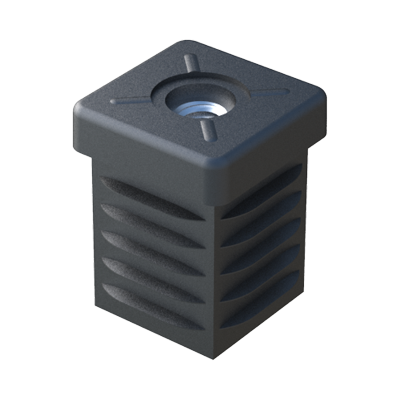

Our round tube insert has been designed with an hexagonal nut. The nut is inserted during the injection process. The part has an excellent finished and a good resistance. It is suitable for our adjustable feet, see our Adjustable feet section.   Our ribbed insert for rectangular tubes has a metal nut inserted during the injection process. It is also available for square tubes: LJ, round tubes LJRL, and triangle tubes: LJZZ. It is suitable with our adjustable feet group.   The ribbed threaded inserts LJ for square tubes are offered in different designs and sizes. The metric nut, which is incorporated during the injection process, offers a strong fixation. The combination of the available sizes and materials (LDPE and PA6) will offer different properties, such as resistance to weight (we recommend carrying out tests through a sample order).   Our ribbed insert for oval tubes has a metal nut inserted during the injection process. It is also available for square tubes: JTPO, rectangular tubes: LJZ, round tubes: LJRL, and triangle tubes: LJZZ.   Our ribbed insert has been designed in two parts with an injected plastic thread.   Our insert for rectangular traverse ends has been designed for mounting adjustable feet. The part is supplied without metal nuts, but we can supply it with one nut DIN934. It is also available for oval tubes: LJEO   Our ribbed insert for square tubes has been designed in 2 parts with an hexagon nut included in the set. It is also available for rectangular tubes: LJVZ. It is suitable for our adjustable feet.   Our ribbed insert has been designed in two parts with an injected plastic thread.   Our ribbed insert for square tubes has a metal thread inserted during the injection process.
