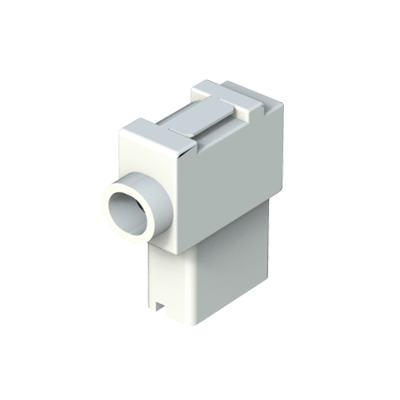

Our edge holder protects and insulates wires and cables from the edges of chassis and frames.Its installation to chassis and frames is very easy to complete.

Drawing PDF:
UL94:   V2/V0
IP:
RoHS:
Measures expressed in: Millimeters


Reference
W1
W2
L1
L2
L3
H
D
t



More
Info.
01012000808 110,00 3,00 3,00 3,00 4,10 / 2,30 6,00 / 3,90 8,00 / 4,60 22,30
01012000809 187,00 3,60 3,60 3,60 6,10 / 2,60 7,50 / 3,90 8,80 / 5,20 21,90
01012000810 205,00 3,60 3,60 3,60 3,60 / 6,80 8,50 / 4,40 8,80 / 5,20 24,60
01012000811 250,00 4,10 4,10 4,10 4,10 / 8,00 9,30 / 4,70 9,80 / 5,60 26,00
