Our ribbed insert for oval tubes is also available for round tubes: LSL .
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube
Tube Thickness
D x B
H
d x b
L
d1 x b1



More
Info.
00300400896 30 x 15 1,50 to 2,00 30,00 x 15,00 4,00 24,00 x 9,00 16,00 27,50 x 12,50
00300400897 35 x 15 1,50 to 2,00 35,00 x 15,00 4,50 27,50 x 8,00 12,00 33,50 x 13,90
00300400898 38 x 20 1,50 to 2,00 38,00 x 20,00 4,50 32,50 x 14,20 12,00 37,50 x 19,20
00300410106 40 x 20 1,50 to 2,00 40,00 x 20,00 5,00 34,00 x 14,00 12,00 39,00 x 18,50
00300400899 50 x 20 1,50 to 2,00 50,00 x 20,00 5,00 44,00 x 14,00 12,00 49,00 x 18,70
00300400900 60 x 30 1,50 to 2,00 60,00 x 30,00 8,00 54,50 x 24,00 13,50 58,10 x 28,10

If you are interested in our family LFOS, you may be interested in these families as well:

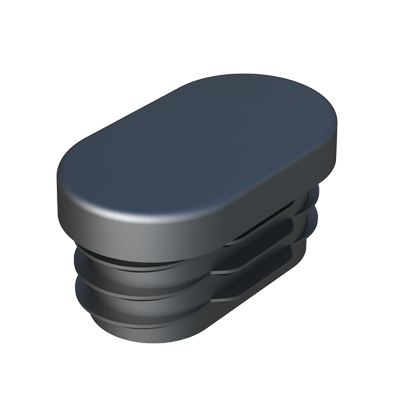

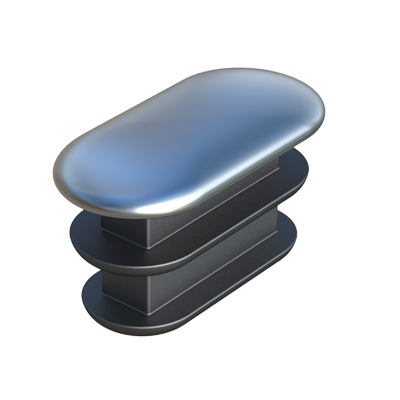

Our standard ribbed insert for oval tubes is available in multiple sizes. It is also available for square tubes: LE, rectangular tubes: LF, triangular tubes: LFD and octogonal tubes: SLJLO.   Our ribbed insert with steel base (NOT stainless) is for oval tubes, but we also have it available for square tubes: TGLMC, for round tubes: TGLM, and for rectangular tubes: TGLMX.
