Description and features
This ratcheting action rivet features a rigid design which provides an outstanding bond created by the action of the interlocking gripper teeth. It garantees a rigid bond that will be difficult to separate. With the larger head diameters it makes binding of soft materials a simple application. For holding flat panels together, 2 parts are required, that would be snapped into each other. We suggest you to adjust the hole diameter to the rod of the part in order to garantee a resilient bond.
Possible to get dyed colors Product images and technical drawings

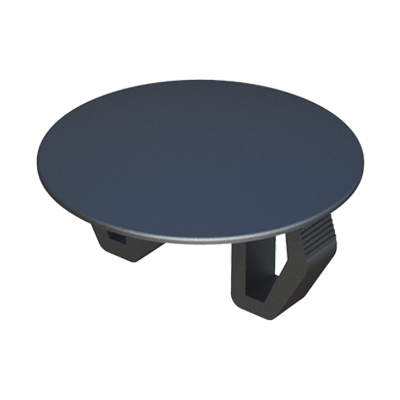

Product view
Technical drawing
Video
Part numbers and dimensions of Ratcheting action rivet
| Reference | Hole size |
Panel thickness |
B |
A |
More Info. |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 01300100820 | 5,50 | 5,40 to 7,00 | 5,30 | 10,00 | |||||||||
| 00100300357 | 6,35 | 5,97 to 7,54 | 5,55 | 9,53 | |||||||||
| 00100300360 | 6,35 | 6,00 to 7,50 | 5,50 | 15,88 | |||||||||
| 00100300359 | 6,35 | 8,80 to 12,70 | 8,75 | 9,55 | |||||||||
| 00100300361 | 6,35 | 8,79 to 12,70 | 8,73 | 15,88 | |||||||||
| 00100300583 | 6,35 | 12,70 to 20,62 | 12,70 | 9,53 | |||||||||
| 00100300585 | 6,35 | 12,70 to 20,62 | 12,70 | 15,88 | |||||||||
| 00100300584 | 6,35 | 19,81 to 34,93 | 19,05 | 9,53 | |||||||||
| 00100300586 | 6,35 | 19,81 to 34,93 | 19,30 | 15,90 | |||||||||
| 00100300350 | 7,14 | 5,97 to 7,54 | 5,50 | 10,31 | |||||||||
| 00100300342 | 7,14 | 5,97 to 7,54 | 5,50 | 19,05 | |||||||||
| 00100300344 | 7,14 | 8,80 to 12,80 | 8,70 | 19,10 | |||||||||
| 00100300352 | 7,14 | 8,79 to 12,70 | 8,73 | 10,31 | |||||||||
| 00100300354 | 7,14 | 12,70 to 20,62 | 12,70 | 10,31 | |||||||||
| 00100300346 | 7,10 | 12,70 to 20,60 | 12,40 | 19,10 | |||||||||
| 00100300356 | 7,14 | 19,81 to 34,93 | 19,05 | 10,31 | |||||||||
| 00100300348 | 7,14 | 19,81 to 34,93 | 19,05 | 19,05 | |||||||||
| 01300100821 | 7,60 | 9,80 to 12,80 | 8,30 | 19,00 | |||||||||
| 01300100822 | 7,60 | 13,50 to 16,50 | 12,00 | 19,00 | |||||||||
| 01300100823 | 9,50 | 36,00 to 49,00 | 35,70 | 19,00 | |||||||||
| 00100300362 | 11,10 | 11,10 to 19,05 | 11,10 | 34,93 |
