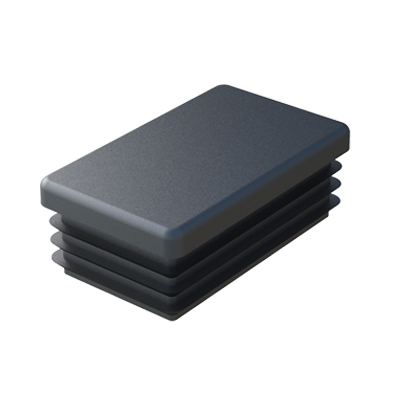

Our rectangular ribbed tube insert has been designed for getting a good finishing part. It is also available for square tubes: LES.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube
Tube Thickness
D x B
H
d x b
d1 x b1
L



More
Info.
00300400136 25 x 15 1,00 to 2,00 25,00 x 15,00 5,00 19,50 x 10,50 23,50 x 13,50 12,00
00300400695 30 x 10 1,00 to 2,00 30,00 x 10,00 5,00 25,90 x 6,00 29,00 x 9,00 12,00
00300400137 30 x 15 1,50 to 2,00 30,00 x 15,00 5,00 25,50 x 10,50 28,00 x 13,00 12,00
00300400138 30 x 20 1,50 to 2,00 30,00 x 20,00 5,00 25,00 x 15,00 28,20 x 18,10 14,00
00300400696 40 x 15 1,00 to 2,00 40,00 x 15,00 5,00 35,70 x 10,50 38,90 x 13,40 12,00
00300400139 40 x 20 1,00 to 2,00 40,00 x 20,00 5,00 35,50 x 15,00 38,50 x 18,50 14,00
00300400140 40 x 30 1,50 to 2,00 40,00 x 30,00 4,00 35,50 x 25,30 38,00 x 28,00 13,00
00300400141 50 x 20 1,50 to 2,00 50,00 x 20,00 5,00 45,50 x 15,00 48,00 x 18,00 13,00
00300400142 50 x 30 1,50 to 2,00 50,00 x 30,00 5,00 45,50 x 25,50 48,00 x 28,00 13,00
00300400143 50 x 40 1,00 to 2,00 50,00 x 40,00 5,00 43,00 x 33,00 48,50 x 38,50 12,00
00300400144 60 x 20 1,50 to 2,00 60,00 x 20,00 5,00 54,00 x 14,00 58,00 x 18,00 14,00
00300400145 60 x 30 1,50 to 2,00 60,00 x 30,00 5,00 54,00 x 24,00 57,50 x 27,50 14,00
00300400146 60 x 40 1,50 to 2,50 60,00 x 40,00 5,00 52,00 x 32,00 58,00 x 38,00 14,00

If you are interested in our family LFS, you may be interested in these families as well:

Our standard ribbed insert for rectangular tubes is available in multiple sizes. It is also available for square tubes: LE, oval tubes: LFO, triangular tubes: LFD and octogonal tubes: SLJLO.
