Our standard ribbed insert for rectangular tubes is available in multiple sizes. It is also available for square tubes: LE, oval tubes: LFO, triangular tubes: LFD and octogonal tubes: SLJLO.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters

LF
LF

Reference
For Tube
Tube Thickness
D x B
H
d x b
d1 x b1
L



More
Info.
00300400042 20 x 10 1,50 20,00 x 10,00 5,00 16,70 x 6,50 18,55 x 8,80 11,80
00700800650 20 x 15 1,00 to 2,00 20,00 x 15,00 2,00 12,00 x 7,30 19,30 x 14,40 11,50
00300400043 20 x 15 1,50 20,10 x 15,00 5,00 15,50 x 10,70 18,90 x 13,90 11,30
00300400044 25 x 10 1,50 25,00 x 10,00 5,00 21,60 x 6,40 23,50 x 8,70 11,70
00300400045 25 x 12 1,50 25,00 x 12,00 5,00 19,00 x 6,00 23,50 x 10,50 10,50
00700800651 25 x 15 0,80 to 2,50 25,00 x 15,00 2,00 · · 11,50
00300400046 25 x 15 1,50 25,10 x 15,00 4,90 19,60 x 10,40 23,90 x 14,30 11,80
00700800652 25 x 20 1,00 to 2,50 25,00 x 20,00 2,00 · · 11,50
00300400047 25 x 20 1,50 25,20 x 20,30 4,70 20,50 x 15,60 24,00 x 19,10 14,40
00300400048 30 x 10 1,50 30,10 x 10,30 5,00 25,60 x 6,20 28,10 x 8,80 12,70
00700800653 30 x 15 0,80 to 2,50 30,00 x 15,00 2,10 22,20 x 7,00 29,15 x 14,20 11,50
00300400049 30 x 15 1,50 30,00 x 15,00 5,00 25,50 x 10,50 28,00 x 13,00 12,00
00700800654 30 x 20 0,80 to 3,00 30,00 x 20,00 2,00 · · 11,50
00300400050 30 x 20 1,50 30,00 x 20,00 5,00 25,00 x 14,90 28,50 x 18,50 14,00
00300400051 30 x 20 3,00 30,00 x 20,10 4,80 23,40 x 13,60 27,70 x 17,90 13,50
00700800409 30 x 25 0,80 to 3,00 29,90 x 24,80 5,00 22,00 x 17,10 29,00 x 24,00 11,50
00700800655 30 x 25 0,80 to 3,00 30,00 x 25,00 2,00 · · 11,50
00300400052 30 x 25 1,50 30,00 x 24,90 5,10 24,50 x 19,60 28,50 x 23,10 13,60
00300400053 35 x 10 1,50 34,90 x 10,00 5,10 29,50 x 5,00 32,00 x 7,40 10,10
00300400054 35 x 15 1,50 35,10 x 15,20 4,90 30,30 x 9,70 33,10 x 13,10 12,30
00700800656 35 x 20 0,80 to 2,50 35,00 x 20,00 2,00 · · 11,50
00300400055 35 x 20 1,50 35,00 x 20,00 5,00 28,50 x 13,50 33,50 x 18,50 13,00
00700800657 35 x 25 0,80 to 2,50 35,00 x 25,00 2,00 27,40 x 17,00 34,25 x 23,95 11,50
00300400056 35 x 25 1,50 35,00 x 25,00 4,60 29,50 x 20,00 33,70 x 24,30 13,50
00300400057 35 x 30 1,50 35,70 x 30,00 5,00 30,30 x 25,00 34,90 x 29,50 13,20
00300400058 40 x 10 1,50 40,00 x 10,00 5,00 34,00 x 5,00 37,50 x 7,50 11,00
00300400059 40 x 15 1,50 40,20 x 15,10 5,00 35,40 x 10,30 38,70 x 13,40 11,70
00700800658 40 x 20 0,80 to 2,50 40,00 x 20,00 2,00 32,50 x 12,00 39,25 x 19,00 11,50
00300400060 40 x 20 1,50 40,00 x 20,00 4,60 35,10 x 14,60 38,50 x 18,50 13,90
00300400061 40 x 20 3,00 40,00 x 20,00 5,00 31,00 x 11,00 37,00 x 17,00 13,00
00700800659 40 x 25 1,00 to 3,00 40,00 x 25,00 2,00 32,00 x 17,00 38,70 x 23,40 11,50
00300400062 40 x 25 1,50 39,80 x 24,80 4,80 35,30 x 19,30 39,10 x 23,10 11,70
00700800660 40 x 30 1,00 to 2,50 40,00 x 30,00 2,00 32,30 x 21,70 38,90 x 28,20 11,50
00300400063 40 x 30 1,50 40,30 x 30,00 4,50 35,80 x 24,70 39,30 x 28,10 13,40
00300400064 40 x 30 3,00 40,00 x 30,00 5,00 31,50 x 21,50 37,00 x 27,00 13,00
00300400065 40 x 35 1,00 to 3,00 39,90 x 34,80 5,00 27,20 x 32,30 38,80 x 33,80 11,50
00300400066 45 x 15 1,50 44,40 x 15,10 4,80 40,20 x 10,40 43,40 x 14,00 11,10
00700800427 45 x 20 1,50 45,00 x 20,00 5,00 37,20 x 11,50 43,90 x 18,50 11,50
00700800661 45 x 25 0,80 to 2,50 45,00 x 25,00 2,00 · · 11,50
00300400068 45 x 25 1,50 45,20 x 25,60 5,00 38,30 x 18,00 43,30 x 22,60 12,50
00700800662 45 x 30 0,80 to 2,50 45,00 x 30,00 2,00 · · 11,50
00700800432 45 x 35 1,50 44,90 x 34,70 4,90 37,00 x 27,00 43,50 x 33,60 11,50
00300400985 45 x 40 2,00 to 3,00 45,50 x 40,50 5,20 38,10 x 33,10 41,70 x 36,60 12,50
00300400070 48 x 38 1,50 46,70 x 37,60 4,90 41,30 x 32,80 44,90 x 37,10 14,30
03500800010 50 x 10 0,80 to 2,00 49,60 x 9,80 3,25 42,10 x 2,80 48,50 x 9,00 11,50
00300400071 50 x 15 1,50 50,10 x 15,10 4,70 45,00 x 10,30 49,60 x 13,40 13,60
00700800663 50 x 20 0,80 to 2,50 50,00 x 20,00 2,00 · · 14,50
00300400072 50 x 20 1,50 49,70 x 19,90 4,80 45,30 x 14,60 49,50 x 19,00 13,30
00300400073 50 x 20 3,00 50,20 x 20,30 4,80 42,00 x 12,00 45,00 x 15,00 13,60
00700800664 50 x 25 0,80 to 2,50 50,00 x 25,00 2,00 · · 14,50
00300400074 50 x 25 1,50 50,30 x 25,40 5,30 44,90 x 18,90 49,30 x 23,40 12,20
00700800665 50 x 30 1,00 to 2,50 50,00 x 30,00 2,00 · · 14,50
00300400075 50 x 30 1,50 50,10 x 30,10 4,60 44,80 x 24,60 49,00 x 29,10 13,60
00300410084 50 x 30 3,00 to 5,00 49,80 x 29,90 5,00 37,90 x 17,90 44,70 x 25,00 14,50
00300400076 50 x 30 3,00 50,70 x 30,40 4,90 42,50 x 22,20 47,20 x 26,90 13,90
00300400077 50 x 34 1,00 to 3,50 49,80 x 33,80 5,00 41,20 x 24,30 48,80 x 32,2 14,50
00300400078 50 x 35 1,00 to 3,50 49,80 x 34,80 5,00 41,00 x 26,00 48,50 x 33,60 14,50
00700800666 50 x 40 0,80 to 2,50 50,00 x 40,00 2,00 · · 14,50
00300400079 50 x 40 1,50 49,90 x 40,00 5,30 40,20 x 30,30 47,50 x 38,00 14,50
00300400080 50 x 40 3,00 to 4,00 50,00 x 40,50 5,00 40,00 x 30,30 45,00 x 35,20 12,60
00300400081 55 x 35 1,50 54,75 x 35,15 4,50 47,60 x 29,20 51,30 x 32,30 13,30
00300400082 55 x 40 1,50 to 4,00 54,80 x 39,70 5,00 45,40 x 29,40 53,00 x 37,60 14,50
00700800667 60 x 20 1,00 to 2,50 60,00 x 20,00 2,00 52,50 x 12,00 59,20 x 19,00 15,50
00300400083 60 x 20 1,50 59,70 x 20,00 4,90 53,50 x 14,20 57,60 x 18,00 14,20
00700800668 60 x 25 0,80 to 2,50 60,00 x 25,00 2,00 · · 14,50
00300400084 60 x 25 1,00 to 2,50 60,10 x 25,10 4,90 51,80 x 16,70 58,60 x 23,70 14,10
00700800669 60 x 30 1,00 to 2,50 60,00 x 30,00 2,00 · · 14,50
00300400085 60 x 30 1,50 60,30 x 30,40 5,20 53,50 x 24,30 57,70 x 27,80 14,10
00300400086 60 x 30 3,00 60,30 x 30,10 5,40 52,10 x 22,00 55,80 x 25,90 14,50
00700800454 60 x 33 1,50 to 3,50 59,60 x 32,80 5,00 50,60 x 23,40 58,00 x 31,20 14,50
00700800455 60 x 35 1,50 to 3,50 59,90 x 34,60 5,00 51,40 x 25,00 58,20 x 32,00 14,50
00700800670 60 x 40 1,00 to 2,50 60,00 x 40,00 2,00 52,00 x 31,20 58,80 x 38,75 15,00
00300400782 60 x 40 1,00 to 3,00 60,00 x 40,00 4,80 51,90 x 31,30 58,60 x 38,80 14,80
00300400089 60 x 40 1,50 60,00 x 40,00 5,00 52,80 x 32,30 58,70 x 38,40 14,00
00300400554 60 x 40 4,00 to 5,00 59,70 x 39,60 5,20 48,10 x 27,80 53,00 x 32,80 14,00
00300400090 60 x 45 1,50 to 4,00 60,10 x 45,00 5,00 50,80 x 34,50 58,30 x 42,30 14,90
00300410085 60 x 50 1,50 to 3,50 60,10 x 50,00 5,00 51,20 x 41,00 58,20 x 47,90 14,50
00300400986 65 x 35 1,50 to 3,50 65,00 x 35,00 5,00 56,50 x 26,40 63,90 x 33,20 15,00
00300400091 70 x 20 1,50 70,30 x 19,90 5,10 61,80 x 12,90 67,90 x 18,50 19,50
00300400092 70 x 25 1,50 70,20 x 25,40 5,10 62,20 x 17,20 67,90 x 23,10 17,00
00300400093 70 x 30 1,50 70,30 x 30,20 5,90 61,70 x 22,50 68,00 x 28,20 18,00
00700800466 70 x 30 1,00 to 3,00 69,80 x 29,90 4,70 62,10 x 21,00 69,10 x 28,00 15,30
00300400094 70 x 35 1,50 to 3,50 69,70 x 34,70 5,00 60,50 x 25,00 67,30 x 32,10 14,20
00300400096 70 x 40 1,50 70,90 x 39,80 5,20 62,60 x 32,20 68,00 x 37,50 17,70
00300400095 70 x 40 4,00 70,80 x 40,10 5,70 60,90 x 31,30 65,90 x 35,90 17,90
00300400097 70 x 50 2,00 to 5,00 70,00 x 50,00 5,00 60,40 x 39,40 67,10 x 47,30 14,50
00300400987 75 x 25 1,00 to 3,00 75,00 x 25,00 5,00 67,50 x 16,50 74,40 x 23,50 14,50
00300400988 75 x 50 2,00 to 4,00 74,50 x 49,50 5,00 65,50 x 40,00 72,20 x 47,50 15,00
00300400098 80 x 20 1,00 to 2,00 80,50 x 20,30 5,00 74,00 x 13,00 78,10 x 18,20 18,20
00300400099 80 x 25 1,50 to 3,00 80,40 x 25,30 5,00 74,00 x 18,70 79,00 x 23,00 18,00
00700800481 80 x 30 1,00 to 2,50 80,00 x 30,00 5,00 · · ·
00300400100 80 x 30 1,00 to 2,00 80,80 x 30,20 5,60 71,80 x 22,40 78,10 x 28,20 17,80
00300400101 80 x 30 2,50 80,10 x 30,20 5,00 69,90 x 19,00 76,00 x 25,70 14,50
00700800483 80 x 40 1,00 to 3,00 80,70 x 40,40 4,80 72,50 x 32,00 79,30 x 38,60 14,50
00300400102 80 x 40 1,50 to 2,50 80,00 x 40,20 5,00 70,10 x 33,00 77,30 x 37,80 18,40
00300410086 80 x 40 3,00 to 5,00 80,00 x 40,00 5,00 67,50 x 27,00 74,80 x 35,00 14,50
00300400103 80 x 40 4,00 79,20 x 39,90 5,00 69,30 x 29,30 73,80 x 33,60 18,10
00300400104 80 x 50 2,00 to 4,00 79,80 x 49,70 4,90 67,60 x 38,90 76,50 x 46,40 18,00
00300400105 80 x 50 4,00 80,40 x 50,30 5,00 68,40 x 39,40 76,90 x 46,70 24,30
00300400106 80 x 60 1,50 to 4,50 79,60 x 59,70 4,90 69,10 x 49,00 78,00 x 57,20 24,20
00700800490 80 x 60 4,00 to 6,00 80,30 to 60,20 5,30 62,20 x 41,20 72,90 x 52,30 24,60
00300400107 80 x 60 5,00 80,00 x 59,90 5,20 66,90 x 48,10 70,30 x 51,70 18,20
00300400108 90 x 50 2,00 to 4,50 89,90 x 49,90 6,00 76,00 x 36,00 86,70 x 46,80 21,50
00300400109 90 x 70 3,00 to 5,50 90,30 x 69,70 6,00 74,00 x 53,00 84,90 x 63,90 21,50
00700800671 100 x 20 1,50 to 2,50 100,00 x 20,00 2,00 · · 14,50
00700800050 100 x 20 1,50 to 3,00 100,00 x 20,00 5,00 91,30 x 8,50 98,80 x 17,30 15,30
00300400110 100 x 25 1,50 to 3,00 99,60 x 24,70 4,70 90,80 x 14,60 98,10 x 22,70 14,40
00700800672 100 x 25 1,50 to 2,50 100,00 x 25,00 2,00 · · 14,50
00700800673 100 x 30 1,50 to 3,00 100,00 x 30,00 2,00 · · 14,50
00300400556 100 x 30 1,50 to 3,50 100,00 x 30,00 5,00 91,50 x 20,50 98,00 x 27,50 14,80
00700800499 100 x 40 1,50 to 2,00 100,40 x 40,40 5,00 93,70 x 32,70 98,70 x 38,50 18,60
00300400112 100 x 40 3,00 to 4,00 100,00 x 40,20 5,00 89,00 x 29,90 93,50 x 35,50 18,00
00300400113 100 x 50 2,00 to 3,00 100,20 x 50,20 5,00 92,00 x 42,30 96,70 x 46,70 24,20
00300400114 100 x 50 3,20 to 6,00 99,30 x 49,50 6,30 82,60 x 33,10 94,10 x 44,50 23,60
00300400115 100 x 50 5,00 100,50 x 50,50 5,30 88,00 x 38,00 93,00 x 43,70 17,70
00300400116 100 x 60 2,50 to 4,50 99,70 x 59,90 6,20 88,70 x 48,90 97,80 x 57,40 24,90
00300400117 100 x 80 3,00 to 5,50 100,60 x 80,40 6,00 85,50 x 65,50 96,00 x 75,90 24,50
00300410088 110 x 30 2,00 to 4,00 109,70 x 29,90 5,00 99,70 x 19,00 107,00 x 27,30 14,50
00700800674 110 x 30 2,00 to 3,50 110,00 x 30,00 2,00 · · 14,50
00300400118 110 x 60 3,50 to 5,50 110,00 x 60,00 6,00 94,00 x 41,80 104,10 x 52,60 24,50
00300400119 110 x 70 3,00 to 5,00 110,00 x 69,80 6,00 94,00 x 53,20 105,00 x 60,00 24,50
00300400128 120 x 100 3,50 to 6,00 120,50 x 100,30 6,00 103,80 x 84,20 114,30 x 94,10 24,00
00700800675 120 x 20 1,50 to 2,50 120,00 x 20,00 2,00 · · 14,50
00700800676 120 x 25 1,50 to 3,00 120,00 x 25,00 2,00 111,00 x 15,00 118,20 x 21,80 15,50
00700800677 120 x 30 1,00 to 2,00 120,00 x 30,00 2,00 · · 14,50
00300400120 120 x 30 1,00 to 2,00 122,70 x 30,60 4,70 114,90 x 22,20 119,80 x 26,50 20,10
00700800060 120 x 40 1,50 to 2,00 119,50 x 40,50 5,40 112,00 x 32,00 116,40 x 36,80 16,40
00300400121 120 x 40 3,00 120,50 x 40,30 5,20 112,50 x 30,70 115,00 x 35,80 17,00
00700800512 120 x 50 3,00 to 5,50 119,40 x 49,80 6,00 104,00 x 34,00 114,50 x 44,50 21,70
00700800513 120 x 60 1,50 to 4,00 120,00 x 59,80 5,10 108,00 x 46,50 118,30 x 58,20 24,50
00300400123 120 x 60 2,00 to 3,00 119,80 x 60,10 5,00 111,10 x 51,00 117,00 x 57,00 24,30
00300400124 120 x 60 3,00 119,70 x 60,30 5,00 110,20 x 49,90 115,30 x 55,00 18,00
00300400125 120 x 60 4,00 120,50 x 60,40 5,20 110,00 x 50,40 115,00 x 55,20 18,00
00300400126 120 x 60 5,00 119,70 x 60,30 5,00 110,20 x 49,90 113,50 x 53,70 17,50
00300410091 120 x 80 2,00 to 5,50 119,60 x 79,70 6,00 106,60 x 65,60 117,40 x 77,00 24,50
00300400127 120 x 80 2,00 to 3,00 120,40 x 80,20 5,00 111,80 x 71,60 116,70 x 76,20 24,50
00300410092 125 x 75 2,00 to 5,00 125,50 x 75,20 6,00 111,40 x 60,60 123,30 x 72,00 24,50
00700800522 140 x 60 2,00 to 4,50 140,00 x 60,00 6,00
00300400129 140 x 80 4,00 140,20 x 80,30 5,60 129,50 x 69,60 134,20 x 74,30 19,20
02500600002 150 x 100 5,00 150,00 x 100,00 7,00 129,00 x 78,50 146,00 x 95,50 27,50
00300410093 150 x 30 1,50 to 3,00 150,00 x 30,00 6,00 138,70 x 15,50 150,50 x 26,50 21,50
00300400130 150 x 50 2,00 to 4,00 149,80 x 49,80 6,00 132,70 x 31,30 148,20 x 47,00 27,40
00300410094 150 x 50 4,00 to 7,00 150,00 x 50,00 6,00 133,30 x 30,30 145,50 x 41,30 21,50
00700800531 150 x 60 2,50 to 5,00 150,00 x 60,00 6,00 135,80 x 44,70 146,40 x 54,50 21,50
00700800532 150 x 75 2,50 to 5,50 150,00 x 75,00 6,00 135,50 x 59,50 146,10 x 70,10 21,50
00300410097 160 x 50 2,50 to 5,50 160,00 x 50,00 6,00 145,30 x 33,10 156,20 x 44,00 21,50
00300410098 160 x 60 2,50 to 5,00 160,00 x 60,00 6,00 145,40 x 43,40 156,50 x 54,10 21,50
00300410099 160 x 80 3,00 to 5,50 160,00 x 80,00 6,00 146,10 x 63,80 156,80 x 75,00 24,50
00700800540 200 x 100 3,00 to 6,00 200,00 x 100,00 5,00 181,00 x 79,00 197,00 x 95,00 30,50
00700800678 200 x 40 2,00 to 3,50 200,00 x 40,00 2,00 · · 19,00

If you are interested in our family LF, you may be interested in these families as well:

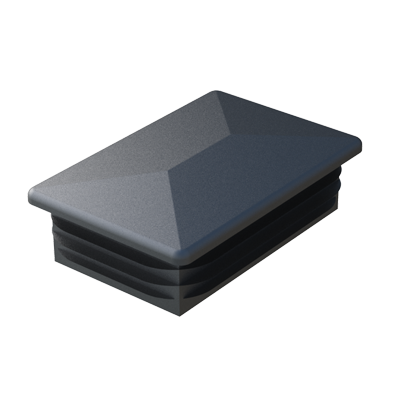

Our rectangular ribbed tube insert has been designed for getting a good finishing part. It is also available for square tubes: LES.   Our end fittings for rectangular tubes have been designed with <b> lateral openings </b> to accommodate the hooks for connecting the supports in modular metal racking systems. <br> They are suitable for tubes and deep holes where there may be sharp edges and variations in shape. <br> They can also be used as conventional end caps. <br> They are also available for square tubes: LFAA.   Our ribbed insert for rectangular tubes has a steel base (NOT stainless). We also have it available for square tubes: TGLMC, round tubes: TGLM and oval tubes: TGLMO.   Our <b>rectangular chrome-plated</b> MTGL inserts are manufactured in <b>ABS</b>, an ideal material for the chrome-plating process to which this product family is subjected. <br><br> The <b>standard</b> galvanic treatment offers a high-quality aesthetic finish and is exclusively for <b>interior</b> use.<br><br> These plugs are available with the finish <i>Bright/polished chrome - Matte/satin chrome - Bright/polished nickel - Matte/satin nickel - Bright/polished gold - Matte/satin gold – Stainless Steel</i>, as well as with the option <b>personalization by laser engraving</b>.<br><br> Under a minimum order, we can carry out <b>specific treatments</b> with different deposit protocols, depending on the needs of each client. For a part suitable for <b>outdoor/outdoor use</b>, with <b>corrosion resistance</b> due to <b>UV rays and humidity</b>, please contact our commercial department to study the project. <br><br> If you want this same piece in ABS <b>black</b>, consult our family <b><a href=' https://www.iscsl.co.uk/rectangular-tube-insert-abs/mtglq/ 'target='_top'>MTGLQ</a></b>.   Our ribbed insert has an enlarged base. It is also available for square tubes: LH and LHA. If you need this same part, with steel base, please visit our family LIC.   Our ribbed insert has an enlarged base. If you need this same part, without the steel base, please visit our family LI.
