End inserts for round tube made of ABS material, which is ideal if needed to be painted or chromed.
If you need this same piece in shiny or matt chrome, have a look at our family MTGLC .

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters


Reference
For Tube (D)
Tube Thickness
L
H



More
Info.
00900800100 8 1,00 4,50 1,50
00900800101 10 1,00 5,00 2,00
00900800102 12 1,00 5,00 2,00
00900800103 13 1,00 6,00 2,00
00900800104 14 1,00 5,70 2,00
00900800105 16 1,00 8,00 3,00
00900800106 16 1,20 8,00 3,00
00900800107 16 1,50 8,00 3,00
00900800108 18 1,00 8,00 3,00
00900800109 18 1,20 8,00 3,00
00900800110 18 1,50 8,00 3,00
00900800111 19 1,20 8,00 3,00
00900800112 19 1,50 8,00 3,00
00900800113 20 1,00 8,00 3,00
00900800114 20 1,20 8,00 3,00
00900800115 20 1,50 8,00 3,00
00900800116 22 1,00 8,00 3,00
00900800117 22 1,20 8,00 3,00
00900800118 22 1,50 8,00 3,00
00900800119 22 2,00 8,00 3,00
00900800120 25 1,00 8,00 4,00
00900800121 25 1,20 8,00 4,00
00900800122 25 1,50 7,00 4,10
00900800123 25 2,00 6,50 4,00
00900800124 25 2,50 8,00 4,00
00900800125 25,4 1,25 8,00 4,00
00900800126 28 1,00 10,00 4,00
00900800127 28 1,20 10,00 4,00
00900800128 28 1,50 10,00 4,00
00900800129 28 2,00 10,00 4,00
00900800130 30 1,00 10,00 5,00
00900800131 30 1,20 10,00 5,00
00900800132 30 1,50 10,00 5,00
00900800133 30 2,00 10,00 5,00
00900800134 32 1,20 10,00 4,00
00900800135 32 1,50 10,00 4,00
00900800136 32 2,00 10,00 4,00
00900800137 32 3,00 10,00 4,00
00900800138 35 1,00 10,00 3,00
00900800139 35 1,20 10,00 3,00
00900800140 35 1,50 10,00 3,00
00900800141 35 2,00 10,00 3,00
00900800142 38 1,50 10,00 3,00
00900800143 38 2,00 10,00 3,00
00900800144 40 1,00 10,00 3,00
00900800145 40 1,50 10,00 3,00
00900800146 40 2,00 10,00 3,00
00900800147 45 1,50 11,60 4,00
00900800148 45 2,00 11,00 4,00
00900800149 50 1,00 11,00 5,00
00900800150 50 1,20 11,00 5,00
00900800151 50 1,50 11,00 5,00
00900800152 50 2,00 11,00 5,00
00900800153 60 1,00 11,00 5,00
00900800154 60 1,20 11,00 5,00
00900800155 60 1,50 11,00 5,00
00900800156 70 1,20 11,00 5,00
00900800157 70 1,50 11,00 5,00
00900800158 80 1,20 11,00 5,00
00900800159 80 1,50 11,00 5,00
00900800160 90 1,20 11,00 5,00
00900800161 90 1,50 11,00 5,00
00900800162 120 5,00 16,00 8,00

If you are interested in our family MTGLO, you may be interested in these families as well:

End inserts for round tube made of ABS material, which <b><i>is ideal if needed to be painted</b></i> or chromed.
<br>
If you need this same piece in shiny or matt chrome, have a look at our family <b><a href='https://www.isc-sl.com/chrome-square-tube-insert/mtgla/' target='_top'>MTGLA </a></b>.   End inserts for round tube made of ABS material, which <b><i>is ideal if needed to be painted</b></i> or chromed.
<br>
If you need this same piece in shiny or matt chrome, have a look at our family <b><a href='https://www.isc-sl.com/chrome-rectangular-tube-insert/mtgl/' target='_top'>MTGL </a></b>.   End inserts for round tube made of ABS material, which <b><i>is ideal if needed to be painted</b></i> or chromed.
<br>

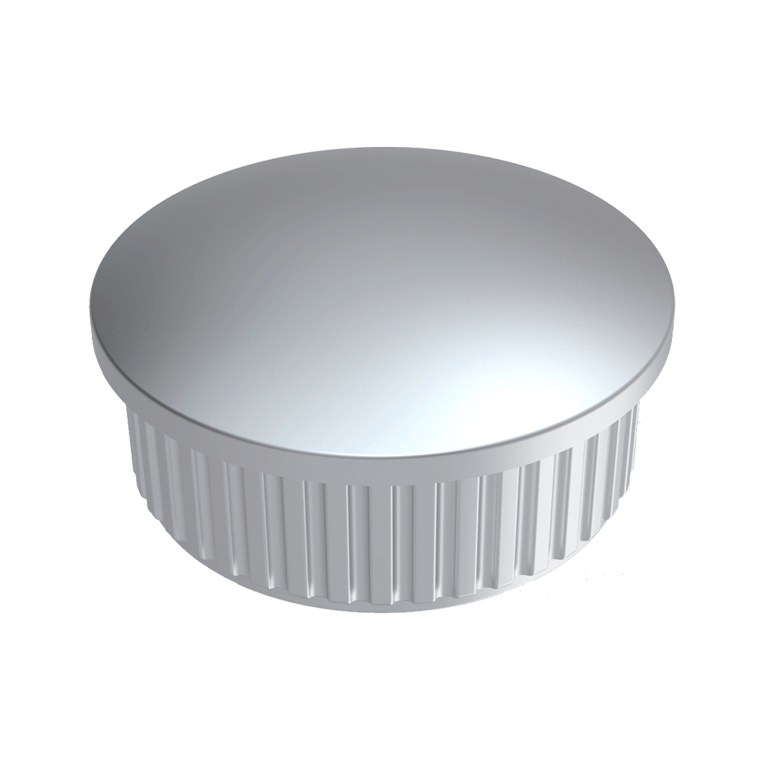

If you need this same piece in shiny or matt chrome, have a look at our family <b><a href='https://www.isc-sl.com/chrome-oval-tube-insert/mtglt/' target='_top'>MTGLT </a></b>.   Our <b>round chrome</b> MTGLC inserts are manufactured in <b>ABS</b>, an ideal material for the chrome plating process to which this product family is subjected. <br><br>
