Open closed universal bushing - ISC Plastic Parts

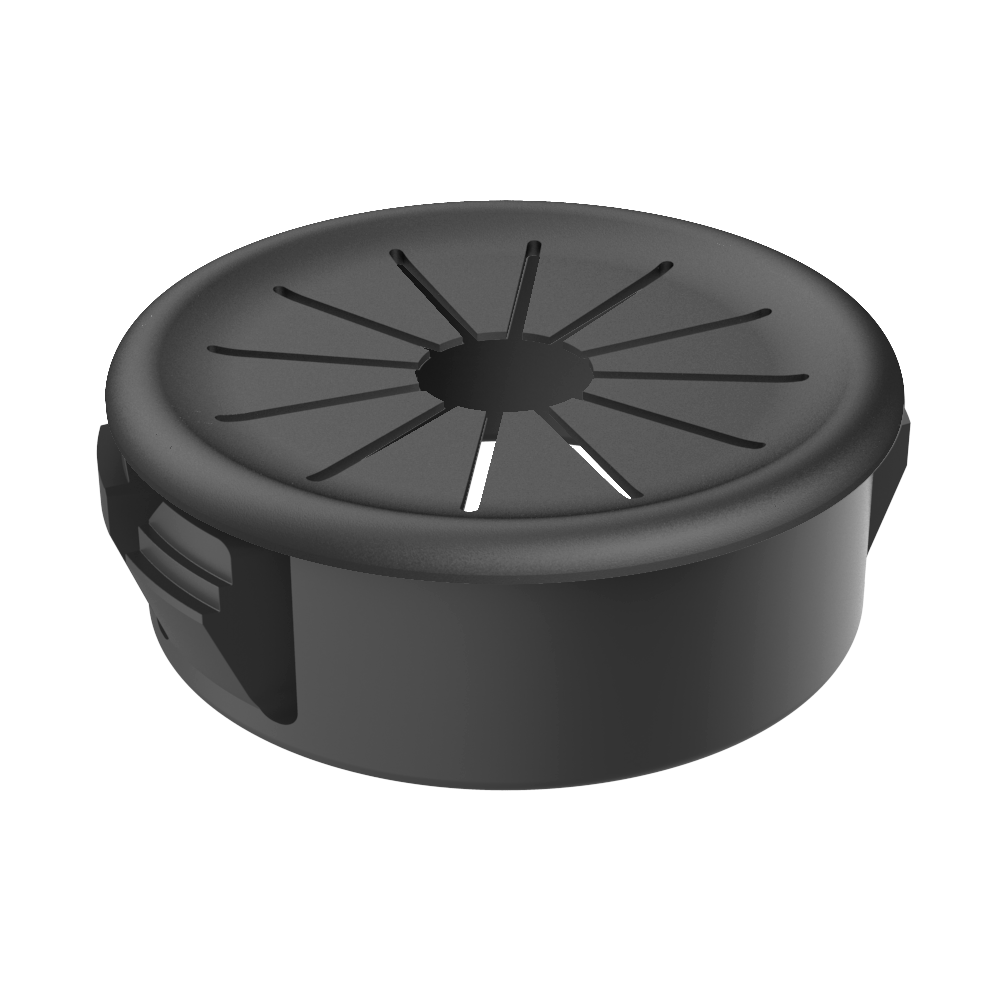

The split design of this open-close bushing allows side entry and encirclement of pre-assembled harnesses, capillary tubes or other assemblies.

Drawing PDF:
UL94: V2
IP:
RoHS:
Measures expressed in: Millimeters
Video:

Reference	Hole size (A)	Panel thickness (G)	D	L									More Info.

01012000144	12,70	3,20	14,30	10,30
01012000145	15,90	3,20	18,20	10,30
01012000146	19,00	3,20	20,60	10,30
01012000147	22,20	3,20	23,40	10,30
01012000148	25,40	3,20	27,00	10,30
01012000149	27,80	3,20	30,20	10,30
01012000170	31,80	3,20	37,30	10,30
01012000150	34,90	3,20	37,30	10,30
01012000151	38,10	3,20	40,10	10,70

If you are interested in our family HYPFA, you may be interested in these families as well:

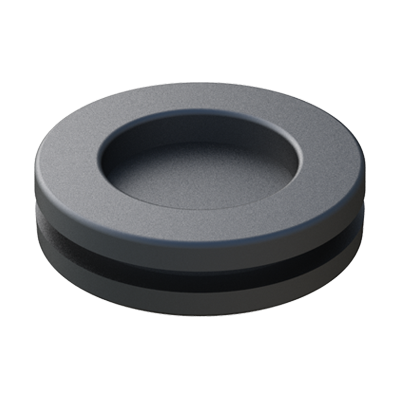

This universal and adjustable bushing is designed for many applications, for example to protect wire, cable, tubing or irregular shaped items from sharp, unfinished edges. The specially designed, resilient multiple supports absorb shock and vibration, and adjust to accept various diameters and shapes.

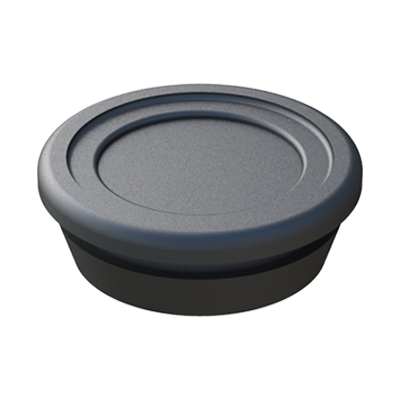

The membrane grommet handles an exceptional large cable span and is equipped with a pop-out membrane providing a wider range of applications than traditional membrane grommet. With the pop-out membrane you have a sealed cap but even after passing a cable you maintain a guaranteed IP67 standard. The grommet needs no further installation tools and works extremely well even if cables pass through at extreme angles.

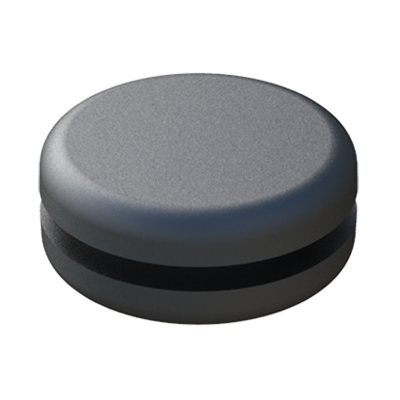

This semi-blind grommet is ideal to protect wires and cables passing through metal sheet. It installs instantly, it just has to simply snap into the hole. It also blanks holes for later insertion of cables etc..., It permits to lock into round or oval holes. Moreover, it protects against ingress of water and dust. Natural Rubber offers a good resistance to organic acids, alcohols and automotive brake fluid. <br> <i>*The references 02001000464 and 02001000910 have a design variation. The external diameter (E) is different on each side (E1).</i>

This semi-blind grommet is ideal to protect wires and cables passing through metal sheet. It installs instantly, it just has to simply snap into the hole. It also blanks holes for later insertion of cables etc., it permits to lock into round or oval holes. Moreover, it protects against ingress of water and dust.

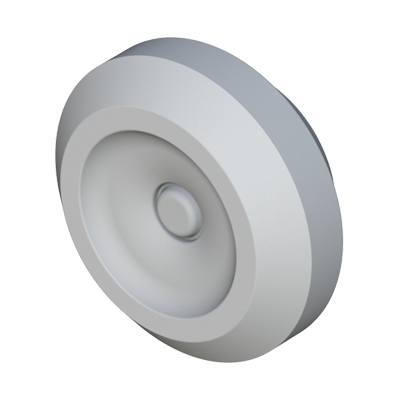

This semi-blind grommet is ideal to protect cables and wires passing through metal panels. Our semi-blind grommet is quick and simple to install.
