Our ribbed insert has a thin rounded head. If you are looking for a tube insert with a higher rounded head, please visit our family LGLR.
 RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
BIO Line: BIO LINE the following references are also available in environment friendly materials. Contact our Commercial Office for more information.


Reference
For Tube (D)
Tube Thickness
H
d
L
d1



More
Info.
00300400244 10 1,50 3,00 6,50 6,00 8,40
00300400245 12 1,50 4,00 8,00 10,00 11,20
00300400246 13 1,50 4,00 8,00 10,00 11,50
00300400247 14 1,50 3,50 9,50 9,10 13,00
00300400248 15 1,50 4,40 8,00 9,00 13,50
00300400249 16 1,50 4,40 10,00 10,00 14,80
00300400250 18 1,50 4,30 13,30 12,00 16,80
00300400251 18 1,50 6,30 13,30 12,00 16,80
00300400252 19 1,50 4,30 14,50 11,20 17,70
00300400253 20 1,50 5,00 15,50 11,80 19,00
00300400255 22 1,50 4,20 16,00 11,80 20,70
00300400256 25 1,50 5,00 16,00 11,80 23,50
00300400257 25 3,00 5,20 16,00 11,80 21,00
00300400258 25 1,50 8,00 19,20 11,50 23,30
00300400259 27 1,50 5,50 21,40 14,00 26,50
00300400260 28 1,50 5,00 21,50 14,00 27,00
00300400261 30 1,50 5,00 23,30 14,00 28,80
00300400262 32 1,50 5,00 26,30 14,60 30,20
00300400263 33 3,00 10,00 26,00 14,00 30,00
00300400264 34 1,50 6,50 27,00 14,50 31,40
00300400265 35 1,50 6,50 29,50 14,00 34,40
00300400266 36 1,50 6,50 29,30 13,90 34,50
00300400267 38 1,50 5,50 31,40 11,50 36,10
00300400268 40 1,50 6,00 33,60 12,00 38,30
00300400700 42 1,50 6,00 35,50 12,00 40,00
00300400701 45 1,50 5,00 38,00 15,00 43,70
00300400703 50 1,50 to 2,50 6,00 41,10 16,00 47,90
00300400704 55 1,50 6,00 47,50 14,00 53,70
00300400705 60 1,50 to 2,50 6,00 54,00 21,40 58,60
00300400706 80 1,50 to 2,50 5,50 68,00 22,00 78,00

If you are interested in our family LSL, you may be interested in these families as well:

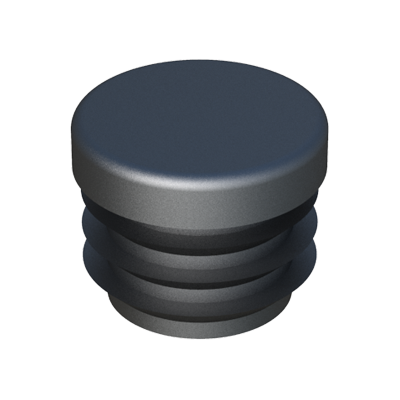

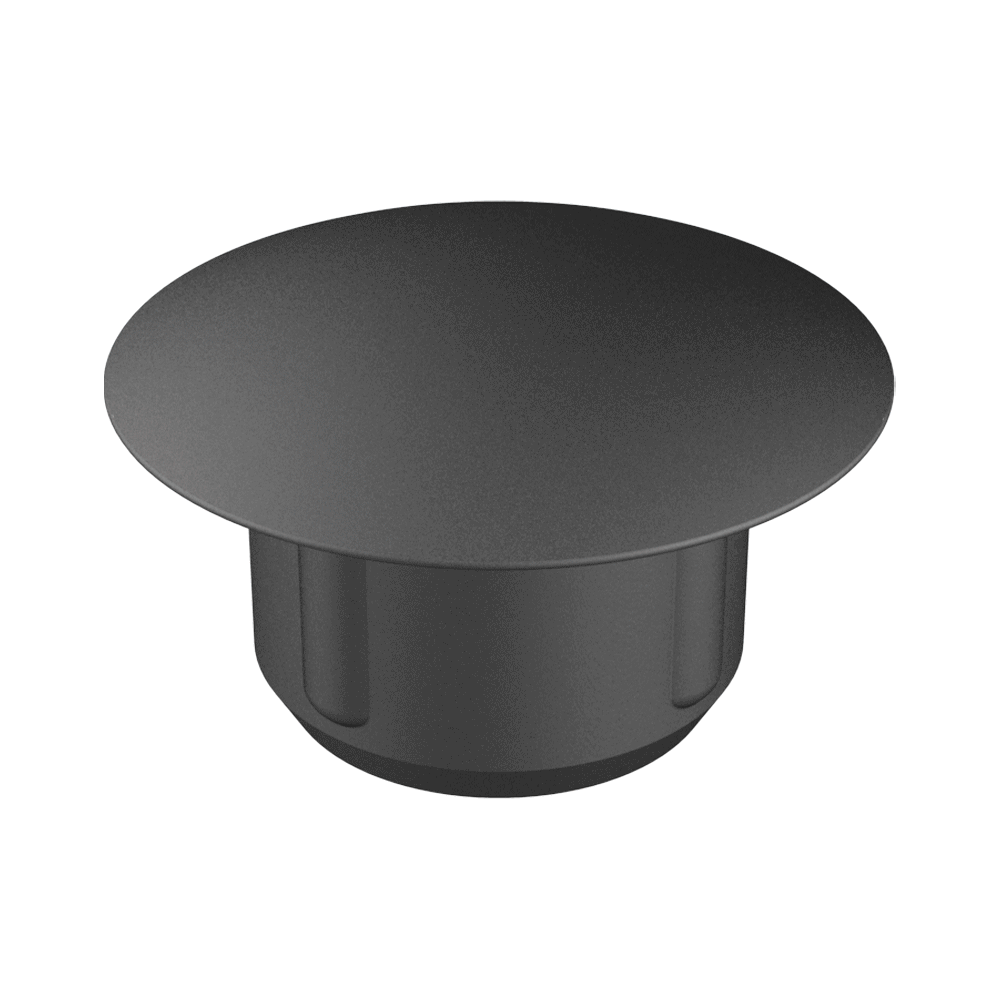

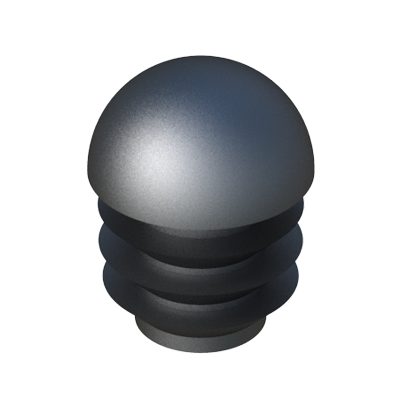

Our blanking plug of PE has been designed for protecting holes and finishing. It can be used as a glider for ending tubes. If you don't find the size you are looking for, visit our gliders group LGL.   Our ribbed tube insert has been designed with a dome head or mushroom head for round tubes.   Our standard ribbed insert has been designed for round tubes. It is also available for square tube: LE, rectangular tube: LF, oval tube: LFO, triangular tube: LFD and octogonal tube: SLJLO.
