Protective base for LHVB levelers Our LKB bases are specially designed to fit precisely onto LHVB levelers, offering effective protection against scratches, impacts, and wear from friction on delicate surfaces.
These caps are made of LDPE (low-density polyethylene) and are available for levelers with diameters of 30 mm, 45 mm, and 60 mm. Standard colors are black and natural, allowing for easy aesthetic integration with different types of machinery.

  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:


Reference
Ø base LHVB
D
H



More
Info.
00301500010 30,00 31,80 4,80
00301500011 45,00 47,40 6,00
00301500012 60,00 62,00 6,80

If you are interested in our family LKB, you may be interested in these families as well:

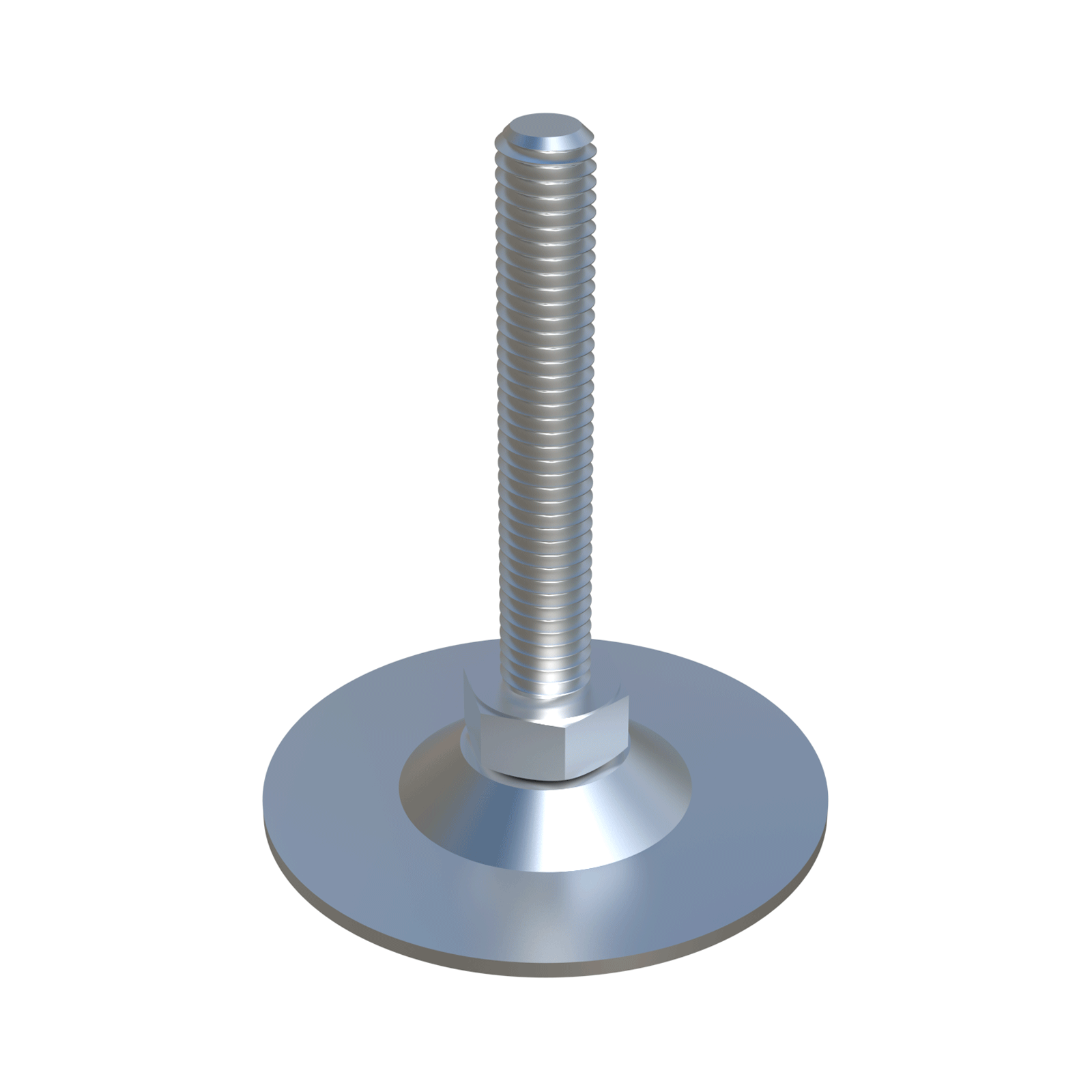

The LHVB adjustable feet are manufactured in <b>(ZCS)</b> Zinc Plated Steel and have a DIN 558-4.6-A2F <b>swivel</b> screw with a hexagonal base and an inclination range of between <b>10º and 13º</b>, according to reference. They offer a secure connection thanks to a T20 Torx screw (max. torque 3.4 Nm) that fixes the base with the screw. <br>
Regarding the base, there are two options depending on the reference: without holes and with two holes that allow it to be <b>screwed and firmly fixed to the ground</b> <i>(references ending in H)</i>.<br><br>
These feet can hold around <b>650 kg</b>, although we always recommend maintaining a safety margin. The feet must be adjusted without load and we do not recommend their use as sliders, but rather as static elements.<br><br>
If you need to protect the surface from possible scratches/bumps, we suggest attaching the protective cap <b><a href='
https://www.iscsl.co.uk/tilting-adjustable-foot-in-zinc-coated-steel/lkb/
'> LKB</a></b>, manufactured in <b>(LDPE)</b> Low-density polyethylene.<br><br>
We offer special configurations upon request:<br><br>
<i>* Other lengths and thread measurements</i>. <br>
<i>* Base in <b>(SS)</b> Stainless Steel</i>. <br>
<i>* <b>Hexagonal slot</b> for Allen key at the upper end of the thread</i>.
