Our LHVRA levelling foot with a PA6 (Polyamide 6) base features a hexagonal nut at the bottom of the thread to facilitate adjustment.

The thread has an inclination ranging from 19º to 29º, depending on the reference. The base is available with a glossy black or matt black surface; references ending in M correspond to the matt black version.

· Base material: PA6 (Polyamide 6)
· Thread material: ZCS (Zinc-coated steel)
· Axial static load: 3924 N

Variants with an Allen socket at the top of the thread are available. For the version without a hexagonal nut, please refer to our LHVRB family.


  RAL colors manufactured

Drawing PDF:
UL94:
IP:
RoHS:
Measures expressed in: Millimeters
Video:

LHVRA
LHVRA

Reference
Metric Thread (M)
L
D
H
Max. Tilting degree (W)
Fixed wrench (SW)



More
Info.
00301201136 M8 30,00 26,00 16,00 24º
02300500030 M8 30,00 40,00 17,50 19º
00301201138 M8 30,00 46,00 17,00 19º
02300500035 M8 30,00 56,00 17,00 24º
02300500038 M8 30,00 80,00 17,00 20º
00301201137 M8 33,00 30,00 18,00 22º
02300500020 M8 45,00 26,00 17,00 26º
02300500026 M8 45,00 31,00 17,00 22º
02300500031 M8 45,00 40,00 17,00 19º
02300500033 M8 45,00 46,00 17,00 19º
02300500036 M8 45,00 56,00 17,00 24º
02300500039 M8 45,00 80,00 17,00 20º
02300500021 M8 60,00 26,00 17,00 26º
02300500027 M8 60,00 31,00 17,00 22º
02300500032 M8 60,00 40,00 17,00 19º
02300500034 M8 60,00 46,00 17,00 19º
02300500037 M8 60,00 56,00 17,00 24º
02300500040 M8 60,00 80,00 17,00 20º
02300500022 M10 45,00 26,00 15,80 29º
02300500028 M10 45,00 30,00 17,50 21º
00301200327 M10 45,00 31,00 21,00 21º
00301200332 M10 45,00 40,00 18,00 22º
00301200338 M10 45,00 46,00 18,00 21º
00301200344 M10 45,00 56,00 21,00 21º
02300500023 M10 60,00 26,00 18,00 29º
02300500029 M10 60,00 30,00 19,00 21º
00301200329 M10 60,00 31,00 21,00 21º
00301200334 M10 60,00 40,00 18,00 22º
00301200340 M10 60,00 46,00 18,00 21º
00301200346 M10 60,00 56,00 21,00 21º
02300500024 M10 70,00 26,00 18,00 29º
00301200330 M10 70,00 31,00 18,00 21º
00301200335 M10 70,00 40,00 18,00 22º
00301200341 M10 70,00 46,00 18,00 21º
00301200347 M10 70,00 56,00 21,00 21º
02300500025 M10 100,00 26,00 18,00 29º
00301200331 M10 100,00 31,00 18,00 21º
00301200336 M10 100,00 40,00 18,00 22º
00301200342 M10 100,00 46,00 18,00 21º
00301200348 M10 100,00 56,00 21,00 21º

If you are interested in our family LHVRA, you may be interested in these families as well:

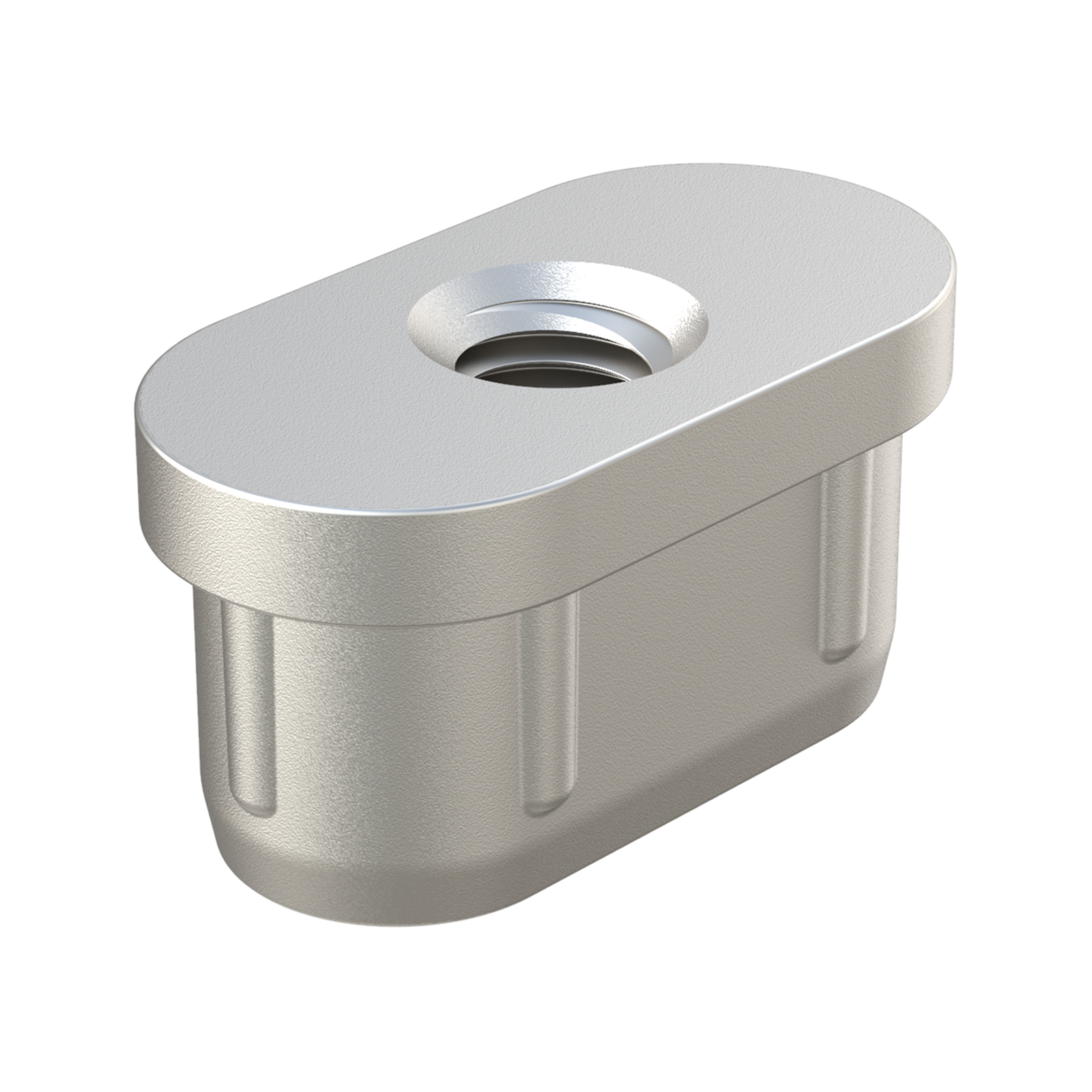

Our <b>reinforced and threaded</b> LJMZ inserts for rectangular tubes are made of <b>Zamak</b>. <b>Type 1</b> references have a rounded head and interior reinforcing ribs, which provide greater resistance to the piece, while <b>Type 2</b> references have a head without a radius and do not have interior reinforcement ribs. <br><br> Available for: Square tubes: <b><a href=' https://www.isc-sl.com/square-threaded-and-reinforced-tube-insert/ljm/'target='_top'>LJM</ a></b> / Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top' >LJMR</a></b> / Oval tubes: <b><a href='https://www.isc-sl.com/oval-threaded-reinforced-tube-insert/ljmo/'target ='_top'>LJMO</a></b>   Our threaded tube insert is manufactured in ZCS. It is also available for square tubes, please visit our family LJMS.   Our reinforced pipe ends with thread for round tubes have been designed for applications that must be highly resistant. The threaded insert is made of Nickel Plated Brass. It is also available in Stainless Steel. For other dimensions that do not appear in the list, contact us.   Our round reinforced tube inserts allow to assemble structures of tubes on levelling feet quickly. It has a nickel-plated brass threaded insert inside, which has been inserted during the injection process. It is also available for square tubes: JTPOA.<br>   Our <b>reinforced and threaded</b> LJM inserts for square tubes are made of a <b>Zamak</b>. <b>Type 1</b> references have a rounded head and interior reinforcing ribs, which provide greater resistance to the piece, while <b>Type 2</b> references have a head without a radius and do not have interior reinforcement ribs. <br><br> Available for: Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top'>LJMR</ a></b> / Rectangular tubes: <b><a href=' https://www.isc-sl.com/rectangular-threaded-and-reinforced-tube-insert/ljmz/'target='_top' >LJMZ</a></b> / Oval tubes: <b><a href='https://www.isc-sl.com/oval-threaded-reinforced-tube-insert/ljmo//'target ='_top'>LJMO</a></b>   Our threaded tube insert is manufactured in ZCS. It is also available for rectangular tubes, please visit our family LJMSZ.   .   The square threaded reinforced tube inserts JTPOA are made of <b>glass fiber reinforced polyamide</b> (PA6630%GF), a material that offers <i>excellent resistance</i>. While the <i>nuts</i> are made of <b>nickel-plated brass</b> (NB) and <b>304 stainless steel</b> (SS).<br> <br> These inserts are ideal for applications that require supporting high weights, as they reach resistances from <i>560 to almost 1,000 kilograms</i>.<br>   Our <b>reinforced and threaded</b> LJMZ inserts for oval tubes are made of a <b>Zamak</b>. <br><br> Available for: Square tubes: <b><a href=' https://www.isc-sl.com/square-threaded-and-reinforced-tube-insert/ljm/'target='_top'>LJM</ a></b> / Round tubes: <b><a href=' https://www.isc-sl.com/round-threaded-zamak-tube-insert/ljmr/'target='_top' >LJMR</a></b> / Rectangular tubes: <b><a href=' https://www.isc-sl.com/rectangular-threaded-and-reinforced-tube-insert/ljmz/'target ='_top'>LJMZ</a></b>
